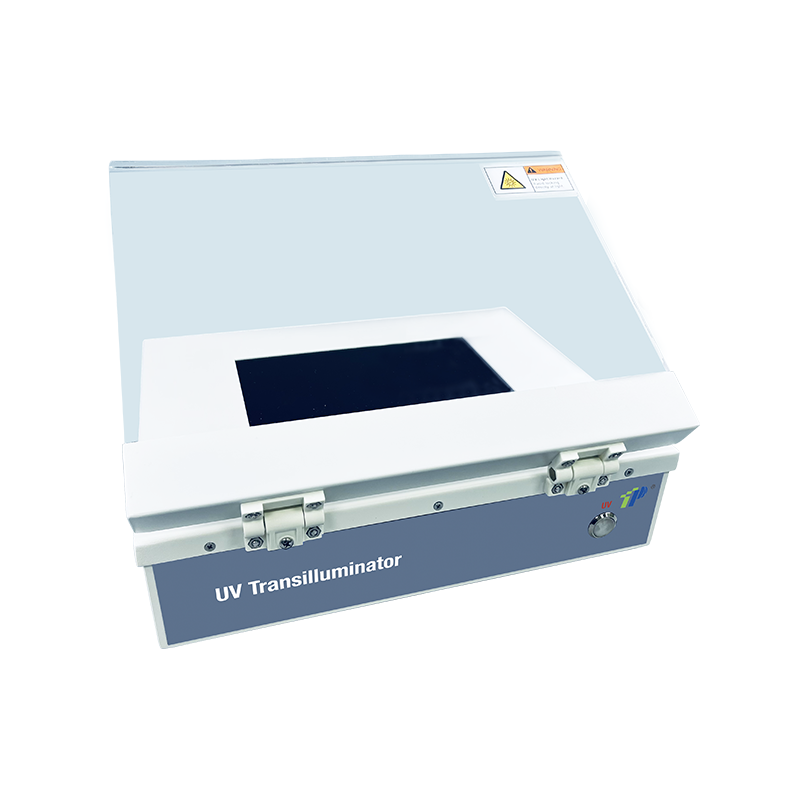

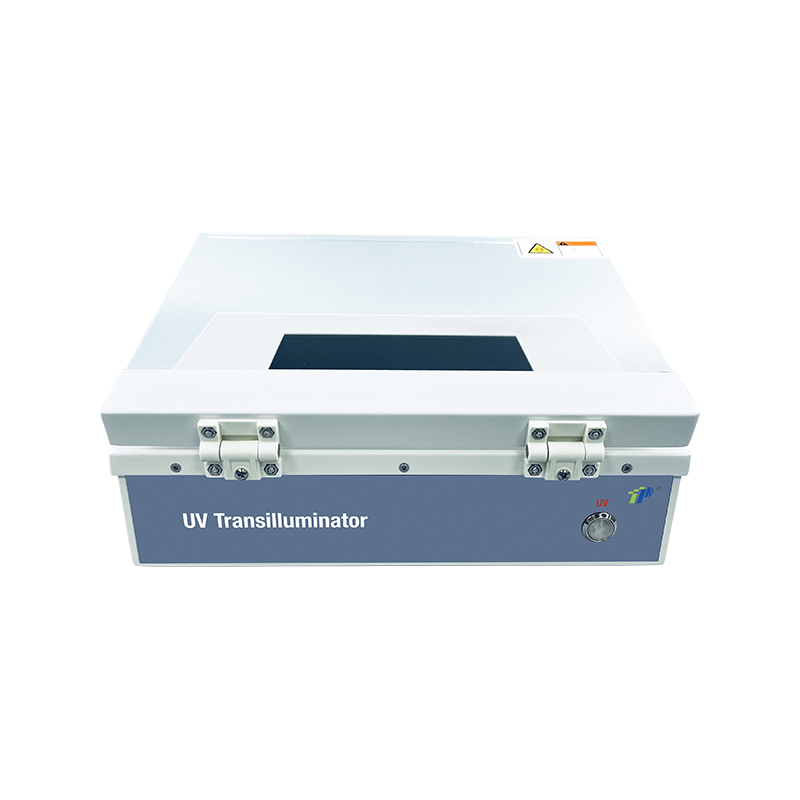

UV Transilluminator for DNA/RNA Gel Electrophoresis with 302nm Wavelength | Model T302I

UV Wavelength: 302nm (optional 254nm or 365nm)
Observation Area: 195mm × 145mm
UV Lamp Power: 8W × 6 lamps
Lamp Lifetime: >1,500 hours
Protective Cover Angle: Adjustable 0°–180°
Dimensions / Weight: 335×265×120mm / 5kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • T302I

  • TOP

Main Features:

The UV transilluminator is mainly used for observing the results of nucleic acid (DNA/RNA) gel electrophoresis and gel bands cutting. UV light of different wavelengths can be used to detect DNA and RNA electrophoresis gel samples.


Advantages:

1. Special UV filter glass, with good permeability and high sensitivity, which enhances the ability to capture weak band signals;

2. High-quality UV lamp tube, reasonable structural design, strong and uniform UV rays, and excellent fluorescence effect;

3. Standard 302nm (optional 254nm or 354nm) UV wavelength lamp tube;

4. Precise sealing structure effectively reduces the possibility of gel contamination and internal damage caused by leakage;

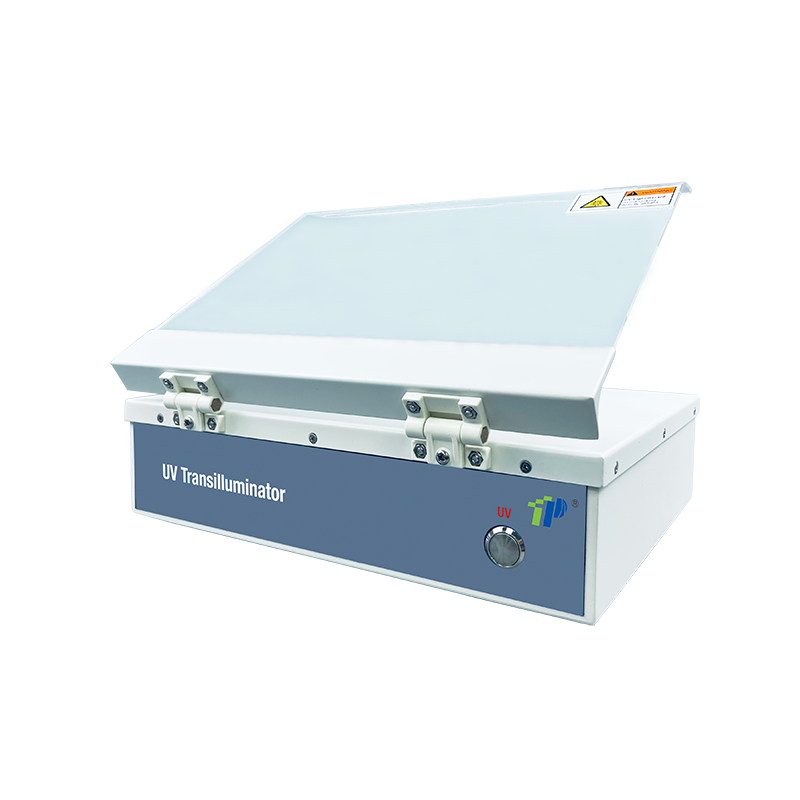

5. The protection cover can be adjusted and positioned arbitrarily within 0°~180° to ensure optimal UV protection;

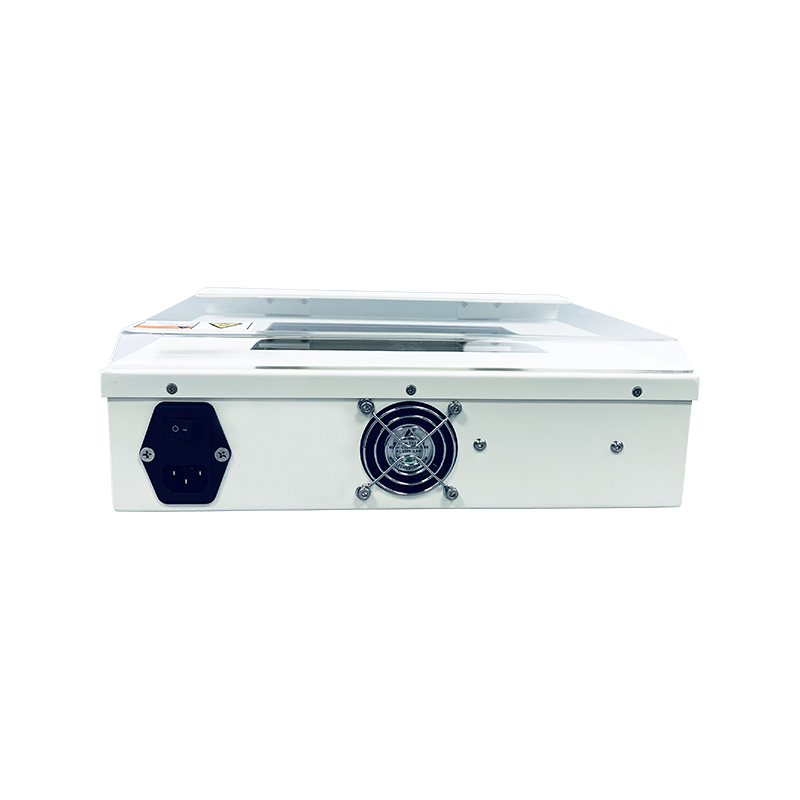

6. Comes with cooling fans to extend the service life of the machine.


Machine parameters:


Model

T302I

Observation area

L195mm×W145mm

Power

8W×6

UV lamp lifetime

>1,500h

Transmission wavelength

302nm (standard)

Dimension

L335×W265×H120mm

Weight

5kg

Voltage/Frequency

110V/220V;50/60Hz
