Blue LED Transilluminator for Nucleic Acid and Protein Gel Imaging, 470nm, Model T470I
You are here: home » Products » Life Science Instruments » Transilluminators » Blue LED Transilluminator for Nucleic Acid and Protein Gel Imaging, 470nm, Model T470I

Product Category

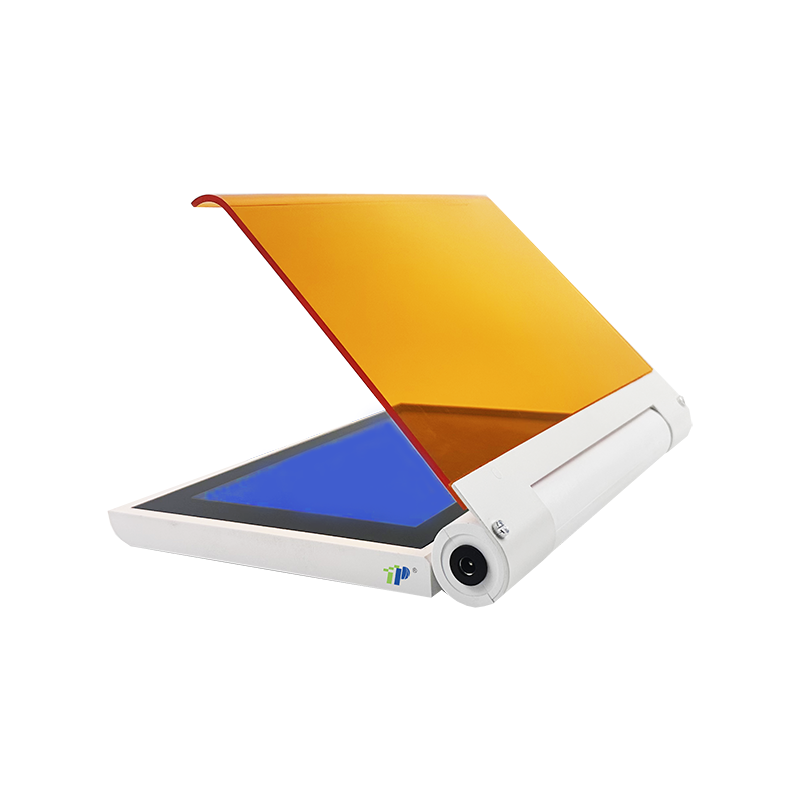

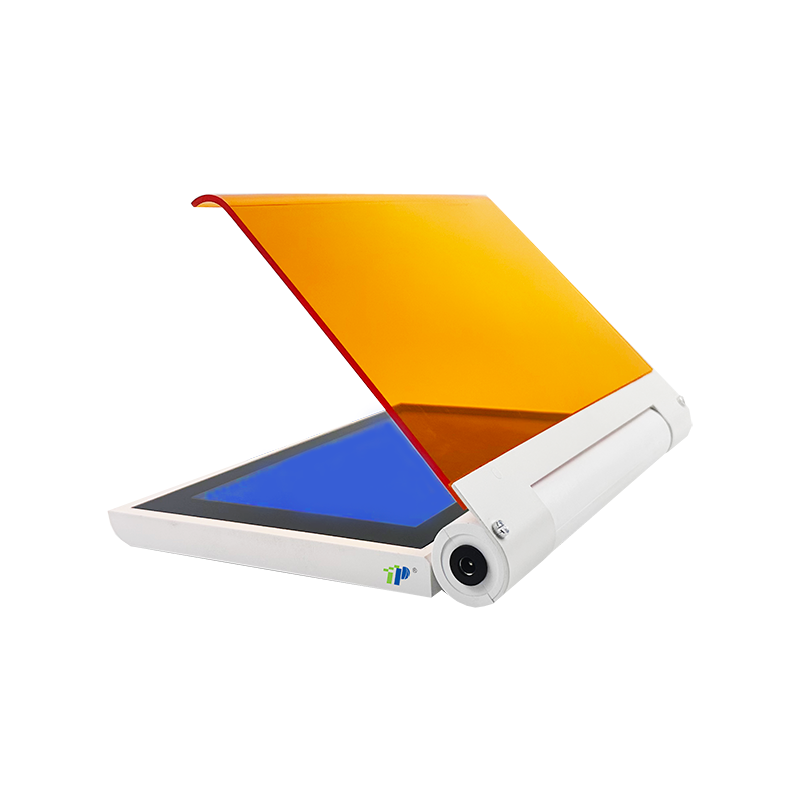

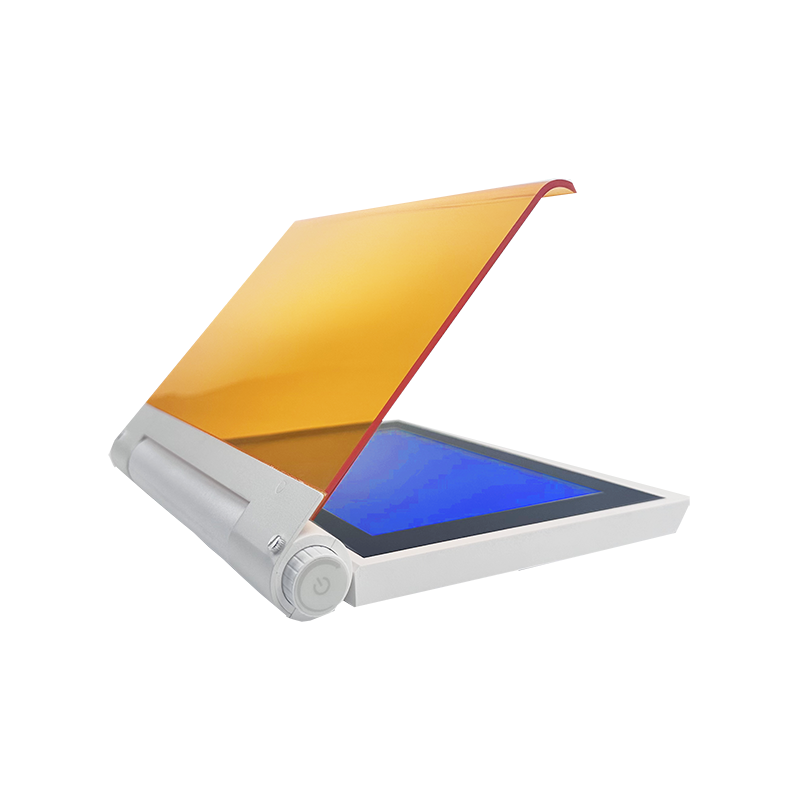

Blue LED Transilluminator for Nucleic Acid and Protein Gel Imaging, 470nm, Model T470I

Observation Area: 210 × 120 mm
LED Source: Bottom Blue LED, Max Emission 470 nm
LED Lifetime: >50,000 hours
Power Supply: 100–240V, 50/60 Hz (12V 1A Adapter)
Dimensions: 265 × 195 × 30 mm
Weight: 1.0 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • T470I

  • TOP

Main Features:

The blue LED transilluminator is a high-quality blue light transmission device, which is widely used for the observation of nucleic acid and protein gel staining. Blue LED light source, with amber filter cover, and use with nucleic acid-safe dyes with excitation wavelength of 450~495nm, can achieve perfect gel viewing and cutting effects without protective light filtering goggles.


● Unique bottom light-emitting, evenly excite gels, high brightness, low background interference

● Precise sealing structure effectively reduces the possibility of gel contamination

● High-quality blue LED light source, low power consumption, more than 50,000h service life

● Blue LED has no harmful to human body or gel samples

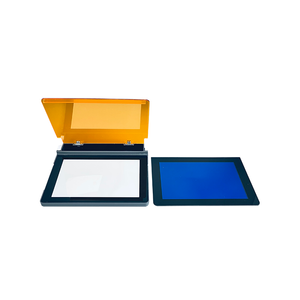

● Include a fold-able darkroom for gel bands photography and precision gel cutting knife» Light intensity can be adjusted and memorized, no need to repeatedly setting

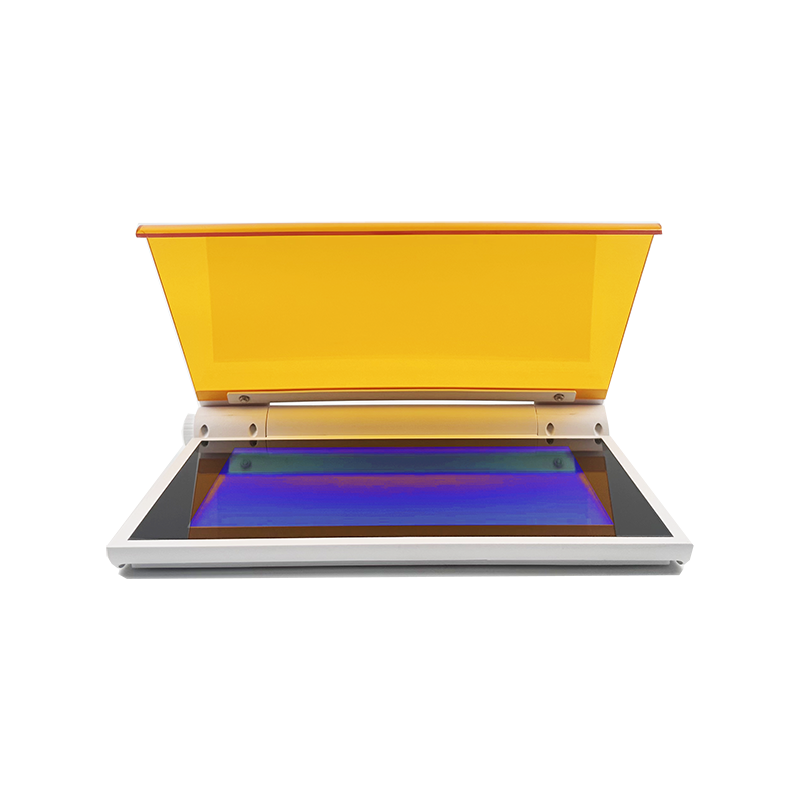

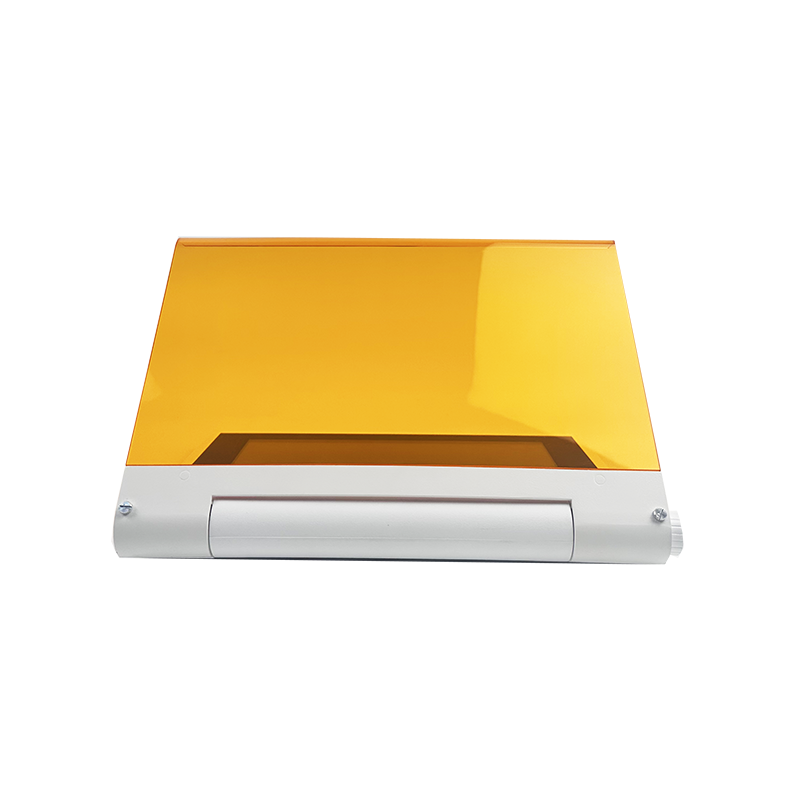

● Amber cover filter can be rotated at multiple angles to facilitate observation and gel cutting

● Widely applications:Compatible with most safe fluorescent dyes include SYBR Safe,SYBR Green l,SYBR Gold, Gelite Green,SYPRO Orange, GelGreen, Coomassie Fluor orange stains、SYPRO Tangerine etc.


Machine parameters:


Model

T470I

Dimension

L265xW195xH30mm

Opservation area

L210xW120mm

Weight

1000g

Power suppy

100~240V 50/60Hz

Power adapter

12V 1A

LED source

Bottom LED light module

LED lifetime

>50,000h

Max emission wavelength

470nm

Auto shutdown time

5min
