MDF-86V188E
Unique insulated inner door design ult deep freezer for sale
MDF-86V188E
Product Description
This product is specially designed and manufactured for long term storage of various biological product,including viruses, germs.erythrocytes, leucocytes and cutis. Applications can be found in blood banks, hospitals, epidemic prevention services, and research institutes, laboratories in electronic and chemical plants. bio-logical engineering institutes and marine fishery companies.
Features
Filed proven reliability

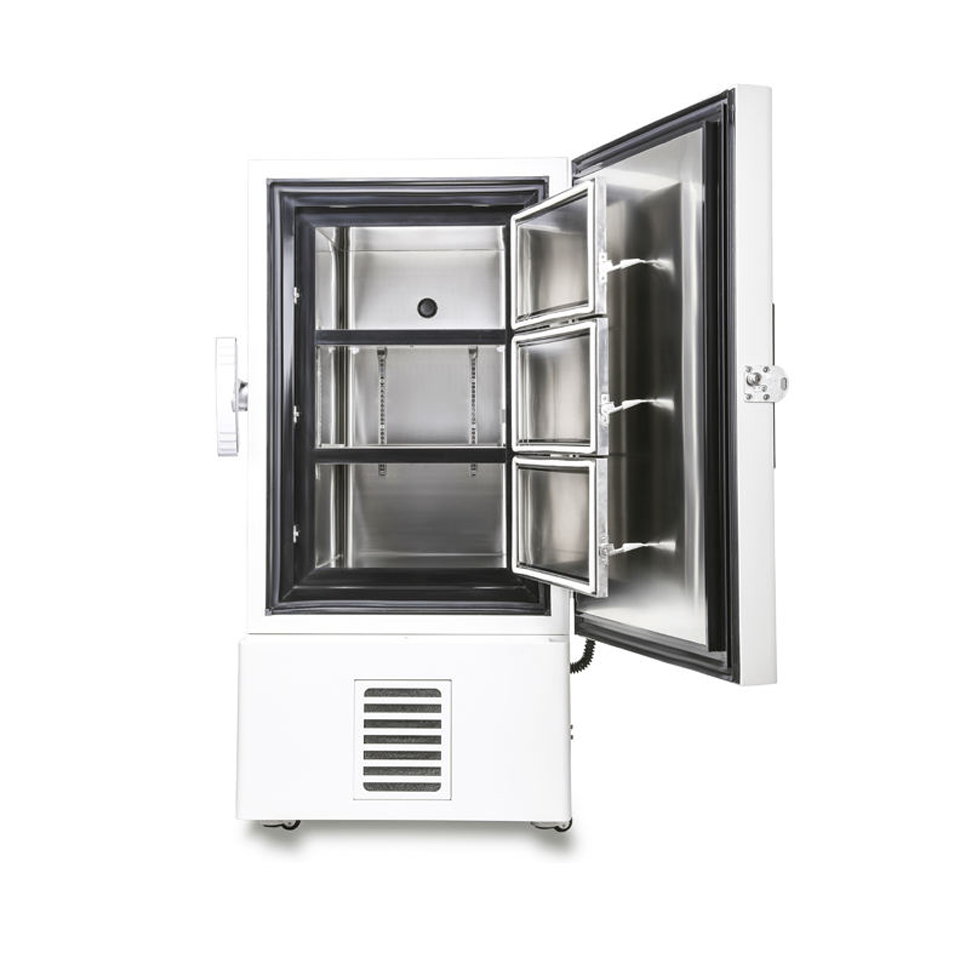

•Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
•Specialized control system design for a well-balanced operation of cascade refrigeration system. •Positive filed proven reliability record.
Safety
•Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient.
•Capable of producing two types of alarm outputs: audible buzzer and visible flashing light. •Door open feature standard and USB port for temperature date downloading standard on upright models.
•Remote alarm contacts.
Installation and Application
•Wide rage operating voltage system from 185V to 260v designed to allow units installed in areas with poor voltage condition Suitable for 10℃ to 32℃ambient temperature
Energy saving
•Unique door seal design for the minimum loss of cold temperature during a door opening. •High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.
Key design features
•Microprocessor-controlled system designed for controlled rage of -40℃ to -86℃ for cabinet space with 1℃ increment
•Settable high temperature and low temperature alarms.
•Automatic clean-filter alarm and sensor error alert.
•Adjustable storage shelf height
•Optional temperature recorder. storage racks and storage box
Model | MDF-86V188E |
Temperature Range | –40℃~–86℃ |
Cooling | –86℃(Ambient temp.35℃) |
External Size(W×D×H) | 830*810*1607.5(mm) |
Internal size(W×D×H) | 465*465*830(mm) |
Effect Capacity | 188L |
Net Weight | 150kg |
Rated Power | 610W(220V,50Hz) |
Insulation Layers | PU whole foamed |
External Material | Color sprayed steel |
Internal Material | SUS |
Shelves | 1layer,adjustable,SUS |
Outer door | 1 |
Inner door | 1 |
Lock | 1 |
Test Hole | 1,diameter 18mm |
Compressor | 1,all enclosed |
Refrigerant | HFC |
Alarm System | Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm |
Accessory | Keys |
