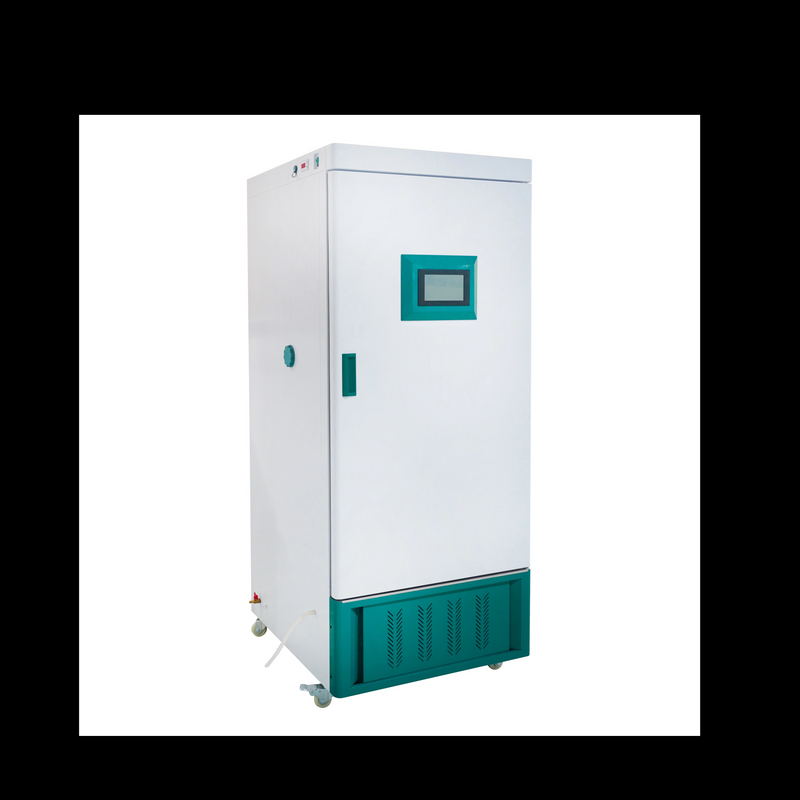

FPG450
TOP
For the illumination cultivation of microorganisms, cell tissues, seedlings, insects, and small animals under precise humidity control.
Product Features:
Double-layer door structure. The inner door is made of high-quality tempered glass for easy sample observation. The door is equipped with a controller, and the control panel uses a 7.0-inch color LCD touch screen. Illumination is multi-stage adjustable, allowing for free combination programming of 30 segments of temperature, humidity, and illumination parameters. Query historical temperature and humidity data curves. Features include USB data storage and export, and scheduled startup/shutdown functionality. (Remote control is optional.)
Utilizes a top-lighting design with wide-spectrum LED light sources, minimizing light interference between layers. Features high illumination intensity, low heat radiation, and an ultra-long service life. Shelves are removable, and the inter-shelf spacing is adjustable.
Built-in humidification system produces fine mist particles for good temperature uniformity and low water consumption. Features automatic water intake and low water level alarm. Balanced temperature control method, using a return valve and expansion valve to control evaporator temperature, avoiding frequent compressor starts and extending compressor service life.
For the illumination cultivation of microorganisms, cell tissues, seedlings, insects, and small animals under precise humidity control.
Product Features:
Double-layer door structure. The inner door is made of high-quality tempered glass for easy sample observation. The door is equipped with a controller, and the control panel uses a 7.0-inch color LCD touch screen. Illumination is multi-stage adjustable, allowing for free combination programming of 30 segments of temperature, humidity, and illumination parameters. Query historical temperature and humidity data curves. Features include USB data storage and export, and scheduled startup/shutdown functionality. (Remote control is optional.)
Utilizes a top-lighting design with wide-spectrum LED light sources, minimizing light interference between layers. Features high illumination intensity, low heat radiation, and an ultra-long service life. Shelves are removable, and the inter-shelf spacing is adjustable.
Built-in humidification system produces fine mist particles for good temperature uniformity and low water consumption. Features automatic water intake and low water level alarm. Balanced temperature control method, using a return valve and expansion valve to control evaporator temperature, avoiding frequent compressor starts and extending compressor service life.
Parameter Category | Parameter Item | Specification / Description |
Air Circulation | Forced convection, rear micro-perforated plate for front air delivery | |
Performance | Temperature Range | Without light: 5–65°C; With light: 10–65°C |
Temperature Resolution | 0.1°C | |
Temperature Fluctuation | ±0.5°C | |
Temperature Uniformity | ±1.0°C | |
Illuminance (LX) | Full spectrum 0-30,000 LX, multi-stage adjustable | |
Humidity Control Range | 40%–95% RH | |
Humidity Fluctuation | ±5% RH | |
Construction | Inner Chamber | SUS304 Stainless Steel plate |
Outer Casing | Cold-rolled steel plate, electrostatic spray coating | |
Insulation Layer | Polyurethane foam | |
Illuminated Shelves | Standard 4 layers, full-spectrum LED light panels | |
Heater | Stainless steel heating tube | |
Rated Power | 2.5 kW | |
Compressor | Imported brand air-cooled hermetic compressor | |
Refrigerant | R134A | |
Defrost System | Automatic | |
Humidity Control Method | Automatic | |
Gas Port | Standard gas port interface, outer diameter 10mm | |
Controller | Temperature Control Method | 30-segment program |
Temperature Setting Method | Touchscreen setting | |
Temperature Display | 7.0-inch true color touchscreen display | |
Operation Modes | Constant value operation, timed operation, auto stop/scheduled start, program operation | |
Program Mode | Standard | |
Sensors | Pt100 temperature sensor, imported chip humidity sensor | |
Additional Functions | Scheduled startup/shutdown, historical temp/humidity data curve query, USB data storage/export, deviation correction, menu/key lock, power failure compensation, power failure memory, system self-diagnosis, intelligent defrost | |
Safety Devices | Over-temperature protection automatically cuts off heating; prolonged under-temperature protection cuts off refrigeration system to protect samples; system self-diagnosis | |
Specifications | Internal Dimensions (WDH mm) | 630 * 670 * 1100 |
External Dimensions (WDH mm) | 824 * 1046 * 1860 | |
Packing Dimensions (WDH mm) | 923 * 1183 * 2110 | |
Chamber Volume | 450 L | |
Shelf Load Capacity | 15 kg | |
Shelf Spacing | 120 mm | |
Power Supply (50/60Hz), Rated Current | AC220V / 5.5A | |
Net Weight / Gross Weight (kg) | 310 / 350 | |
Standard Accessories | Shelves | 4 pieces |
Shelf Supports | 8 pieces | |
Optional Accessories | Additional illuminated shelves, USB communication interface & PC software, printer, WiFi control module, CO₂ concentration control |
