PN-S Series
TOP
Product feature:
Double password protection, user password protection, initial password factory mode password protection.
The electriIt has a scheduled standby and scheduled automatic shutdown function. When the shutdown time is up, it will automatically stop all output and enter the shutdown mode.
Complete management functions such as ultrapure water production, system water intake, and system circulation.
Complete water-free protection, high-pressure water full protection functions and fault alarm functions.
Ultra low radiation. Adopt advanced electromagnetic compatibility design
Complete historical alarms, historical water records and consumable life management functions.
The chassis adopts plastic spraying technology and has a side door design. The filtration system adopts an 11-inch Rotary quick replacement filter column for easier replacement and maintenance, and has the function of upgrading water quality and quantity.
Backlit LCD display, online monitoring, can simultaneously display UP resistivity value and equipment operating status indication.
Menu-style operation can modify and set multiple measurement parameters; it has multiple operating status displays and indicator light prompts, which can promptly reflect the equipment's operating status, such as high-pressure shutdown, low-pressure alarm, water-full shutdown, etc.
RO water ultrapure water has an alarm when the water quality exceeds the standard, and automatically prompts for filter element replacement. You can set the water intake time by yourself; touch the button to get water, and the RO UP water indicator light will automatically prompt
Equipped with a portable test pen, you can test TDS content, conductivity, and water temperature anytime and anywhere.
Dual-wavelength UV ultraviolet germicidal lamp can effectively sterilize and reduce TOC. The original imported 5000D ultrafiltration component can effectively remove endotoxin and heat source (optional).

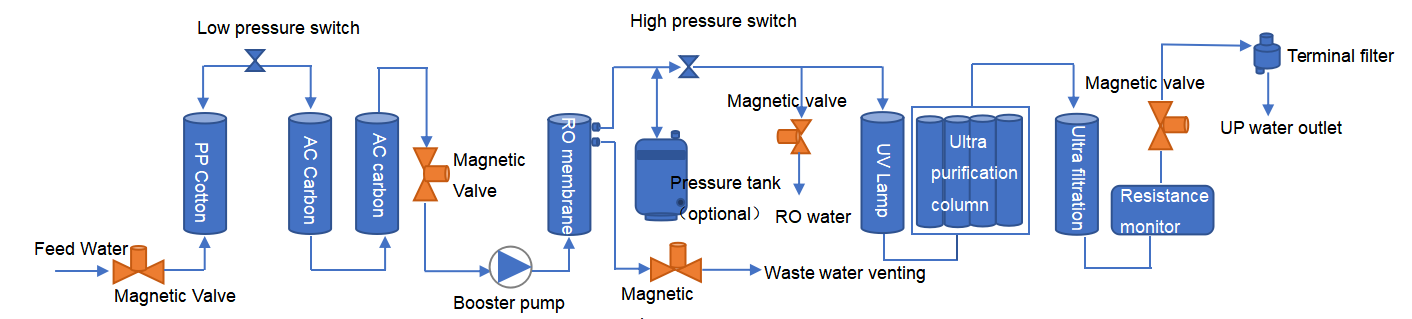

Process
Product feature:
Double password protection, user password protection, initial password factory mode password protection.
The electriIt has a scheduled standby and scheduled automatic shutdown function. When the shutdown time is up, it will automatically stop all output and enter the shutdown mode.
Complete management functions such as ultrapure water production, system water intake, and system circulation.
Complete water-free protection, high-pressure water full protection functions and fault alarm functions.
Ultra low radiation. Adopt advanced electromagnetic compatibility design
Complete historical alarms, historical water records and consumable life management functions.
The chassis adopts plastic spraying technology and has a side door design. The filtration system adopts an 11-inch Rotary quick replacement filter column for easier replacement and maintenance, and has the function of upgrading water quality and quantity.
Backlit LCD display, online monitoring, can simultaneously display UP resistivity value and equipment operating status indication.
Menu-style operation can modify and set multiple measurement parameters; it has multiple operating status displays and indicator light prompts, which can promptly reflect the equipment's operating status, such as high-pressure shutdown, low-pressure alarm, water-full shutdown, etc.
RO water ultrapure water has an alarm when the water quality exceeds the standard, and automatically prompts for filter element replacement. You can set the water intake time by yourself; touch the button to get water, and the RO UP water indicator light will automatically prompt
Equipped with a portable test pen, you can test TDS content, conductivity, and water temperature anytime and anywhere.
Dual-wavelength UV ultraviolet germicidal lamp can effectively sterilize and reduce TOC. The original imported 5000D ultrafiltration component can effectively remove endotoxin and heat source (optional).
Process

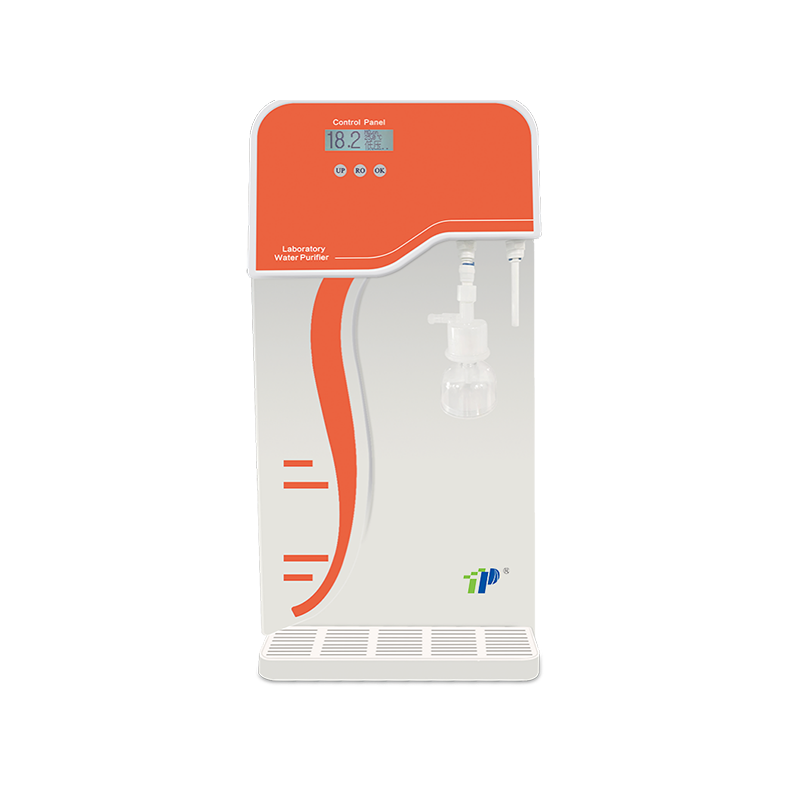

PN-S series ultrapure water machine | ||||
Type classification | Standard | Low Endotoxin | Low TOC | Comprehensive |
The machine model | PN-S | PN-S-F | PN-S-V | PN-S-VF |
Water making speed | 10L/H 20 L/H 30L/H | |||
The water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃ | |||
RO water Parameter | ||||
Ion rejection rate | 97%-99% | |||
Organic matter rejection rate | >99% when MW>200 Dalton | |||
Particle and bacterial rejection | > 99% | |||
UP water Parameter(ASTM TYPE I grade water) | ||||
Resistivity (25℃) | 18.25 M Ω. cm @ 25 ℃ | |||
Heavy metal ion | < 0.01 ppb | |||
Total organic carbon (TOC) * | <10 ppb | <3 ppb | ||
bacteria | < 1 cfu/ml *(with terminal filter) | |||
Particulate matter (> 0.1 microns) | <1/ml | |||
Pyrogen (endotoxin) | N/A | < 0.001 Eu/ml | N/A | < 0.001 Eu/ml |
Ribonuclease (RNases) | N/A | <1pg/ml | N/A | <1pg/ml |
Deoxyribonucleases | N/A | <5pg/ml | N/A | <5pg/ml |
Application | All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment | PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute | Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, High sensitivity ICP/MS, environmental monitoring, biochip development, trace organic matter analysis | Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing |
Electrical requirements | 100-240V, 50/60Hz, 48-72W | |||
Dimensions | 312×475×475mm, about 30Kg | |||
The system configuration | Host machine (including 1 set of purification columns) + 12L external pressure storage tank + TDS pen + accessory bag |
Filter function
Filter element | Function | Replace cycle |
PP cotton filter | remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc. | About 4-6 month |
Activated carbon filter | remove color, odor, residual chlorine and heavy metals | About 4-6 month |
Reverse osmosis membrane | filter out <1nm pollutants, ions, particles | About 1-2 years |
Ultra-purification column | ion exchange resin bed, H+ and OH- ion removal | About 1000 liter |
Dual wavelength UV lamp | sterilization device, decomposition and photo oxidation OC, lower TOC (*-V,-VF) | About 9000 hours |
0.2μm terminal filter | final removal for < 0.2μm bacteria | About 2-3 years |
Ultra filtration membrane | remove pyrogen,RNase, DNase(*-F,-VF) | / |
PN-S series ultrapure water machine | ||||
Type classification | Standard | Low Endotoxin | Low TOC | Comprehensive |
The machine model | PN-S | PN-S-F | PN-S-V | PN-S-VF |
Water making speed | 10L/H 20 L/H 30L/H | |||
The water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃ | |||
RO water Parameter | ||||
Ion rejection rate | 97%-99% | |||
Organic matter rejection rate | >99% when MW>200 Dalton | |||
Particle and bacterial rejection | > 99% | |||
UP water Parameter(ASTM TYPE I grade water) | ||||
Resistivity (25℃) | 18.25 M Ω. cm @ 25 ℃ | |||
Heavy metal ion | < 0.01 ppb | |||
Total organic carbon (TOC) * | <10 ppb | <3 ppb | ||
bacteria | < 1 cfu/ml *(with terminal filter) | |||
Particulate matter (> 0.1 microns) | <1/ml | |||
Pyrogen (endotoxin) | N/A | < 0.001 Eu/ml | N/A | < 0.001 Eu/ml |
Ribonuclease (RNases) | N/A | <1pg/ml | N/A | <1pg/ml |
Deoxyribonucleases | N/A | <5pg/ml | N/A | <5pg/ml |
Application | All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment | PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute | Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, High sensitivity ICP/MS, environmental monitoring, biochip development, trace organic matter analysis | Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing |
Electrical requirements | 100-240V, 50/60Hz, 48-72W | |||
Dimensions | 312×475×475mm, about 30Kg | |||
The system configuration | Host machine (including 1 set of purification columns) + 12L external pressure storage tank + TDS pen + accessory bag |
Filter function
Filter element | Function | Replace cycle |
PP cotton filter | remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc. | About 4-6 month |
Activated carbon filter | remove color, odor, residual chlorine and heavy metals | About 4-6 month |
Reverse osmosis membrane | filter out <1nm pollutants, ions, particles | About 1-2 years |
Ultra-purification column | ion exchange resin bed, H+ and OH- ion removal | About 1000 liter |
Dual wavelength UV lamp | sterilization device, decomposition and photo oxidation OC, lower TOC (*-V,-VF) | About 9000 hours |
0.2μm terminal filter | final removal for < 0.2μm bacteria | About 2-3 years |
Ultra filtration membrane | remove pyrogen,RNase, DNase(*-F,-VF) | / |
