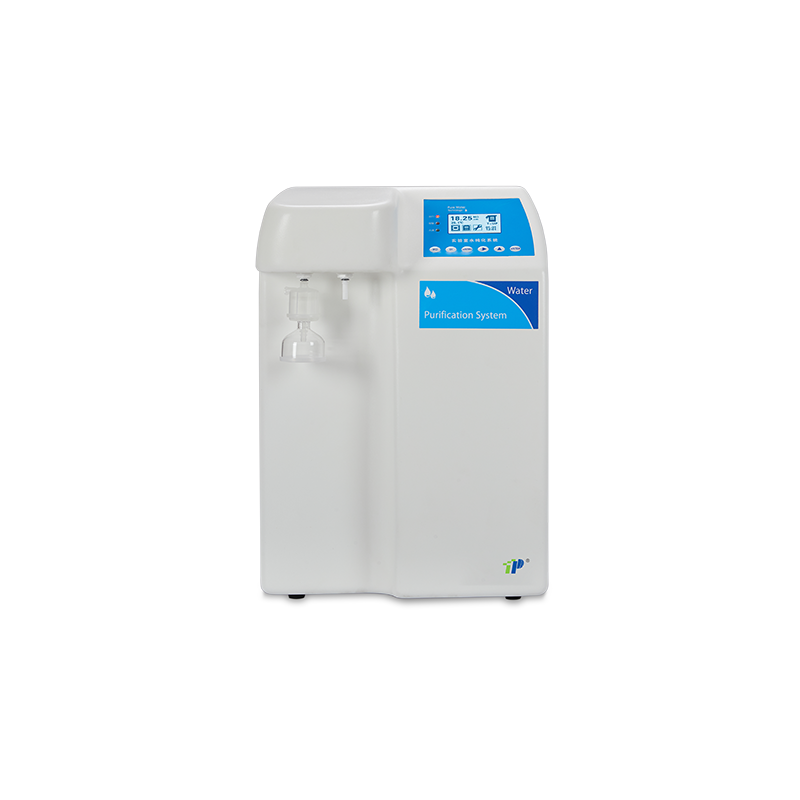

Ultrapure Water Purification System PDT-D / PDT-DUF / PDT-DUV / PDT-DFV – 18.25MΩ·cm, TOC <3ppb, Endotoxin-Free, RNase/DNase-Free
Output capacity: Up to 2.0L/Min
Feed water requirements: Distilled water, DI water or RO water, temperature5-45°(water pressure:1atm)
Resistivity (25°C): 18.25MΩ.cm
Feed water requirements: Distilled water, DI water or RO water, temperature5-45°(water pressure:1atm)
Resistivity (25°C): 18.25MΩ.cm
| Quantity: | |
|---|---|
-
PDT-D Series
-
TOP
| Item | PDT-D | PDT-DUF | PDT-DUV | PDT-DFV |
| Output capacity | Up to 2.0L/Min | |||
| Feed water requirements | Distilled water, DI water or RO water, temperature5-45°(water pressure:1atm) | |||
| UP Ultrapure water quality | ||||
| - Resistivity(25°C) | 18.25MΩ.cm | |||
| - Heavy metal ion | <0.01ppb | |||
| - TOC* | <10ppb | <10ppb | <3ppb | <3ppb |
| - Bacteria | <0.01cfu/ml | <0.01cfu/ml | <0.01cfu/ml | <0.01cfu/ml |
| - Particle(>0.22μm) | <1/ml | |||
| - Pyrogen(Endotoxin) | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml |
| - RNases | N/A | <1pg/ml | N/A | <1pg/ml |
| - DNases | N/A | <5pg/ml | N/A | <5pg/ml |
| DI Deionized water quality | ||||
| - Resistivity(25°C) | ≥15MΩ.cm | |||
| Dimension and weight | Width×Depth×Height: 365×525×545mm / Weight: about 23Kg | |||
| Electrical requirements | 100-240V,50/60Hz | |||
| Power | 72W/120W | |||
| Standard configuration | Main system (including 1 full set resin cartridges) + accessories bag | |||
