Ultra Micro UV-Visible Spectrophotometer – 0.5µL Sample, Dual Detection Path, 190-900nm, Touchscreen, Built-in Printer
You are here: home » Products » Spectrophotometers » UV-Vis Spectrophotometers » Ultra Micro UV-Visible Spectrophotometer – 0.5µL Sample, Dual Detection Path, 190-900nm, Touchscreen, Built-in Printer

Product Category

loading

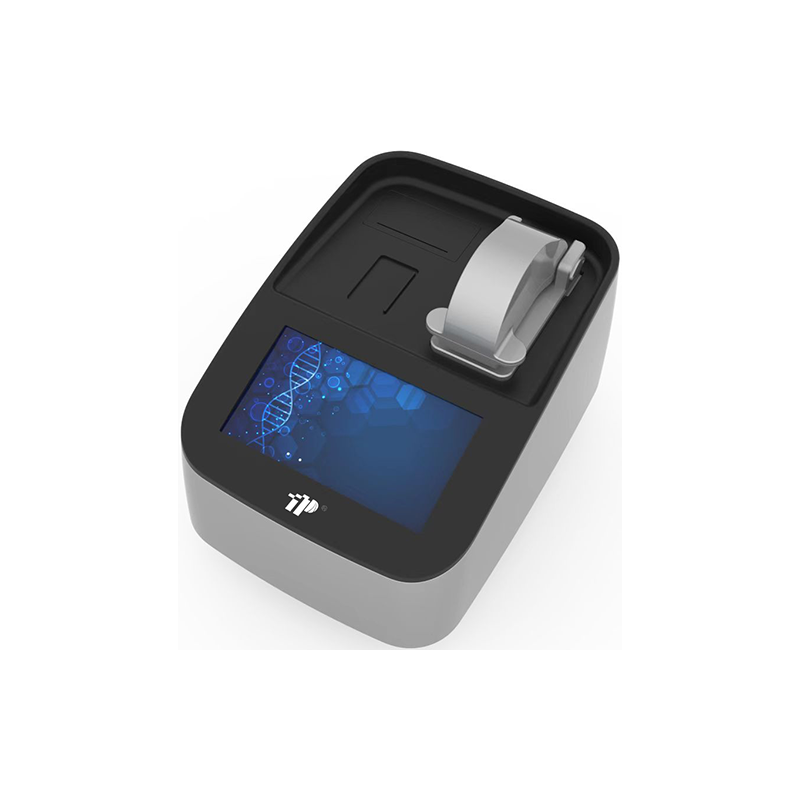

Ultra Micro UV-Visible Spectrophotometer – 0.5µL Sample, Dual Detection Path, 190-900nm, Touchscreen, Built-in Printer

  • Model: PUL-4000N
  • Minimum sample size: 0.5μl
  • Ultramicropath: 0.02、0.05、0.1、0.5、1mm Five detection paths, automatic switching
  • Full wavelength range of 190-1100nm with a resolution of 1nm. The instrument automatically provides scanning results for the full wavelength range of 190-900nm
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PUL-4000N

  • TOP

  • Ultra micro spectrophotometer is an important analytical instrument, which has wide and important applications in scientific research fields such as physics, chemistry, biology, medicine, materials science, environmental science, as well as in modern production and management departments such as chemical engineering, medicine, environmental testing, metallurgy, etc. A spectrophotometer is an instrument that uses spectrophotometry to quantitatively and qualitatively analyze substances, commonly used for nucleic acid, protein quantification, and bacterial growth concentration quantification. Ultra micro UV visible spectrophotometer is commonly used in various fields such as clinical disease diagnosis, blood transfusion safety, forensic identification, environmental microbiological testing, food safety testing, molecular biology research, etc.


  • The required sample for detection is low in trace amounts, only 0.5 to 2 uI is needed to complete the detection, with a minimum requirement of only 0.5u. It has dual platforms for ultra trace and colorimetric dishes

  • Wide detection range, 500 times higher than the upper limit of traditional spectrophotometers

  • For most samples, no dilution is required

  • The machine does not require preheating, can measure directly, does not require container inspection, and has low daily consumption

  • Full wavelength range of 190-1100nm with a resolution of 1nm. The instrument automatically provides scanning results for the full wavelength range of 190-900nm

  • Compact size, portable packaging, meeting the needs of on-site testing

  • 2-in-1 function, supporting OD600 detection function, for easy detection of cell, bacterial liquid, and yeast growth density, with comprehensive functions and multiple uses in one machine

  • Built in thermal printer with printing function, capable of storing about 100000 pieces of test data, and can be exported through USB interface, bidding farewell to data loss

  • Intelligent sensing measurement, no need to press any buttons, directly output detection results


Host

PUL-4000N

Minimum sample size

0.5μl

Ultramicropath

0.02、0.05、0.1、0.5、1mm Five detection paths, automatic switching

Wavelength coverage

190~900nm

Wavelength accuracy

1nm

Wavelength resolution

1nm

Absorbance accuracy

+1% (0.76 at 260nm)

Absorbance resolution accuracy

0.002Abs (1mm optical path)

Light absorption range

0-750A (equivalent 10mm optical path length)

OD600 absorbance range

0~4.000Abs

OD600 absorbance stability

[0,3)≤0.5%,[3,4)≤2%

OD600 absorbance repeatability

[0,3)≤0.5%,[3,4)≤2%

Scope of nucleic acid testing

1.5~37500 ng/ul (dSDNA), detection limit of 1.5 ng/ul

Protein detection range

0.05~1110 mg/ml(BSA),0.03~540 mg/ml(lgG)

Detector

2048 unit CMOS line array sensor

Light source

Imported miniature xenon flash system, flashes 109 times, with a lifespan of up to 10 years

Measure Time

<5 s

LCD screen

7-inch touch operation screen, Android system

Characteristic

Adopting the principle of fixed optical path length, there is no need for calibration for life. Samples of 304 stainless steel and quartz that can detect volatile solvents

Sample detection platform material

304 stainless steel and quartz
