TZX Series
TOP
TZX series continuous zoom stereo microscopes provide high quality optical system and durable and reliable operating mechanism. The new design shows the best resolution and true color images to meet the high precision requirements of modern biomedical, scientific research, on-line inspection in modern electronics industry and other technological and industrial fields.
TZX series continuous zoom stereo microscopes provide high quality optical system and durable and reliable operating mechanism. The new design shows the best resolution and true color images to meet the high precision requirements of modern biomedical, scientific research, on-line inspection in modern electronics industry and other technological and industrial fields.

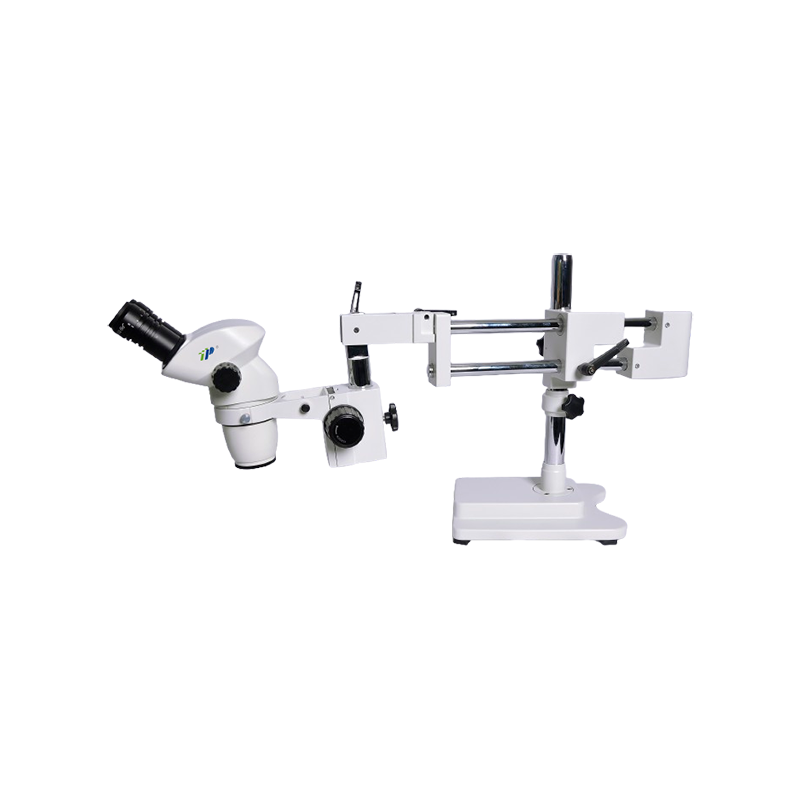

Parameter | TZX6745-XTWZII | Model TZX6745-XTWZI |
Observation Head Tilt | 45° | |
Zoom Ratio | 01:06.7 | |
Eyepiece | WF10X/22mm adjustable eyepiece | |
Objective Lens | 0.67x-4.5x | |
Magnification | 6.7x-45x | |
Interpupillary Distance | 54-75mm | |
Working Distance | 105mm | |
Features | Expands operating range, allows observation from any direction and angle | |
Vertical Column: Height | 380mm | |
Vertical Column: Diameter | φ32mm | |
Horizontal Movement | 235mm | |
Base Dimensions | 210x260x40mm | 230x230x40mm |
Parameter | TZX6745-XTWZII | Model TZX6745-XTWZI |
Observation Head Tilt | 45° | |
Zoom Ratio | 01:06.7 | |
Eyepiece | WF10X/22mm adjustable eyepiece | |
Objective Lens | 0.67x-4.5x | |
Magnification | 6.7x-45x | |
Interpupillary Distance | 54-75mm | |
Working Distance | 105mm | |
Features | Expands operating range, allows observation from any direction and angle | |
Vertical Column: Height | 380mm | |
Vertical Column: Diameter | φ32mm | |
Horizontal Movement | 235mm | |
Base Dimensions | 210x260x40mm | 230x230x40mm |

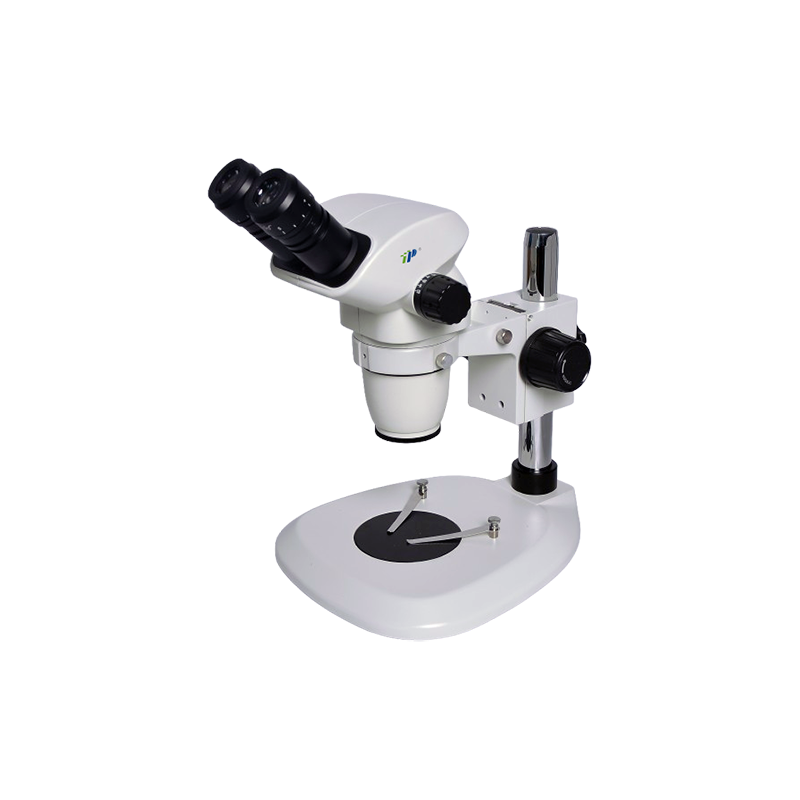

Specification | TZX6745-J1 | TZX6745-J2 | TZX6745-J3 | TZX6745-J4 |
Observation Head Tilt | 45° | |||
Zoom Ratio | 01:06.7 | |||
Eyepiece | WF10X/22mm adjustable | |||
Objective Lens | 0.67x-4.5x | |||
Magnification | 6.7x-45x | |||
Interpupillary Distance | 54-75mm | |||
Working Distance | 105mm | |||
Illumination | - | - | Upper/lower LED, adjustable | |
Stand Height | 240mm | 300mm | 240mm | |
Stand Diameter | φ32mm | - | - | - |
Focusing Travel | - | 100mm | - | |
Lens Barrel Aperture | - | φ76mm | - | |
Base Features | With clips & φ95mm glass plate | - | - | |
Base Dimensions | 285×238mm |
Specification | TZX6745-J1 | TZX6745-J2 | TZX6745-J3 | TZX6745-J4 |
Observation Head Tilt | 45° | |||
Zoom Ratio | 01:06.7 | |||
Eyepiece | WF10X/22mm adjustable | |||
Objective Lens | 0.67x-4.5x | |||
Magnification | 6.7x-45x | |||
Interpupillary Distance | 54-75mm | |||
Working Distance | 105mm | |||
Illumination | - | - | Upper/lower LED, adjustable | |
Stand Height | 240mm | 300mm | 240mm | |
Stand Diameter | φ32mm | - | - | - |
Focusing Travel | - | 100mm | - | |
Lens Barrel Aperture | - | φ76mm | - | |
Base Features | With clips & φ95mm glass plate | - | - | |
Base Dimensions | 285×238mm |

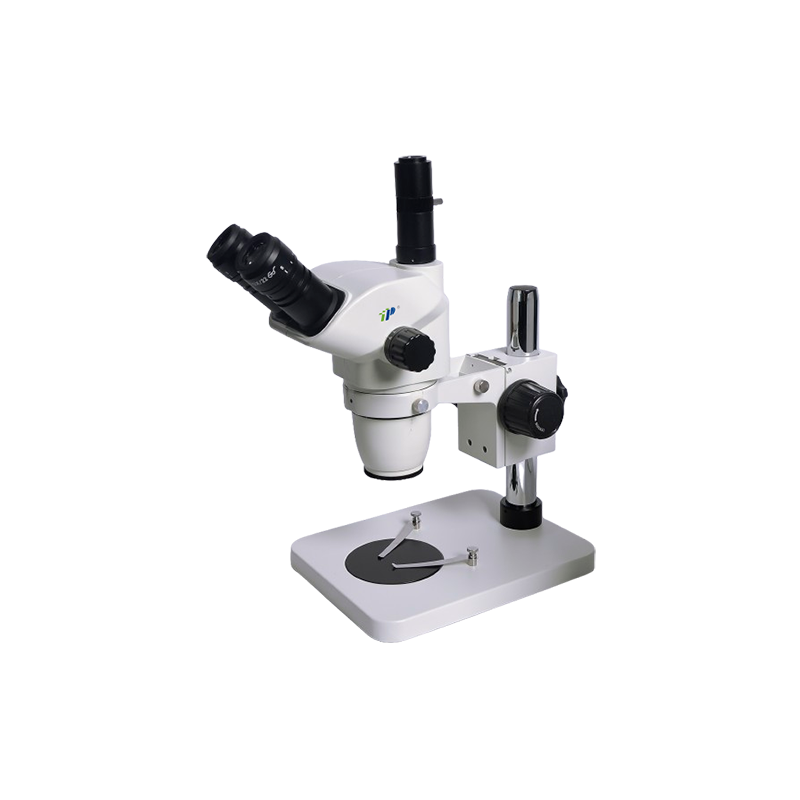

Specification | TZX6745-B1 | TZX6745-B2 | TZX6745-B3 | TZX6745-B4 | TZX6745-B5 |
Observation Head Tilt | 45° | 45° | 45° | 45° | 45° |
Zoom Ratio | 01:06.7 | 01:06.7 | 01:06.7 | 01:06.7 | 01:06.7 |
Eyepiece | WF10X/22mm adjustable | ||||
Objective Lens | 0.67x-4.5x | ||||
Magnification | 6.7x-45x | ||||
Interpupillary Distance | 54-75mm | ||||
Working Distance | 105mm | ||||
Stand Height | 240mm | 300mm | |||
Stand Diameter | φ32mm | - | - | ||
Focusing Travel | - | - | - | 100mm | |
Lens Barrel Aperture | - | - | - | φ76mm | |
Base Features | With φ95mm plate | With φ95mm glass plate | - | With φ95mm glass plate | - |
Illumination | - | 12v/15w halogen + 7w fluorescent | - | - | - |
Base Dimensions | 200×255×22mm | 20×255×40mm | 320×260×16mm | 200×255×22mm | 320×260×16mm |
Specification | TZX6745-B1 | TZX6745-B2 | TZX6745-B3 | TZX6745-B4 | TZX6745-B5 |
Observation Head Tilt | 45° | 45° | 45° | 45° | 45° |
Zoom Ratio | 01:06.7 | 01:06.7 | 01:06.7 | 01:06.7 | 01:06.7 |
Eyepiece | WF10X/22mm adjustable | ||||
Objective Lens | 0.67x-4.5x | ||||
Magnification | 6.7x-45x | ||||
Interpupillary Distance | 54-75mm | ||||
Working Distance | 105mm | ||||
Stand Height | 240mm | 300mm | |||
Stand Diameter | φ32mm | - | - | ||
Focusing Travel | - | - | - | 100mm | |
Lens Barrel Aperture | - | - | - | φ76mm | |
Base Features | With φ95mm plate | With φ95mm glass plate | - | With φ95mm glass plate | - |
Illumination | - | 12v/15w halogen + 7w fluorescent | - | - | - |
Base Dimensions | 200×255×22mm | 20×255×40mm | 320×260×16mm | 200×255×22mm | 320×260×16mm |
