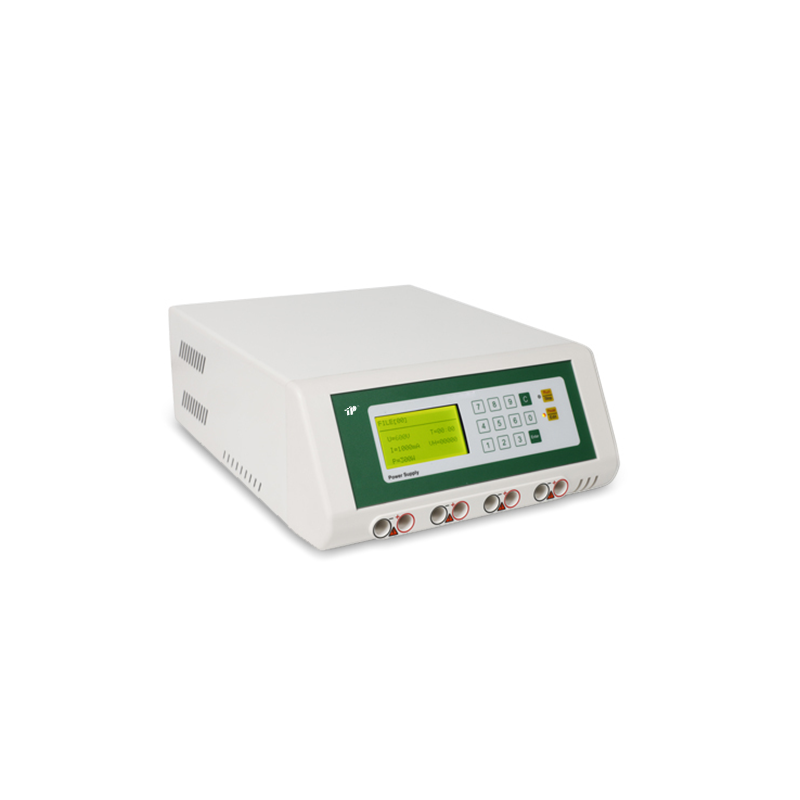

TP600HE Electrophoresis Power Supply – Programmable Constant Voltage/Current/Power with Multi-Method Memory and Four Output Jacks
Output Type: Constant Voltage, Constant Current, or Constant Power
Voltage/Current/Power Range: 10–600 V / 1–1000 mA / 1–300 W
Increment Setting: 1 V, 1 mA, 1 W
Timer & V-hr: 1 min–99 hr 59 min; 1–99999 V-hr
Memory & Programs: Stores up to 100 methods; step-by-step control with up to 10 linked programs
Display: Backlit LCD showing preset and real-time values
Output Jacks: Four sets for multiple electrophoresis runs simultaneously
Voltage/Current/Power Range: 10–600 V / 1–1000 mA / 1–300 W
Increment Setting: 1 V, 1 mA, 1 W
Timer & V-hr: 1 min–99 hr 59 min; 1–99999 V-hr
Memory & Programs: Stores up to 100 methods; step-by-step control with up to 10 linked programs
Display: Backlit LCD showing preset and real-time values
Output Jacks: Four sets for multiple electrophoresis runs simultaneously
| Quantity: | |
|---|---|
-
TP600HE
-
TOP
Technical specifications
Type of Output: Constant-Voltage, Current or Power
Increment: 1V, 1mA, 1W
Output Range: 10--600V, 1--1000mA, 1--300W.
Timer Range: 1min~99hr, 59min
V-hr Range: 1~99999V-hr/ Increment 1V-hr
Display: LCD display with backlight
Output jacks: Four sets of output jacks
Characteristic features
• Touch keys, dual core microprocessorintelligent control;
• 0-9 digital button, make the operation more simple andconvenient;
• Indicate the preset value and the actual output value at the same time;
• It can store 100 electrophoresis methods;
• With automatic memory function;
• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
• With a pause control function (including real-time tuning)
• With standard, timing, V-hr, step-by-step operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
Technical specifications
Type of Output: Constant-Voltage, Current or Power
Increment: 1V, 1mA, 1W
Output Range: 10--600V, 1--1000mA, 1--300W.
Timer Range: 1min~99hr, 59min
V-hr Range: 1~99999V-hr/ Increment 1V-hr
Display: LCD display with backlight
Output jacks: Four sets of output jacks
Characteristic features
• Touch keys, dual core microprocessorintelligent control;
• 0-9 digital button, make the operation more simple andconvenient;
• Indicate the preset value and the actual output value at the same time;
• It can store 100 electrophoresis methods;
• With automatic memory function;
• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
• With a pause control function (including real-time tuning)
• With standard, timing, V-hr, step-by-step operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
