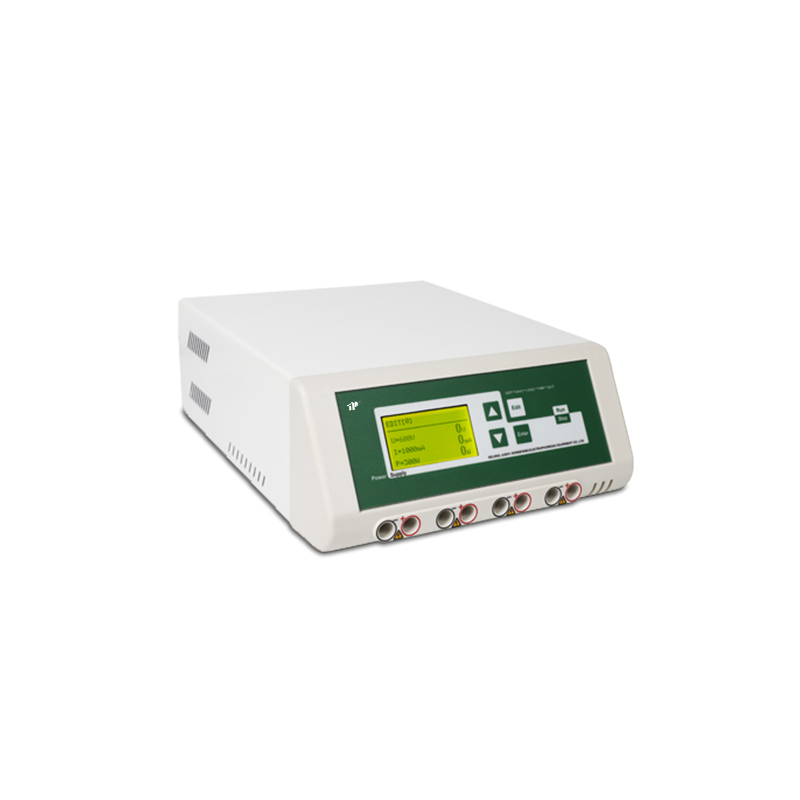

TP600HC Electrophoresis Power Supply – Constant Voltage/Current/Power with Multi-Safety Protection and Memory Function
Output Type: Constant Voltage, Constant Current, or Constant Power
Voltage/Current/Power Range: 10–600 V / 1–1000 mA / 1–300 W
Increment Setting: 1 V, 1 mA, 1 W
Timer: 1 min–99 hr 59 min operation
Memory Capacity: Stores up to 10 electrophoresis methods with auto memory
Display: Backlit LCD showing preset and real-time values
Output Jacks: Four sets for simultaneous electrophoresis runs
Voltage/Current/Power Range: 10–600 V / 1–1000 mA / 1–300 W
Increment Setting: 1 V, 1 mA, 1 W
Timer: 1 min–99 hr 59 min operation
Memory Capacity: Stores up to 10 electrophoresis methods with auto memory
Display: Backlit LCD showing preset and real-time values
Output Jacks: Four sets for simultaneous electrophoresis runs
| Quantity: | |
|---|---|
-
TP600HC
-
TOP
Specification
Type of Output: Constant-Voltage, Current or Power
Increment: 1V, 1mA, 1W
Output Range: 10--600V, 1--1000mA, 1--300W.
Timer Range: 1min~99hr, 59min
Display: LCD display with backlight
Output jacks: Four sets of output jacks
Characteristic feature
• Molding shell, touch keys, dual core microprocessor intelligent control;
• Indicate the preset value and the actual output value at the same time;
• It can store 10 electrophoresis methods;
• With automatic memory function;
• With standard, timing operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
Specification
Type of Output: Constant-Voltage, Current or Power
Increment: 1V, 1mA, 1W
Output Range: 10--600V, 1--1000mA, 1--300W.
Timer Range: 1min~99hr, 59min
Display: LCD display with backlight
Output jacks: Four sets of output jacks
Characteristic feature
• Molding shell, touch keys, dual core microprocessor intelligent control;
• Indicate the preset value and the actual output value at the same time;
• It can store 10 electrophoresis methods;
• With automatic memory function;
• With standard, timing operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
