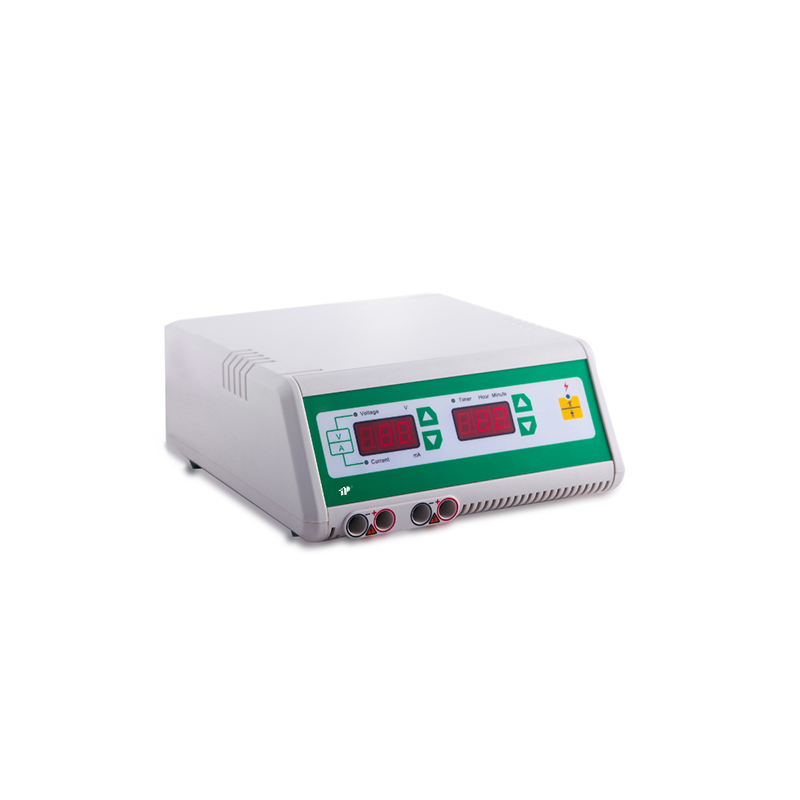

TP300 Electrophoresis Power Supply | Constant Voltage & Current, 5–600V, 120W Lab Power Source
Output Type: Constant Voltage / Constant Current
Output Range: 5–600V, 1–200mA, Max 120W
Increment Setting: 1V, 1mA
Timer Range: 1 min to 9 hr 59 min
Display: LED screen showing preset & actual values
Output Jacks: Two sets of output jacks
Functions: Automatic memory, timing mode, overload and no-load detection
Output Range: 5–600V, 1–200mA, Max 120W
Increment Setting: 1V, 1mA
Timer Range: 1 min to 9 hr 59 min
Display: LED screen showing preset & actual values
Output Jacks: Two sets of output jacks
Functions: Automatic memory, timing mode, overload and no-load detection
| Quantity: | |
|---|---|
-
TP300
-
TOP
Technical specifications
Type of Output: Constant-Voltage, Current
Output range: 5~600V、1~200mA、maximum 120W
Increment: 1V, 1mA
Timer Range: 1min~9hr, 59min
Display: LED
Output jacks: Two sets of output jacks
Characteristic feature
• Molding shell, touch keys, microprocessor intelligent control;
• With automatic memory function;
• With standard, timing operation function;
• Automatic detection of no-load, over-load.
Technical specifications
Type of Output: Constant-Voltage, Current
Output range: 5~600V、1~200mA、maximum 120W
Increment: 1V, 1mA
Timer Range: 1min~9hr, 59min
Display: LED
Output jacks: Two sets of output jacks
Characteristic feature
• Molding shell, touch keys, microprocessor intelligent control;
• With automatic memory function;
• With standard, timing operation function;
• Automatic detection of no-load, over-load.
