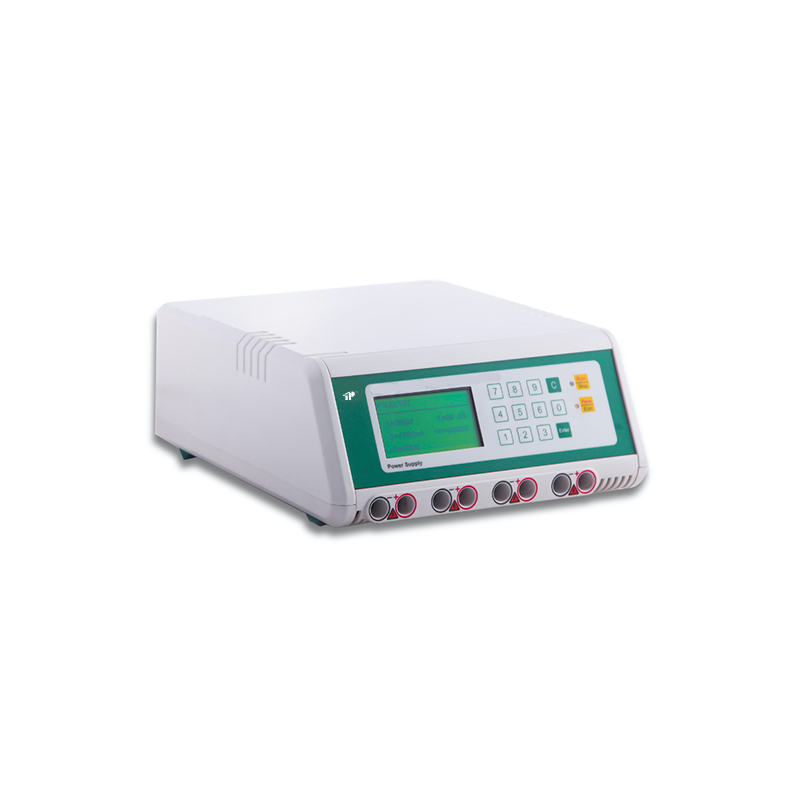

TP200E Electrophoresis Power Supply | 5–200V, 200W, Programmable Multi-Step Lab Power Unit with LCD Display
Output Type: Constant Voltage / Constant Current / Constant Power
Output Range: 5–200V, 1–2000mA, 1–200W
Increment Setting: 1V, 1mA, 1W; V-hr Range: 1–99999 V-hr (1 V-hr step)
Timer Range: 1 min to 99 hr 59 min
Display: LCD with backlight, simultaneous preset & actual value display
Output Jacks: Four sets of output jacks
Functions: Stores up to 100 methods, step-by-step programmable control (10×10 programs), real-time pause & tuning, multiple safety protections
Output Range: 5–200V, 1–2000mA, 1–200W
Increment Setting: 1V, 1mA, 1W; V-hr Range: 1–99999 V-hr (1 V-hr step)
Timer Range: 1 min to 99 hr 59 min
Display: LCD with backlight, simultaneous preset & actual value display
Output Jacks: Four sets of output jacks
Functions: Stores up to 100 methods, step-by-step programmable control (10×10 programs), real-time pause & tuning, multiple safety protections
| Quantity: | |
|---|---|
-
TP200E
-
TOP
Technical specifications
Type of Output: Constant-Voltage, Current or Power
Increment: 1V, 1mA, 1W
Output Range: 5--200V, 1--2000mA, 1--200W.
Timer Range: 1min~99hr, 59min
V-hr Range: 1~99999V-hr/ Increment 1V-hr
Display: LCD display with backlight
Output jacks: Four sets of output jacks
Characteristic features
• Molding shell, touch keys, dual core microprocessor intelligent control;
• 0-9 digital button, make the operation more simple and convenient;
• Indicate the preset value and the actual output value at the same time;
• It can store 100 electrophoresis methods;
• With automatic memory function;
• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
• With a pause control function (including real-time tuning)
• With standard, timing, V-hr, step-by-step operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
Technical specifications
Type of Output: Constant-Voltage, Current or Power
Increment: 1V, 1mA, 1W
Output Range: 5--200V, 1--2000mA, 1--200W.
Timer Range: 1min~99hr, 59min
V-hr Range: 1~99999V-hr/ Increment 1V-hr
Display: LCD display with backlight
Output jacks: Four sets of output jacks
Characteristic features
• Molding shell, touch keys, dual core microprocessor intelligent control;
• 0-9 digital button, make the operation more simple and convenient;
• Indicate the preset value and the actual output value at the same time;
• It can store 100 electrophoresis methods;
• With automatic memory function;
• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
• With a pause control function (including real-time tuning)
• With standard, timing, V-hr, step-by-step operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
