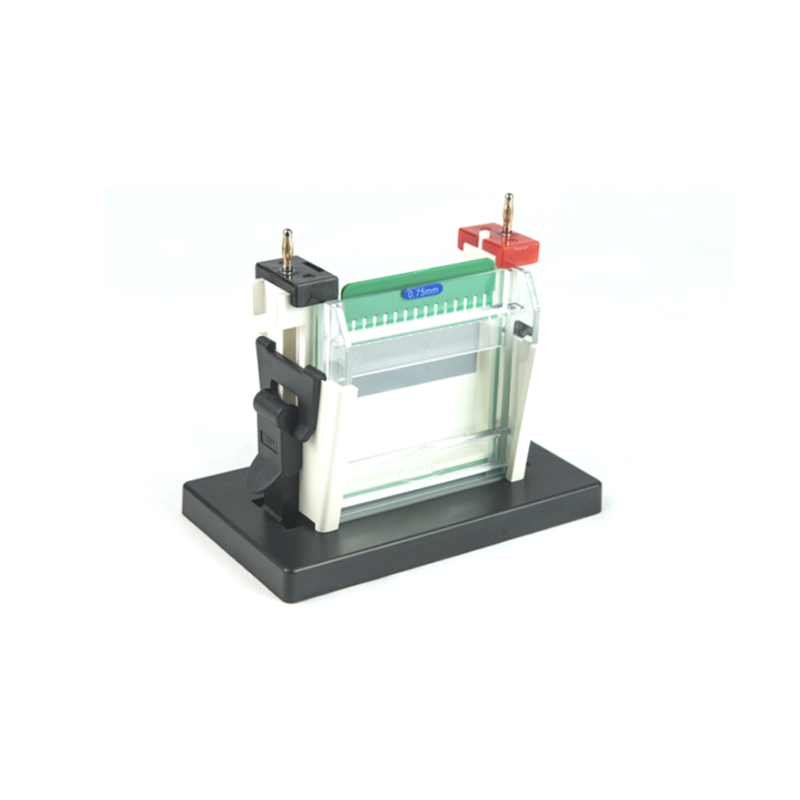

TP-SCZ2+ Vertical Gel Electrophoresis System for Protein Analysis, 1–2 Gels, 11–15 Wells
Glass plate size: 100×100 mm, Gel size: 82×88 mm
Gel thickness: 0.75, 1.0, 1.5 mm; Number of gels: 1–2
Sample wells: 11–15 per gel depending on thickness
Buffer volume: ~750 ml; Net weight: 1.5 kg
Dimension (L×W×H): 150×120×115 mm
Quick glass plate installation (≤15s) with gel casting in original position
Transparent polycarbonate body, impact and corrosion resistant; auto-switch-off safety lid
Gel thickness: 0.75, 1.0, 1.5 mm; Number of gels: 1–2
Sample wells: 11–15 per gel depending on thickness
Buffer volume: ~750 ml; Net weight: 1.5 kg
Dimension (L×W×H): 150×120×115 mm
Quick glass plate installation (≤15s) with gel casting in original position
Transparent polycarbonate body, impact and corrosion resistant; auto-switch-off safety lid
| Quantity: | |
|---|---|
-
TP-SCZ2+
-
TOP
Technical specifications
Glass plate size（W×L）:100×100 mm
Gel Size（W×L）:82×88 mm
Gel thickness:0.75 、1.0、1.5（mm）
Gel amount:1～2（pieces）
Sample volume:（0.75mm）11、15 wells；（1.0mm）11、15wells；（1.5mm）11、15wells
Buffer Volume:～750（ml）
Dimension（L×W×H）:150×120×115（mm）
Net weight:1.5（kg）
Characteristic feature
The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
With a gel casting in original position, no need to move glasses from gel making to elctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
High transparent polycarbonate material injection molding, impact resistance, high temperature resistance, corrosion resistance.
Safety cover open button design, convenient opening the cover.
With the background color, easy to be observed in the sample adding and electrophoresis process.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
Technical specifications
Glass plate size（W×L）:100×100 mm
Gel Size（W×L）:82×88 mm
Gel thickness:0.75 、1.0、1.5（mm）
Gel amount:1～2（pieces）
Sample volume:（0.75mm）11、15 wells；（1.0mm）11、15wells；（1.5mm）11、15wells
Buffer Volume:～750（ml）
Dimension（L×W×H）:150×120×115（mm）
Net weight:1.5（kg）
Characteristic feature
The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
With a gel casting in original position, no need to move glasses from gel making to elctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
High transparent polycarbonate material injection molding, impact resistance, high temperature resistance, corrosion resistance.
Safety cover open button design, convenient opening the cover.
With the background color, easy to be observed in the sample adding and electrophoresis process.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
