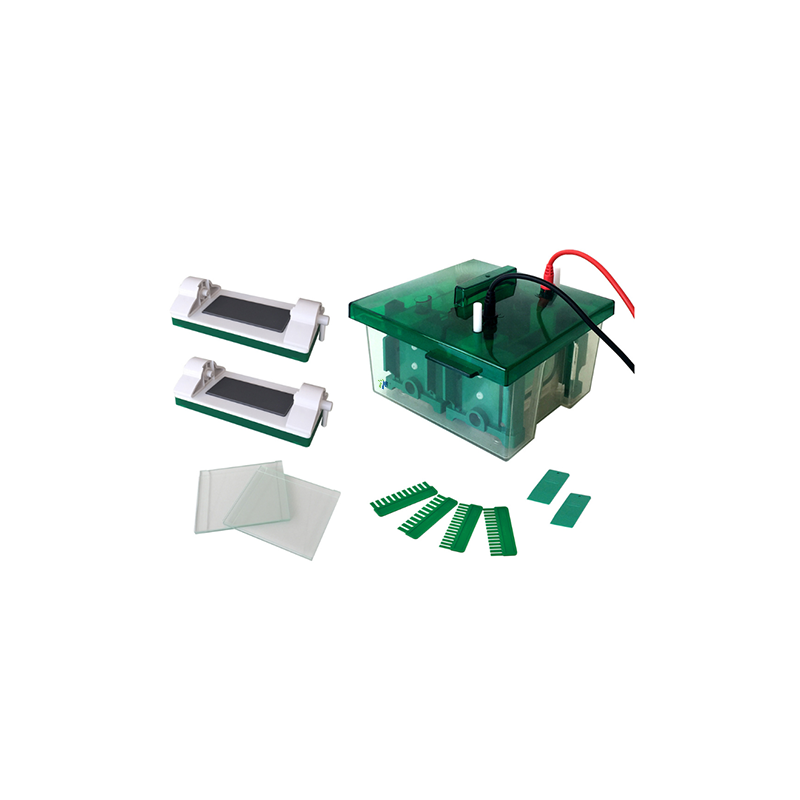

TP-Mini-P4 Vertical Gel Electrophoresis System for 1–4 Plates, Fast Setup, Stable pH, Safe Operation
Glass plate size: 101 × 82 mm
Gel size: 81 × 73 mm, thickness 1.0 mm
Gel capacity: 1–4 plates, sample volume 11–60 wells
Buffer volume: ~1200 ml
Dimension (L×W×H): 175 × 175 × 100 mm, Net weight: 2.5 kg
Two gel casting options, cast gels in original position without moving plates
Auto-switch-off and abundant buffer ensure stable pH and safe operation
Gel size: 81 × 73 mm, thickness 1.0 mm
Gel capacity: 1–4 plates, sample volume 11–60 wells
Buffer volume: ~1200 ml
Dimension (L×W×H): 175 × 175 × 100 mm, Net weight: 2.5 kg
Two gel casting options, cast gels in original position without moving plates
Auto-switch-off and abundant buffer ensure stable pH and safe operation
| Quantity: | |
|---|---|
-
TP-Mini-P4
-
TOP
Technical specifications
Glass plate size（W×L）:101×82 mm
Gel Size（W×L）:81×73 mm
Gel thickness: 1.0mm
Gel amount:1～4（pieces）
Sample volume:11~60
Buffer Volume:～1200ml
Dimension（L×W×H）:175×175×100mm
Net weight:2.5（kg）
Characteristic features
With two gel castings, can cast 1-4 plates of gels at the same time.
The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
With the gel casting in original position, no need to move glasses from gal making to elelctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
With the background color, making it easy to observe sample loading and electrophoresis running.
With protective strip of positive electrode, it can prevent producing bubbles and also protect platinum silk from damage.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
Technical specifications
Glass plate size（W×L）:101×82 mm
Gel Size（W×L）:81×73 mm
Gel thickness: 1.0mm
Gel amount:1～4（pieces）
Sample volume:11~60
Buffer Volume:～1200ml
Dimension（L×W×H）:175×175×100mm
Net weight:2.5（kg）
Characteristic features
With two gel castings, can cast 1-4 plates of gels at the same time.
The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
With the gel casting in original position, no need to move glasses from gal making to elelctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
With the background color, making it easy to observe sample loading and electrophoresis running.
With protective strip of positive electrode, it can prevent producing bubbles and also protect platinum silk from damage.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
