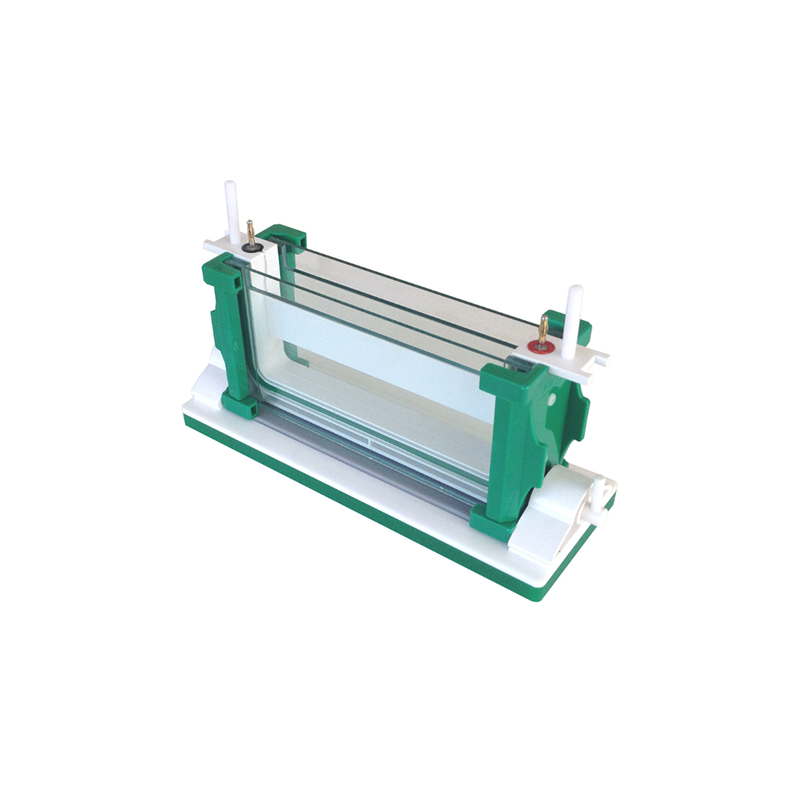

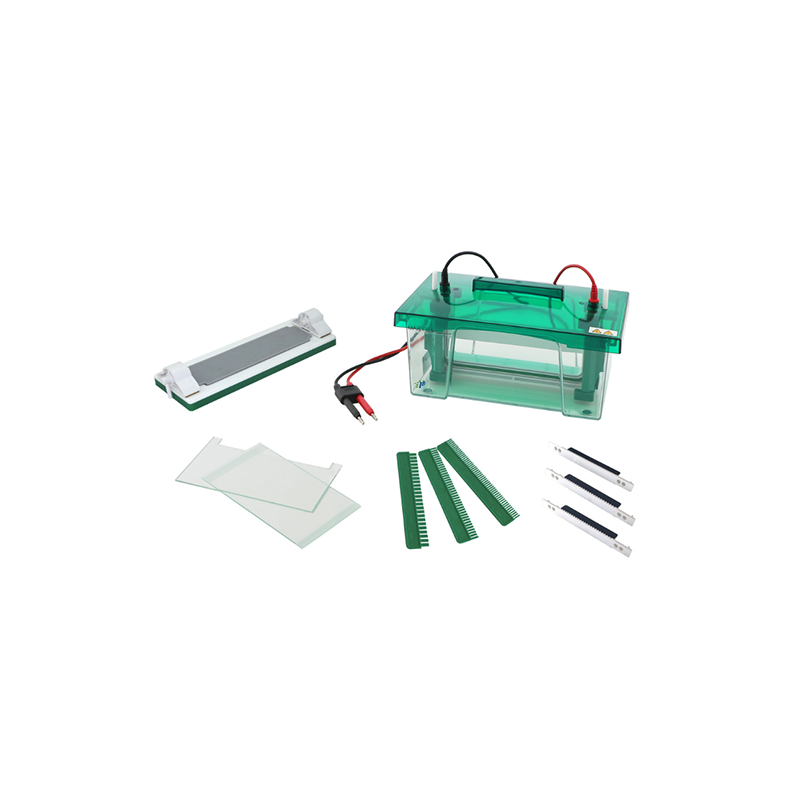

TP-CZ-B Vertical Gel Electrophoresis System with Precast Gel Support and High Buffer Capacity for Protein and DNA Analysis
Gel Size: 186 × 95 mm, Thickness: 1.0 mm
Number of Gel Plates: 1–2 pieces
Sample Wells: 25, 40, 52 wells (1.0 mm)
Buffer Volume: ~1800 ml
Quick glass plate installation in 15 seconds, no knobs required
Precast gel inner core allows simultaneous gel making and electrophoresis
Safety cover with auto-switch-off when lid is removed
Number of Gel Plates: 1–2 pieces
Sample Wells: 25, 40, 52 wells (1.0 mm)
Buffer Volume: ~1800 ml
Quick glass plate installation in 15 seconds, no knobs required
Precast gel inner core allows simultaneous gel making and electrophoresis
Safety cover with auto-switch-off when lid is removed
| Quantity: | |
|---|---|
-
TP-CZ-B
-
TOP
Technical specifications
Glass plate size（W×L）:216×110 mm
Gel Size（W×L）:186×95 mm
Gel thickness: 1.0（mm）
Gel amount:1～2（pieces）
Sample volume:（1.0mm）25、40、52wells
Buffer Volume:～1800（ml）
Dimension（L×W×H）:280×140×135（mm）
Net weight:3.2（kg）
Characteristic feature
The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
With the gel making device of normal position，don’t should to moving the glass plate from the process of making gel to electrophoresis.
With the Precast gel inner core, do not affecting the operation of
gel making while the electrophoresis.
Safety cover open button design, convenient opening the cover.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
Technical specifications
Glass plate size（W×L）:216×110 mm
Gel Size（W×L）:186×95 mm
Gel thickness: 1.0（mm）
Gel amount:1～2（pieces）
Sample volume:（1.0mm）25、40、52wells
Buffer Volume:～1800（ml）
Dimension（L×W×H）:280×140×135（mm）
Net weight:3.2（kg）
Characteristic feature
The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
With the gel making device of normal position，don’t should to moving the glass plate from the process of making gel to electrophoresis.
With the Precast gel inner core, do not affecting the operation of
gel making while the electrophoresis.
Safety cover open button design, convenient opening the cover.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
