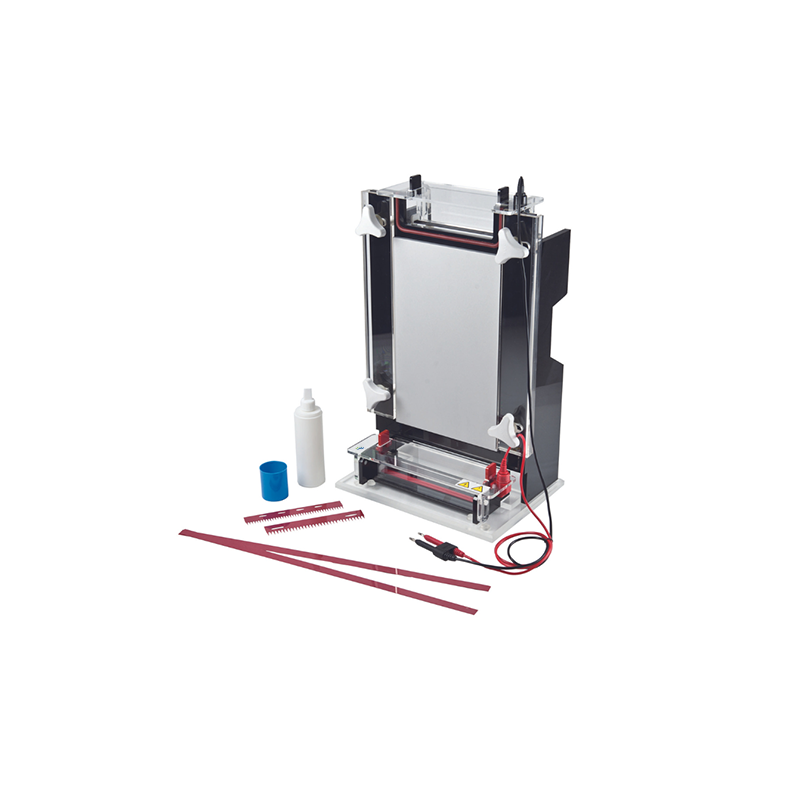

TP-CX1B Vertical Gel Electrophoresis System – Large Format Protein & Nucleic Acid Separation, Low Buffer Consumption
Glass Plate Size: 200 × 450 mm
Gel Size: 180 × 420 mm
Gel Thickness: 0.4 mm
Sample Capacity: 32 or 39 wells (0.4 mm)
Buffer Volume: ~500 ml
Dimensions (L × W × H): 310 × 230 × 500 mm
Net Weight: 11 kg
Gel Size: 180 × 420 mm
Gel Thickness: 0.4 mm
Sample Capacity: 32 or 39 wells (0.4 mm)
Buffer Volume: ~500 ml
Dimensions (L × W × H): 310 × 230 × 500 mm
Net Weight: 11 kg
| Quantity: | |
|---|---|
-
TP-CX1B
-
TOP
Technical specifications
Glass plate size(W×L): 200×450 mm
Gel Size(W×L): 180×420 mm
Gel thickness: 0.4mm
Gel amount: 1 pc
Sample volume: (0.4mm)32,39wells
Buffer Volume: ～500ML
Dimension(L×W×H): 310×230×500mm
Net weight: 11kg
Characteristic feature
Simple operation, only four fastening knobs needed.
50% buffer savings compared with traditional tanks.
Unfolded electrodes make repair and parts replacement easy and quick.
Special heat dissipation processed aluminum plate firmly clings to the gel plates, which effectively guarantees the gel temperature is even, ensuring the electrophoresis trip is straighter.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
Technical specifications
Glass plate size(W×L): 200×450 mm
Gel Size(W×L): 180×420 mm
Gel thickness: 0.4mm
Gel amount: 1 pc
Sample volume: (0.4mm)32,39wells
Buffer Volume: ～500ML
Dimension(L×W×H): 310×230×500mm
Net weight: 11kg
Characteristic feature
Simple operation, only four fastening knobs needed.
50% buffer savings compared with traditional tanks.
Unfolded electrodes make repair and parts replacement easy and quick.
Special heat dissipation processed aluminum plate firmly clings to the gel plates, which effectively guarantees the gel temperature is even, ensuring the electrophoresis trip is straighter.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
