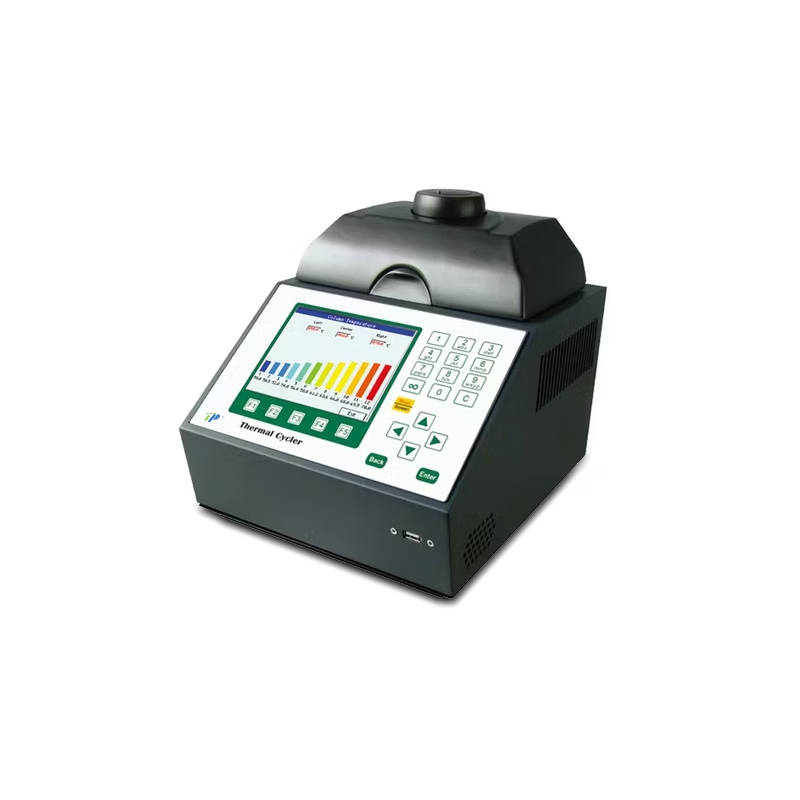

TP-96G 96-Well Gradient PCR Thermal Cycler with High-Speed Heating & Cooling, Hot Lid, USB & RS232 Connectivity for Molecular Biology
PCR Capacity: 96 × 0.2 mL tubes
Temperature Range: 0–100°C; Gradient Range: 30–99.9°C with 1–30°C difference
Heating/Cooling Rate: ≥5°C/s (heating), ≥4.5°C/s (cooling)
Sample Block Accuracy & Uniformity: ±0.2°C; Gradient Accuracy & Uniformity: ≤0.3°C
Maximum Steps: 40; Programs Storage: 120 (expandable via USB)
Hot Lid: 30–50°C, adjustable height, auto-shutdown function
Communication: USB 2.0, RS232; Dimension: 245×300×280 mm; Weight: 8 kg
Temperature Range: 0–100°C; Gradient Range: 30–99.9°C with 1–30°C difference
Heating/Cooling Rate: ≥5°C/s (heating), ≥4.5°C/s (cooling)
Sample Block Accuracy & Uniformity: ±0.2°C; Gradient Accuracy & Uniformity: ≤0.3°C
Maximum Steps: 40; Programs Storage: 120 (expandable via USB)
Hot Lid: 30–50°C, adjustable height, auto-shutdown function
Communication: USB 2.0, RS232; Dimension: 245×300×280 mm; Weight: 8 kg
| Quantity: | |
|---|---|
-
TP-96G
-
TOP
Technical Specifications
Capacity: 96×0.2ml
Temp. Range: 0℃~100℃(Rt≤30℃)
Gradient Temp. Range: 30℃~99.9℃,Gradient Difference:1℃~30℃
Maximum heating rate: ≥5℃/s
Maximum cooling rate : ≥4.5℃/s
Time increasing/decreasing: 1~120s,enable to do Long PCR experiment
Temp. increasing/decreasing: 0.1~10.0℃,enable to do Touchdown PCR experiment
Temp. Rate adjustable: Yes
Temp. Control: Sample Block\Module Tube
Max no. of step:40,can multiple nesting cycle
Sample block temp. Uniformity: ≤±0.2℃(in 30s after reach to setting temp.)
Sample block temp. Accuracy: ≤±0.2℃(30℃~100℃)
Programs Storage: 120(can download programs without limit by U disk)
Gradient Temp. Accuracy: ≤0.3℃(35℃~99.9℃)
Gradient Temp. Uniformity: ≤0.3℃((30s after reach to setting temp.)
Gradient Temp. Point spread: 12 columns(vertical)
Power-off protection: Yes
4℃Heating Preservation: Yes
Hot Lid Temperature: 30℃~50℃(adjustable)
Hot Lid height: Step less Adjustable(pressure auto-suit to various PCR tubes and disks)
Hot Lid auto-shutdown function: Sample block≤30℃or program ends
Communication Port: USB2.0, RS232
Volume（L×W×H）: 245×300×280（mm）
Weight: 8.0（kg）
Features:
Designed with the latest and most advanced peltier-based semiconductor technology;
Fine tuning hot lid, suitable to various consumptive materials;
Large 5.7'' high-definition LCD display, real-time display process by curvilinear figure;
Direct and friendly user inter face, quick and easy for programming;
More convenient for gradient optimizing and saving reagent time.
Optional block and tube temperature control modes;
User interface in English, easy to operate for domestic and abroad users;
Beautiful and Generous, solemn and creative surface design;
Human optimal design, enable to quick and easy operate.
Technical Specifications
Capacity: 96×0.2ml
Temp. Range: 0℃~100℃(Rt≤30℃)
Gradient Temp. Range: 30℃~99.9℃,Gradient Difference:1℃~30℃
Maximum heating rate: ≥5℃/s
Maximum cooling rate : ≥4.5℃/s
Time increasing/decreasing: 1~120s,enable to do Long PCR experiment
Temp. increasing/decreasing: 0.1~10.0℃,enable to do Touchdown PCR experiment
Temp. Rate adjustable: Yes
Temp. Control: Sample Block\Module Tube
Max no. of step:40,can multiple nesting cycle
Sample block temp. Uniformity: ≤±0.2℃(in 30s after reach to setting temp.)
Sample block temp. Accuracy: ≤±0.2℃(30℃~100℃)
Programs Storage: 120(can download programs without limit by U disk)
Gradient Temp. Accuracy: ≤0.3℃(35℃~99.9℃)
Gradient Temp. Uniformity: ≤0.3℃((30s after reach to setting temp.)
Gradient Temp. Point spread: 12 columns(vertical)
Power-off protection: Yes
4℃Heating Preservation: Yes
Hot Lid Temperature: 30℃~50℃(adjustable)
Hot Lid height: Step less Adjustable(pressure auto-suit to various PCR tubes and disks)
Hot Lid auto-shutdown function: Sample block≤30℃or program ends
Communication Port: USB2.0, RS232
Volume（L×W×H）: 245×300×280（mm）
Weight: 8.0（kg）
Features:
Designed with the latest and most advanced peltier-based semiconductor technology;
Fine tuning hot lid, suitable to various consumptive materials;
Large 5.7'' high-definition LCD display, real-time display process by curvilinear figure;
Direct and friendly user inter face, quick and easy for programming;
More convenient for gradient optimizing and saving reagent time.
Optional block and tube temperature control modes;
User interface in English, easy to operate for domestic and abroad users;
Beautiful and Generous, solemn and creative surface design;
Human optimal design, enable to quick and easy operate.
