TL Series
TOP
The continuous zoom stereo microscope offers a high quality optical system and a durable and reliable operating mechanism. This model has long working distance, large clear range, complete accessories and easy operation. It can be widely used in medical and health care, agriculture, forestry and geology, electronic precision machinery and other industries and departments, especially suitable for LED, PCB inspection, stamping and plating inspection, electronic component inspection.
The continuous zoom stereo microscope offers a high quality optical system and a durable and reliable operating mechanism. This model has long working distance, large clear range, complete accessories and easy operation. It can be widely used in medical and health care, agriculture, forestry and geology, electronic precision machinery and other industries and departments, especially suitable for LED, PCB inspection, stamping and plating inspection, electronic component inspection.

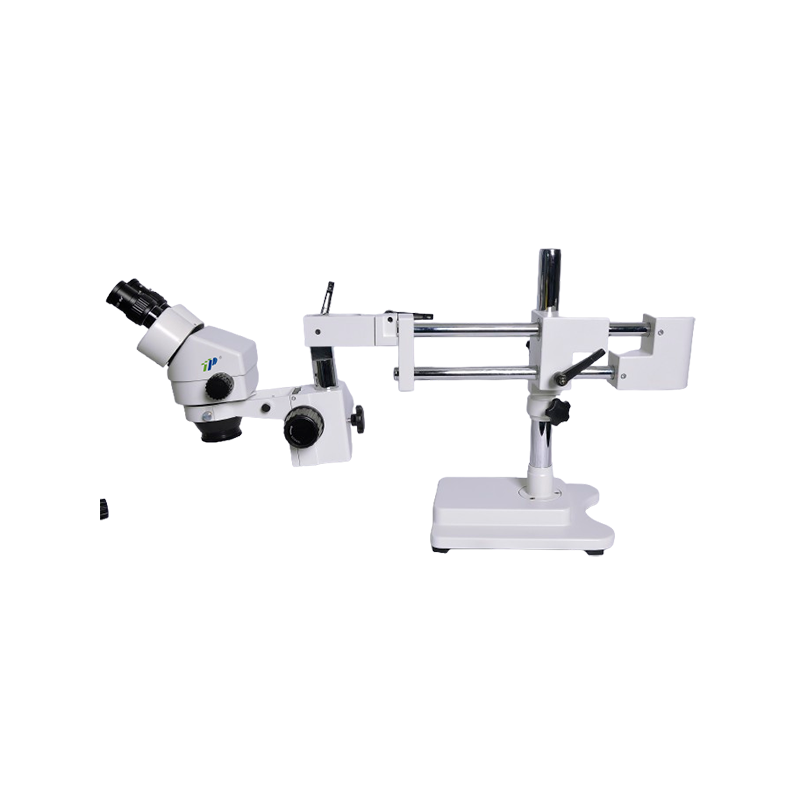

Model: TL7045-XTWZII/TL7045-XTWZI
Observation head inclination angle: 45º
Zoom ratio: 1:6.4
Eyepiece: WF10X/20mm
Objective lenses: 0.7x - 4.5x
Magnification range: 7x - 45x
Pupillary distance adjustment range: 55 - 75mm
Working distance: 100mm
Model: TL7045-XTWZII/TL7045-XTWZI
Observation head inclination angle: 45º
Zoom ratio: 1:6.4
Eyepiece: WF10X/20mm
Objective lenses: 0.7x - 4.5x
Magnification range: 7x - 45x
Pupillary distance adjustment range: 55 - 75mm
Working distance: 100mm
Specification | TL7045-BT1 | TL7045-BT2 | TL7045-BT3 | TL7045-BT4 | TL7045-BT5 |
Head Tilt | 45° | ||||
Zoom Ratio | 01:06.4 | ||||
Eyepiece | WF10X/20 | ||||
Objective Lens | 0.7x-4.5x | ||||
Magnification | 7x-45x | ||||
IPD Adjustment | 55-75mm | ||||
Working Distance | 100mm | ||||
Stand Type | Column | Arm | |||
Stand Height | 240mm | 300mm | |||
Stand Diameter | φ32mm | - | - | ||
Focus Travel | - | - | - | 100mm | |
Barrel Aperture | - | - | - | φ76mm | |
Base Features | - | Glass plate + clips | - | Glass plate + clips | - |
Illumination | - | Halogen + fluorescent | - | - | - |
Base Dimensions (mm) | 200×255×22 | 200×255×40 | 320×260×16 | 200×255×22 | 320×260×16 |
Specification | TL7045-BT1 | TL7045-BT2 | TL7045-BT3 | TL7045-BT4 | TL7045-BT5 |
Head Tilt | 45° | ||||
Zoom Ratio | 01:06.4 | ||||
Eyepiece | WF10X/20 | ||||
Objective Lens | 0.7x-4.5x | ||||
Magnification | 7x-45x | ||||
IPD Adjustment | 55-75mm | ||||
Working Distance | 100mm | ||||
Stand Type | Column | Arm | |||
Stand Height | 240mm | 300mm | |||
Stand Diameter | φ32mm | - | - | ||
Focus Travel | - | - | - | 100mm | |
Barrel Aperture | - | - | - | φ76mm | |
Base Features | - | Glass plate + clips | - | Glass plate + clips | - |
Illumination | - | Halogen + fluorescent | - | - | - |
Base Dimensions (mm) | 200×255×22 | 200×255×40 | 320×260×16 | 200×255×22 | 320×260×16 |

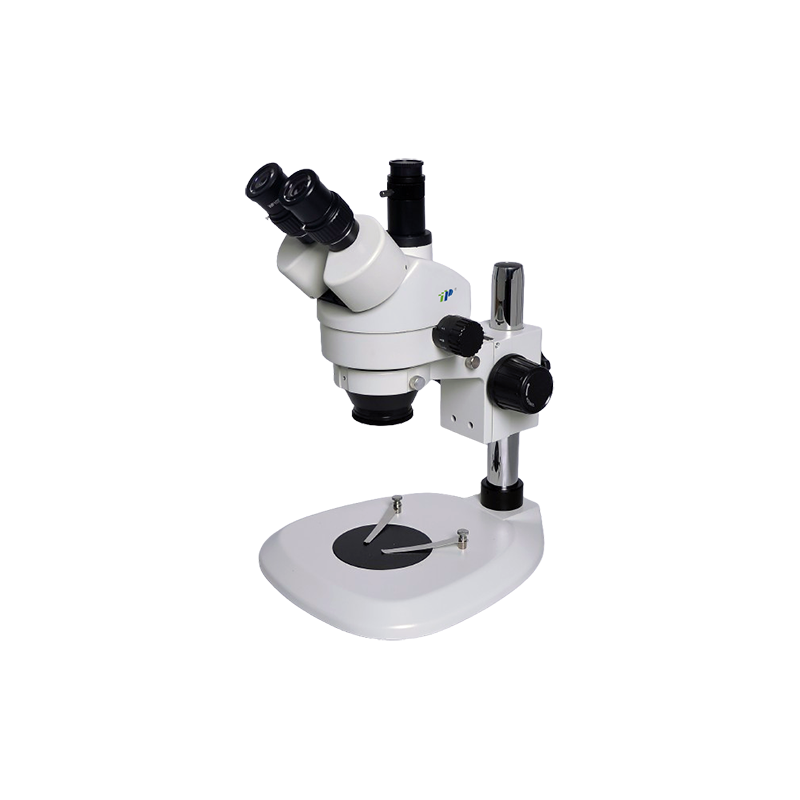

Specification | TL7045(T)-J1 | TL7045(T)-J2 | TL7045(T)-J3 | TL7045(T)-J4 |
Observation Head Tilt | 45º | |||
Zoom Ratio | 01:06.4 | |||
Eyepiece | WF10X/20mm | |||
Objective Lens | 0.7x-4.5x | |||
Magnification | 7x-45x | |||
Interpupillary Distance | 55-75mm | |||
Working Distance | 100mm | |||
Illumination | - | - | Upper/lower LED lighting with independent switches and adjustable brightness | |
Stand Type | Vertical column | Arm stand | Vertical column | |
Stand Height | 240mm | 300mm | 240mm | |
Stand Diameter | φ32mm | - | - | - |
Focusing Travel | - | 100mm | - | |
Lens Barrel Aperture | - | φ76mm | - | |
Base Accessories | With clips + φ95mm glass stage plate + black/white work plate | - | - | |
Base Dimensions | 285x238mm |
Specification | TL7045(T)-J1 | TL7045(T)-J2 | TL7045(T)-J3 | TL7045(T)-J4 |
Observation Head Tilt | 45º | |||
Zoom Ratio | 01:06.4 | |||
Eyepiece | WF10X/20mm | |||
Objective Lens | 0.7x-4.5x | |||
Magnification | 7x-45x | |||
Interpupillary Distance | 55-75mm | |||
Working Distance | 100mm | |||
Illumination | - | - | Upper/lower LED lighting with independent switches and adjustable brightness | |
Stand Type | Vertical column | Arm stand | Vertical column | |
Stand Height | 240mm | 300mm | 240mm | |
Stand Diameter | φ32mm | - | - | - |
Focusing Travel | - | 100mm | - | |
Lens Barrel Aperture | - | φ76mm | - | |
Base Accessories | With clips + φ95mm glass stage plate + black/white work plate | - | - | |
Base Dimensions | 285x238mm |
