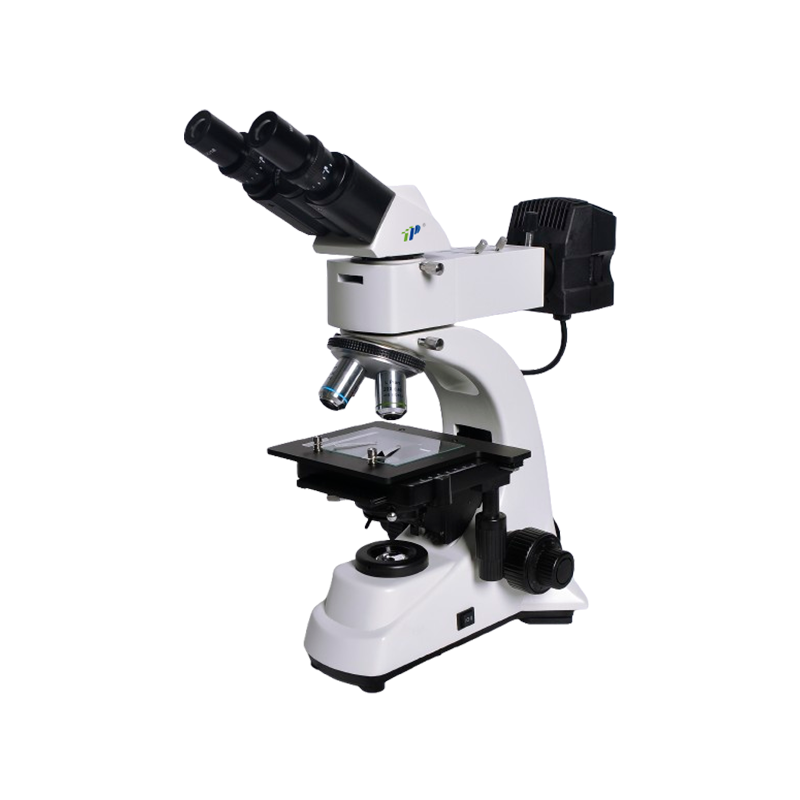

TJ1 Infinity Achromatic Biological Microscope with Reflected Light And Dual-Layer Mechanical Stage

Viewing Head: Binocular observation head with wide angle eyepiece WF10X/18mm
Objectives: Infinity achromatic objectives 4X, 10X, 40X (optional: 20X, 80X)
Stage: Double-deck mechanical stage, 150×140mm, travel range 75×50mm
Focus: Coaxial coarse and fine focusing mechanism
Illumination: Vertical reflected light system, 6V/20W halogen lamp, adjustable brightness
Filters: Blue, green, yellow, frosted glass film included
Optional: Polarising device and WF10X eyepiece with scale

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TJ1

  • TOP

The infinite-range optical system provides excellent optical performance and is widely used in the mechanical and mineral industries for tissue identification of metals, rocks and ores, etc., as well as in the semiconductor and electronic industries for the inspection of crystals and integrated circuits and scientific research. The microscope is also equipped with transmission illumination, imaging and observation system, which can be used for biological and pathological research.

Components

Specification

TJ1

Viewing Head

Binocular observation head

Eyepieces

Wide Angle Eyepiece WF10X/18mm
Wide Field Eyepiece WF10X/18mm with 0.1mm Scale and Cross Section


Infinity achromatic objective

4X/0.1/∞/-WD25.4mm
10X/0.25/∞/-WD11.0mm
20X/0.40/∞/-WD6.0mm
40X/0.60/∞/-WD3.7mm
80X/0.90/∞/-WD0.2mm





Converter

Four-hole converter

Loading platform

Double deck movable platform, dimensions 150x140mm, range of movement 75x50mm

Focus Adjustment

Coaxial coarse and fine focusing mechanism

Lighting

Cora lighting, vertical lighting system with aperture variable light bar and field of view variable light bar;
reflected light illumination, 6V 20W halogen lamp. Adjustable brightness

Colour Filters

Blue, green, yellow, frosted glass film

Polarising device




 Annotate:  ●: essential component  ○: option
