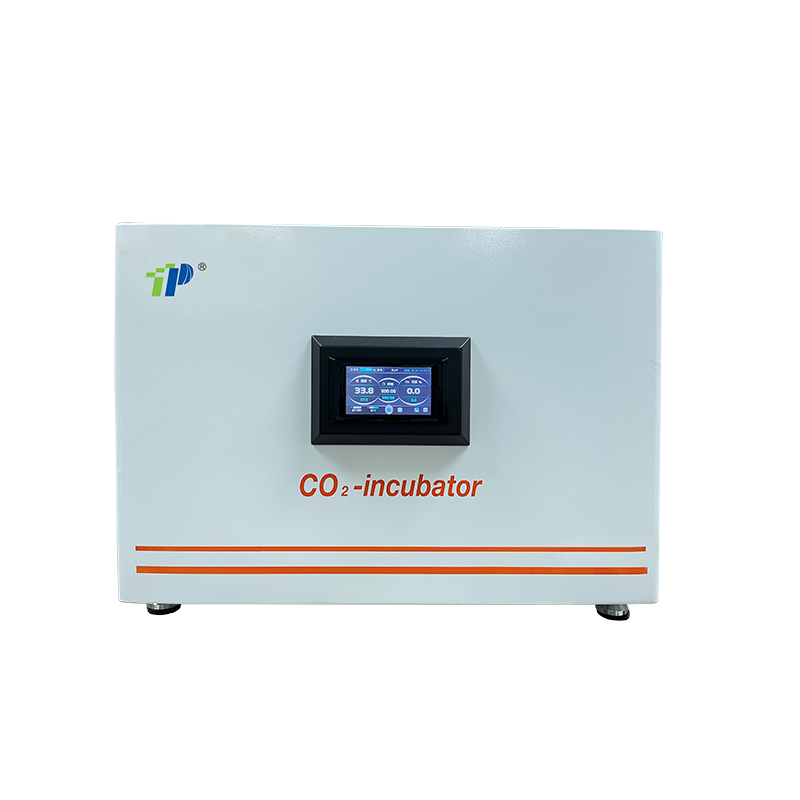

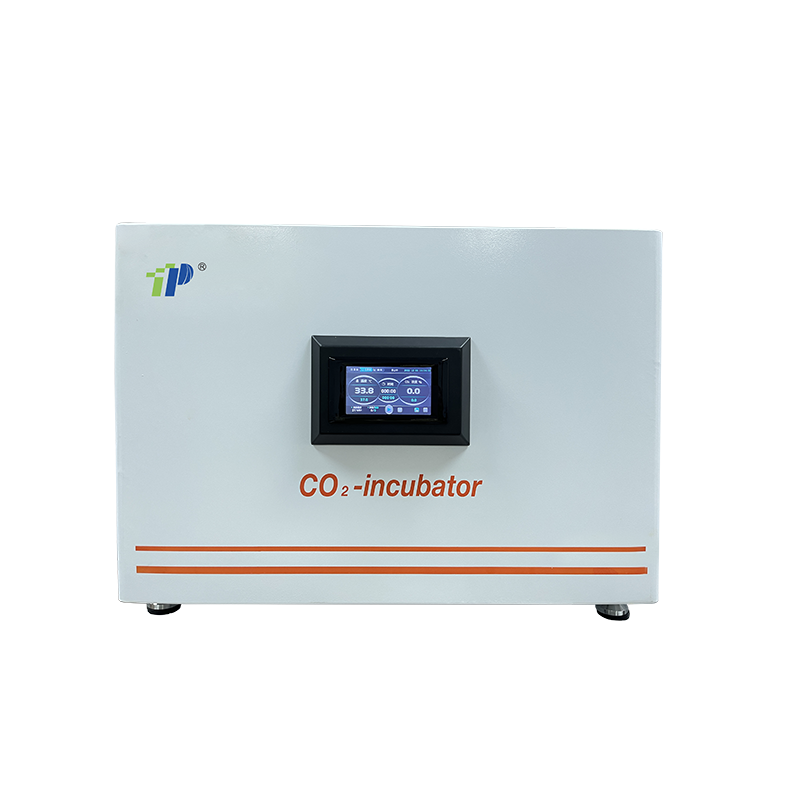

TCO-80
TOP
1. Operating environment
1.1 Power supply: 220V AC, 50/60HZ
1.2 Ambient temperature: 5℃～50℃.
1.3 Relative humidity: ≤85%.
2. Technical parameters

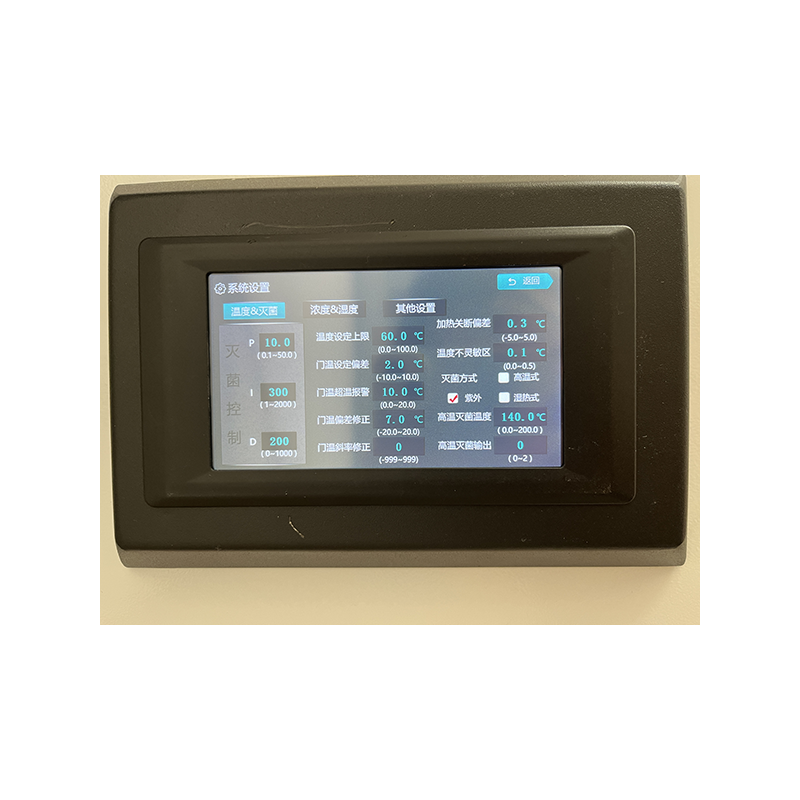

2.0. Touch display 5 inches, display temperature, humidity, CO2 concentration, easy to operate;
2.1. Adopting PID microcomputer environment scanning processing chip, stable equipment operation;

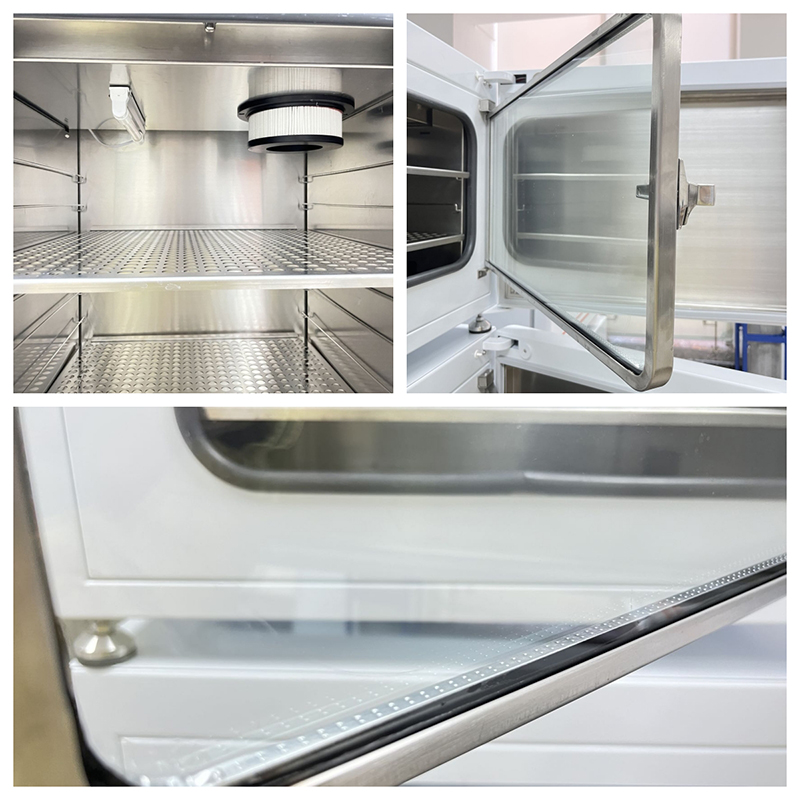

2.2. Gas jacket heating system, 7-sided heating, temperature and humidity recovery speed.
2.3. External dimensions: W669*D700*H551mm, liner size: W472*D589*H390mm, internal effective volume of 100L;
2.4. The minimum temperature control range is RT+5-60℃;
2.5. Pt100 temperature sensor, temperature control accuracy: ± 0.1 ℃;

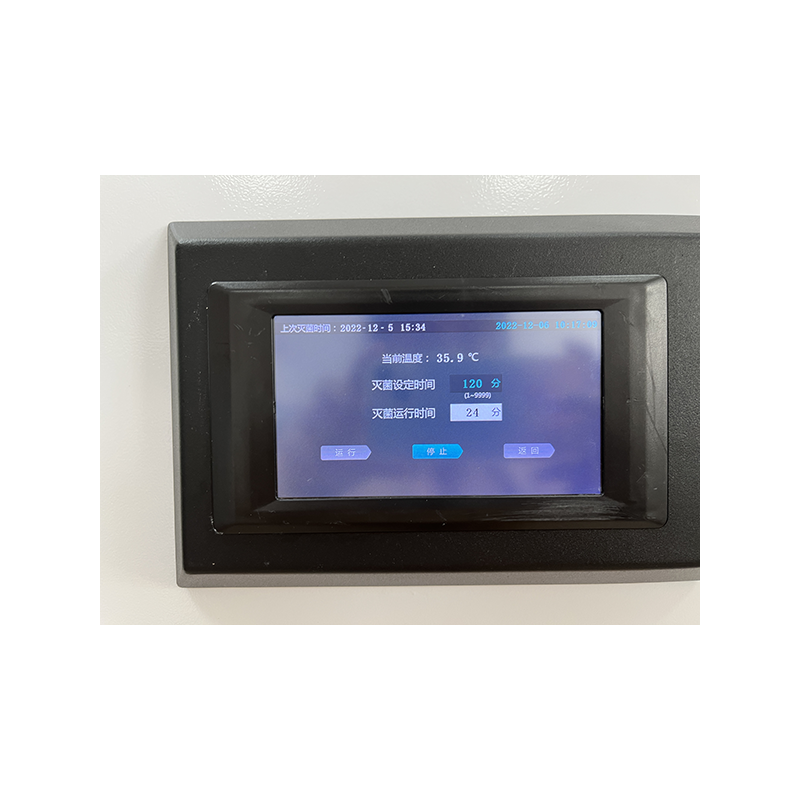

2.6. At the same time with three kinds of disinfection: UV sterilization and 90 ℃ wet heat sterilization, 180 ℃ three kinds of sterilization, sterilization thorough, effective removal of bacteria, mould, fungal spores and mycoplasma;
2.7. The infrared CO2 concentration sensor has an auto-start function without calibration, control range: 0-20%, control accuracy 0.1%, ensuring high accuracy of CO2 concentration;
2.8. The CO2 air inlet is equipped with HEPA high-efficiency filter, with a filtration efficiency of 99.998% for particles of particle size ≥0.3μm;
2.9. The stainless steel of the inner chamber and accessories is treated with special electrochemical treatment;
2.10. No water tray design, the use of humidity range: 90% RH ± 5% RH;
2.11. With a unique circulating air duct design, non-natural convection, to ensure the uniformity of temperature, humidity, CO2 concentration;
2.12. With double glass door heating and outer door heating function, effectively avoid condensation on the glass door;
2.13. Can be stacked and placed to save laboratory space;
2.14. Safety devices: over-current leakage protection switch, temperature, C02 concentration abnormal alarm. When the parameters in the box is abnormal, the system beeping alarm;
2.15. The system automatically saves up to 10,000 minutes of parameter data, you can always view the curve record of any day in the last 15 days;
3. Configuration list

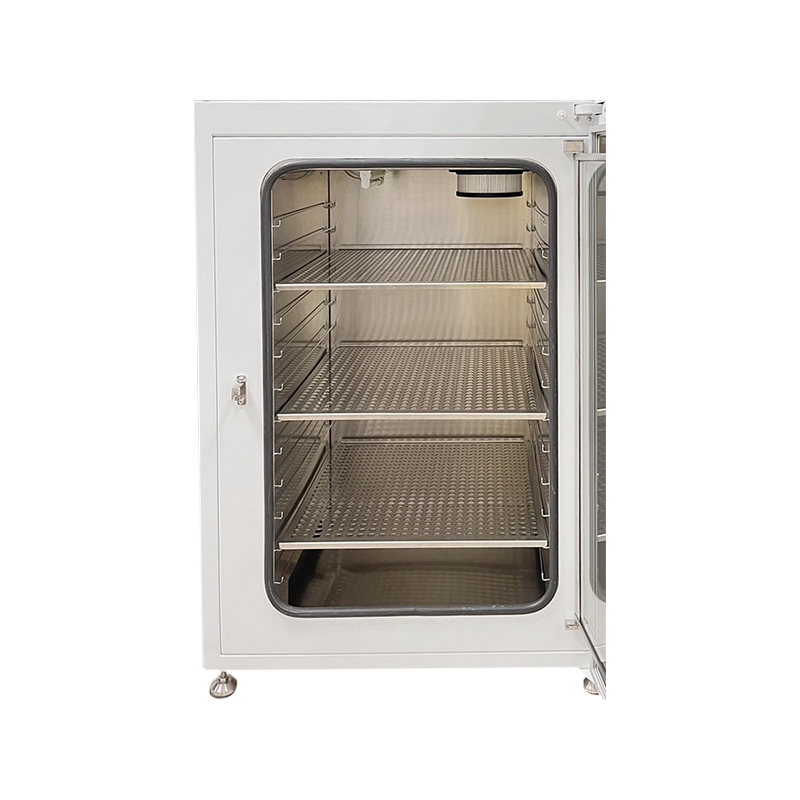

3.1. 1 set of main machine (including 2 pieces of partition board, 2m of air tube, power cord, manual)
1. Operating environment
1.1 Power supply: 220V AC, 50/60HZ
1.2 Ambient temperature: 5℃～50℃.
1.3 Relative humidity: ≤85%.
2. Technical parameters
2.0. Touch display 5 inches, display temperature, humidity, CO2 concentration, easy to operate;
2.1. Adopting PID microcomputer environment scanning processing chip, stable equipment operation;
2.2. Gas jacket heating system, 7-sided heating, temperature and humidity recovery speed.
2.3. External dimensions: W669*D700*H551mm, liner size: W472*D589*H390mm, internal effective volume of 100L;
2.4. The minimum temperature control range is RT+5-60℃;
2.5. Pt100 temperature sensor, temperature control accuracy: ± 0.1 ℃;
2.6. At the same time with three kinds of disinfection: UV sterilization and 90 ℃ wet heat sterilization, 180 ℃ three kinds of sterilization, sterilization thorough, effective removal of bacteria, mould, fungal spores and mycoplasma;
2.7. The infrared CO2 concentration sensor has an auto-start function without calibration, control range: 0-20%, control accuracy 0.1%, ensuring high accuracy of CO2 concentration;
2.8. The CO2 air inlet is equipped with HEPA high-efficiency filter, with a filtration efficiency of 99.998% for particles of particle size ≥0.3μm;
2.9. The stainless steel of the inner chamber and accessories is treated with special electrochemical treatment;
2.10. No water tray design, the use of humidity range: 90% RH ± 5% RH;
2.11. With a unique circulating air duct design, non-natural convection, to ensure the uniformity of temperature, humidity, CO2 concentration;
2.12. With double glass door heating and outer door heating function, effectively avoid condensation on the glass door;
2.13. Can be stacked and placed to save laboratory space;
2.14. Safety devices: over-current leakage protection switch, temperature, C02 concentration abnormal alarm. When the parameters in the box is abnormal, the system beeping alarm;
2.15. The system automatically saves up to 10,000 minutes of parameter data, you can always view the curve record of any day in the last 15 days;
3. Configuration list
3.1. 1 set of main machine (including 2 pieces of partition board, 2m of air tube, power cord, manual)
