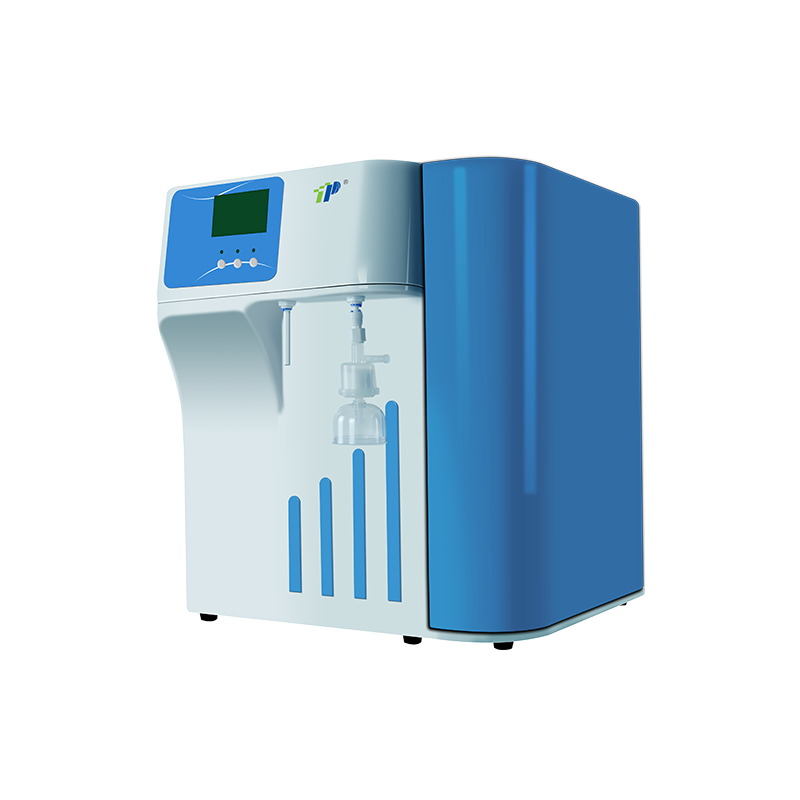

PT Series Laboratory Ultrapure Water System with UV Sterilization, Dual Water Monitoring & 10/20/30 LPH Capacity
You are here: home » Products » Laboratory Water Purification » Pure Water Systems » PT Series Laboratory Ultrapure Water System with UV Sterilization, Dual Water Monitoring & 10/20/30 LPH Capacity

Product Category

loading

PT Series Laboratory Ultrapure Water System with UV Sterilization, Dual Water Monitoring & 10/20/30 LPH Capacity

Water production capacity: 10/20/30 liters per hour
Built-in 10 micron 316L stainless steel precision filter and long-life KDF filter for heavy metal and chlorine removal
Dual waterway online monitoring with backlit LCD display for RO conductivity and ultrapure resistivity
RO rejection rate: 97%-99%; ultrapure water resistivity: 18.25 MΩ·cm at 25℃
Advanced dual-wavelength UV sterilization and 5000D ultrafiltration module for endotoxin removal
Portable TDS test pen included; automatic filter replacement reminders and multiple alarm protections
System configuration includes host machine, 12L pressure water storage tank, TDS pen, and accessory kit

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PT series

  • TOP

  • Built-in filter, with 10 micron 316L stainless steel precision filter screen to remove fine impurities instead of PP cotton filter; manual drain valve, automatic cleaning at any time, soft scraping design for more thorough drainage, transparent shell make filtration effect visual.

  • The long-acting KDF device adopts the original imported filter material . It removes residual chlorine, heavy metals, and inhibits the growth of fungi at the front of water purification. It has a long service life, better protects the post-purification system, and extends lifetime of ultra-purification column

  • Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.

  • ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, door is open at the side

  • Type U Korean quick-insert filters, used imported filtering materials.

  • Backlight LCD display,dual waterway online monitoring, which can simultaneously display RO conductivity value,UP resistance value and equipment operating status indication.

  • Menu-type operation, parameters can be set and modified, operating status display and indication light indicate to promptly reflect machine operating status such as  high-pressure shutdown, low-pressure alarm, water full shutdown, etc.

  • Alarming for water quality exceeding, automatic filters replacement reminding, water intake time can be set. Take water by touched key, Automatic indication light indicate RO and UP water intake.

  • Equipped with a portable test pen, which can test TDS content, conductance and water temperature anytime, anywhere

  • The pipeline adopts a quick-plug interface, the pipe joint passes NSF certification, dual-wavelength UV lamps, effectively sterilizes and reduces TOC, and the original imported 5000D ultra filtration module effectively removes pyrogen.

  • With RS-232C communication interface output, it can be connected with intelligent instruments with RS-232C interface to realize the transmission of measurement data or print records (optional)


PT series ultrapure water machine

Type classification

Standard

Low Endotoxin

Low TOC

Comprehensive

The machine model

PT

PT-F

PT-V

PT-VF

Water rate

10/20/30 lph

The water requirements

Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃


RO water Parameter

Ion rejection rate

97%-99% (when using a new RO membrane)

Organic matter rejection rate

>99% when MW>200 Dalton

Particle and bacterial rejection

> 99%


UP water Parameter(ASTM TYPE I grade water)

Resistivity (25℃)

18.25 M Ω. Cm @ 25 ℃

Heavy metal ion

< 0.01 ppb

Total organic carbon (TOC) *

<10 ppb

<3 ppb

bacteria

< 1 cfu/ml *(with terminal filter)

Particulate matter (> 0.1 microns)

<1/ml

Pyrogen (endotoxin)

N/A

< 0.001 Eu/ml

N/A

< 0.001 Eu/ml

Ribonuclease (RNases)

N/A

<1pg/ml

N/A

<1pg/ml

Deoxyribonucleases

N/A

<5pg/ml

N/A

<5pg/ml

Application

All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

Electrical requirements

100-240V, 50/60Hz, 48-72W

The system configuration

Host machine (including 1 set of purification column)+12L pressure water storage tank +TDS pen + accessory bag
