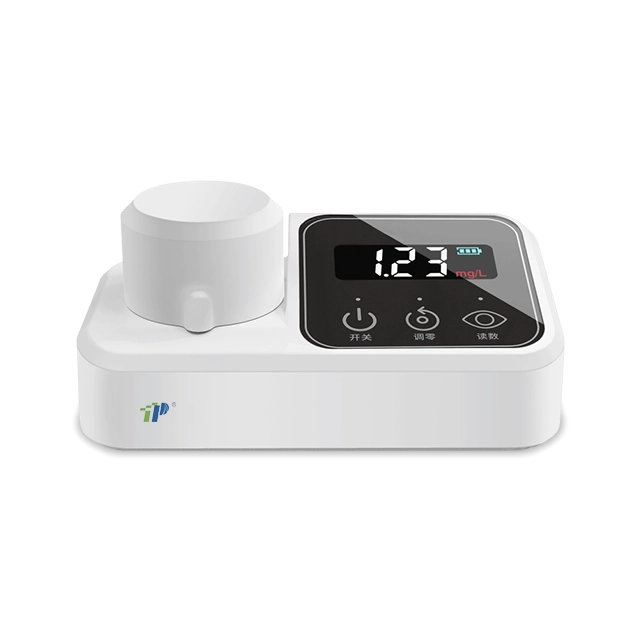

PT-C06F Portable Residual Chlorine Meter | DPD Photometric Water Quality Analyzer for Drinking, Swimming & Environmental Water

Measurement Range: 0.05–10.00 mg/L total residual chlorine
Accuracy: ≤ ±0.05 mg/L (<1 mg/L), ≤ ±5% (≥1 mg/L)
Wavelength: 520 nm, LED light source
Operation: Intuitive display, simple operation, fast analysis with low reagent use
Portability: Compact (128×70×48 mm), lightweight (188 g), IP65 protection
Battery Life: Over 24 hours continuous use
Principle: DPD spectrophotometric method, compliant with HJ586-2010 standard

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PT-C06F

  • TOP

PT-C06F instrument is designed for the determination of total residual chlorine in water using the DPD photometric method, which has been proved to be simple, fast and highly sensitive in numerous experiments. The instrument is small, lightweight, portable and suitable for field and on-site use, and has the following distinctive features.


It is widely used in scientific research institutes, tap water, hospital sewage, swimming pool water, domestic sewage, aquaculture water, environmental monitoring, petrochemical, papermaking, pharmaceutical, printing and dyeing, textile, leather, brewing, electronics, municipal government, colleges and universities, etc., and has been highly praised by the majority of users.


Product features


1. Lightweight and portable: small size, light weight, protection grade IP65.

2. Professional light path design: professional light path design, good stability of the optical system.

3. Fast analysis speed: Low sample and reagent usage, fast analysis speed.

4. Automatic shutdown: Power-saving function with automatic shutdown and long standby time.

5. Simple operation: intuitive display, easy to operate.


Application Scope


- Municipal water

- Public health

- Medical water

- Environmental monitoring


Basic parameters

Measuring Range

0.05〜10.00mg/L

Light source

LED light-emitting diode

Wavelength

520nm

Accuracy

<1.0mg/L error: ≤±0.05mg/L; ≥1.0mg/L error: ≤±5 per cent

Principle

Refer to HJ586-2010 National Environmental Protection Standard ‘Determination of Free Chlorine and Total Chlorine in Water N, N-⼆⼄⼄基-1,4-benzene⼆amine Spectrophotometric Method’.

Environment

Temperature 0 to 40°C, relative humidity 0 to 90% (non-condensing)

Battery life

More than 24 hours (without switching off)

Dimension

128×70×48mm

Weight

188g (including battery)
