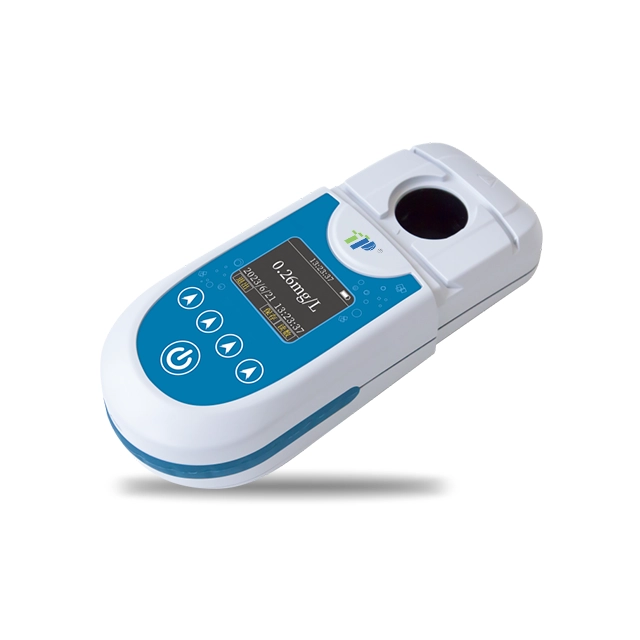

PT-XZ03
TOP
Product Description:
This instrument combines the scattered light method and transmitted light method, the instrument is equipped with two detectors, 90° and 180°, 180° detector receives transmitted light, 90° detector receives scattered light, the ratio of the intensity of scattered light and transmitted light is directly proportional to the concentration of turbidity and suspended solids in the sample, you can calculate the concentration of turbidity and suspended solids in the sample through the determination of the ratio of the intensity of scattered light and transmitted light.
Product Description:
This instrument combines the scattered light method and transmitted light method, the instrument is equipped with two detectors, 90° and 180°, 180° detector receives transmitted light, 90° detector receives scattered light, the ratio of the intensity of scattered light and transmitted light is directly proportional to the concentration of turbidity and suspended solids in the sample, you can calculate the concentration of turbidity and suspended solids in the sample through the determination of the ratio of the intensity of scattered light and transmitted light.
Product features:
1. Dual Detection Technology: 180°x90° optical path and dual detector technology are used to eliminate measurement uncertainties, resulting in more accurate and reliable measurement results.
2. High-performance processing chip: The high computing power provided by the powerful chip, combined with the high performance of the software, the data processing power has never been so powerful.
3. High-precision optical structure for accurate and stable measurements: The instrument uses a near-infrared LED light source, an incoming focused beam, and a focusing lens to provide accurate and repeatable test results.
4. Powerful data storage: test results are automatically saved, supporting the storage of 5000 test results, making it easy to search for historical data.
5. Turbidity in line with ISO7027/HJ1075-2019 standard.
6. Optional imported turbidity calibration fluid.
7. Turbidity support 9 points arbitrary calibration.
Scope of application
- Industrial wastewater
- Swimming pool water
- Drinking water
- Waterworks
- Food hygiene
- Surface water
Product features:
1. Dual Detection Technology: 180°x90° optical path and dual detector technology are used to eliminate measurement uncertainties, resulting in more accurate and reliable measurement results.
2. High-performance processing chip: The high computing power provided by the powerful chip, combined with the high performance of the software, the data processing power has never been so powerful.
3. High-precision optical structure for accurate and stable measurements: The instrument uses a near-infrared LED light source, an incoming focused beam, and a focusing lens to provide accurate and repeatable test results.
4. Powerful data storage: test results are automatically saved, supporting the storage of 5000 test results, making it easy to search for historical data.
5. Turbidity in line with ISO7027/HJ1075-2019 standard.
6. Optional imported turbidity calibration fluid.
7. Turbidity support 9 points arbitrary calibration.
Scope of application
- Industrial wastewater
- Swimming pool water
- Drinking water
- Waterworks
- Food hygiene
- Surface water
Technical Parameters:
Item | turbidity | suspension (of atmospheric pollution) |
Range | 0~1000NTU | 0~1000mg/L |
Resolution | 0.01/0.1/1.0NTU | 0.01/0.1/1.0mg/L |
Display Error | <1NTU hourly,≤±0.1NTU; >1NTU hourly,<4NTUhourly,≤±0.2NTU; >4NTU hourly,≤±5% | <1mg/L hourly,≤±0.1mg/L; >1mg/L hourly,<4mg/Lhourly,≤±0.2mg/L; >4mg/L hourly,≤±5% |
Repeatability | <10NTU hourly,≤±0.1NTU; >10NTU hourly,≤±1%; | <10mg/L hourly,≤±0.1mg/L; >10mg/L hourly,≤±1%; |
Zero drift | ≤±0.3%F.S/30each minute | |
Operating Temperature | 5~40℃ | |
Storage Temperature | -10~55℃ | |
Humidity | 0~80%RH | |
Power supply | Lithium battery (optional dry cell) | |
Protection class | IP65 | |
Dimension | 170x72x44mm | |
Weight | 290g |
Technical Parameters:
Item | turbidity | suspension (of atmospheric pollution) |
Range | 0~1000NTU | 0~1000mg/L |
Resolution | 0.01/0.1/1.0NTU | 0.01/0.1/1.0mg/L |
Display Error | <1NTU hourly,≤±0.1NTU; >1NTU hourly,<4NTUhourly,≤±0.2NTU; >4NTU hourly,≤±5% | <1mg/L hourly,≤±0.1mg/L; >1mg/L hourly,<4mg/Lhourly,≤±0.2mg/L; >4mg/L hourly,≤±5% |
Repeatability | <10NTU hourly,≤±0.1NTU; >10NTU hourly,≤±1%; | <10mg/L hourly,≤±0.1mg/L; >10mg/L hourly,≤±1%; |
Zero drift | ≤±0.3%F.S/30each minute | |
Operating Temperature | 5~40℃ | |
Storage Temperature | -10~55℃ | |
Humidity | 0~80%RH | |
Power supply | Lithium battery (optional dry cell) | |
Protection class | IP65 | |
Dimension | 170x72x44mm | |
Weight | 290g |
