PNY Series Orbital and Reciprocal Shakers – High-Capacity, PID Control, LCD Display, 20–300 rpm Speed Range

You are here: home » Products » Lab Shakers » Orbital shakers » PNY Series Orbital and Reciprocal Shakers – High-Capacity, PID Control, LCD Display, 20–300 rpm Speed Range

Product Category

PNY Series Orbital and Reciprocal Shakers – High-Capacity, PID Control, LCD Display, 20–300 rpm Speed Range

Control System: PID microprocessor control with LCD digital display
Shaking Modes: Orbital (Convolution) or Reciprocal, depending on model
Speed Range: 20–150/260/280/300 rpm (model-dependent), sensitivity ±1 rpm
Orbit Diameter: Φ26 mm or 0–50 mm (model-dependent)
Maximum Capacity: Up to 3 L × 24 flasks or 250 ml × 160 flasks
Platform Size: 800×600 mm or 950×730 mm; single or double platform options
Timing Range: 0–9999 h/min, continuous or timed operation

Quantity:
Availability:





Inquire Add to Basket

Model:
PNY series
Brand:
TOP

(Model)	PNY-851	PNY-871	PNY-881F
(Specifications)	PNY-851	PNY-871	PNY-881F
Control model	P.I.D microprocessor chip
Shake model	Convolution		Reciprocate
Display	LCD（digital display）
Drive mode	Multidimensional drive		Track drive
Cyclotron frequency range(rpm/min)	20-300	20-280	20-260
Cyclotron frequency sensitivity(rpm)	±1
Orbit Diameter(mm)	Φ26		0-50
Maximum capacity	250ML×48 OR 500ML×33 OR 1000ML×20	250ml×80 OR 500ml×53 OR 1L×30 OR 2L×20 OR 3L×12	250ML×48 OR 500ML×33 OR 1000ML×20
Standard capacity	1000ML×18	1000ML×30	1000ML×18
Size of platform (mm)	800×600	950×730	800×600
Number of platform	ONE
Outside dimension (WDH) (mm)	900×650×600	1040×760×595	900×650×600
Power（W)	200	300	200
Power supply	AC220±10% 0HZ
Timing range(h/min)	0-9999h/min(Any time,continuous duty)

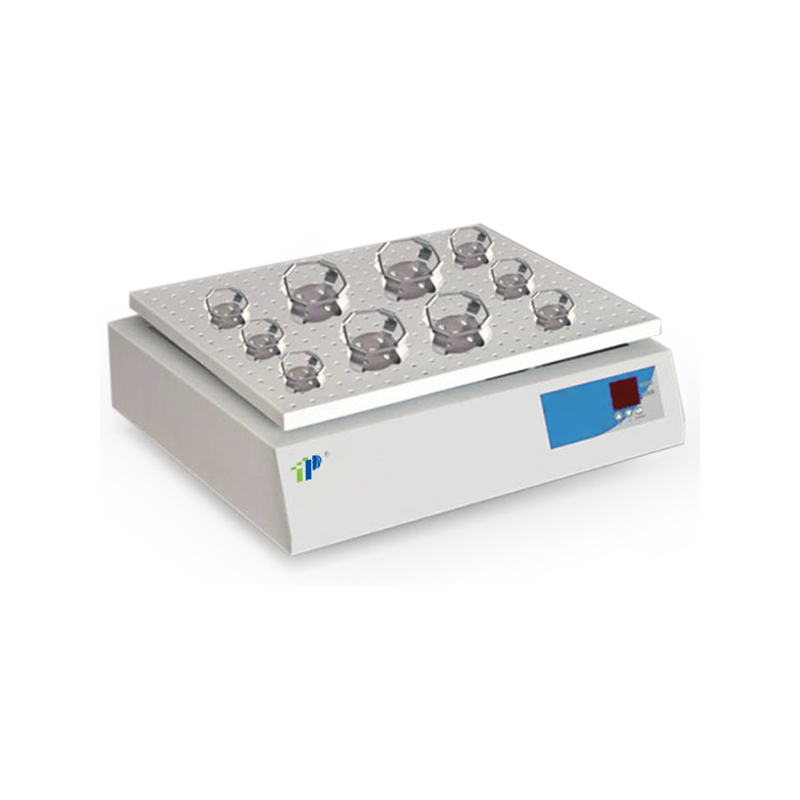

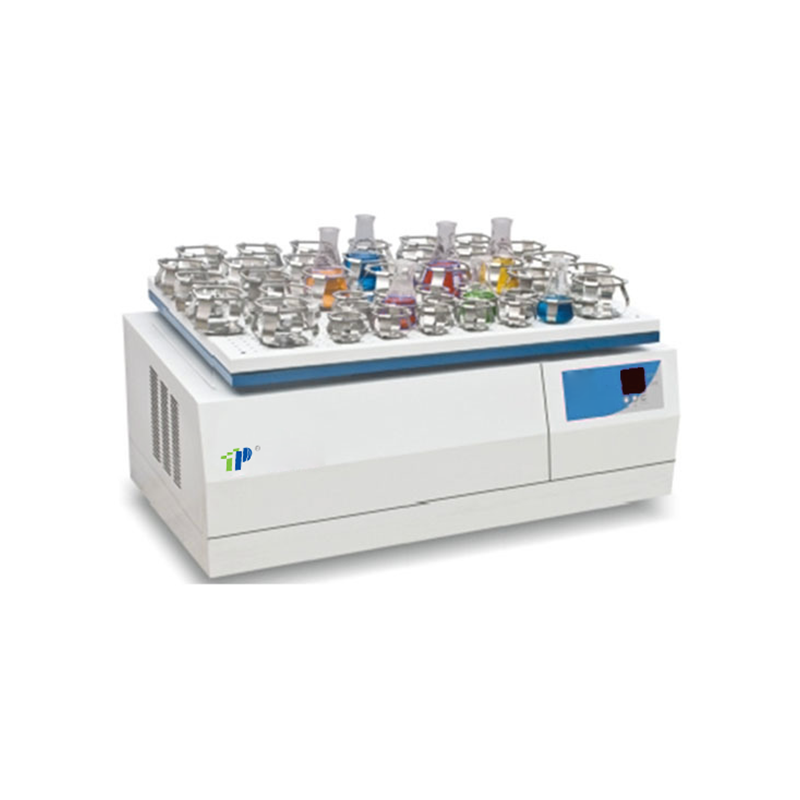

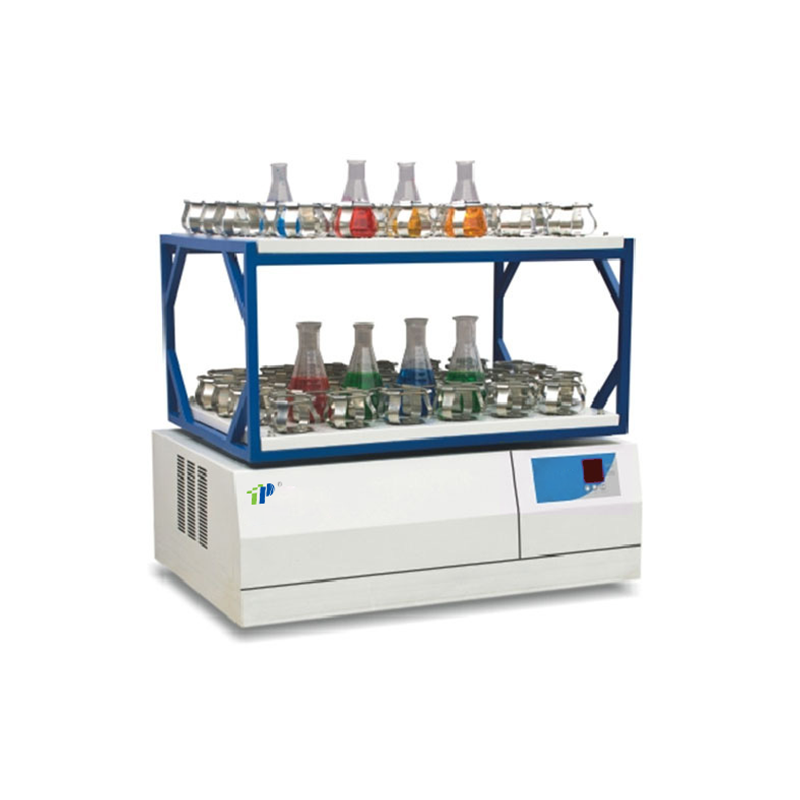

Product picture:

810 830F

Shake bottle machine Automatic bottle shaker Laboratory bottle shaker Industrial bottle shaking equipment Orbital bottle shaker High speed bottle mixer Pharmaceutical bottle shaker Magnetic bottle stirrer Vortex bottle mixer Test tube and bottle shaker

Product Category

PNY Series Orbital and Reciprocal Shakers – High-Capacity, PID Control, LCD Display, 20–300 rpm Speed Range

Related Products

QUICK LINKS

PRODUCT CATEGORY

CONTACT US

(Model)	PNY-852	PNY-872	PNY-882F
(Specifications)
Control model	P.I.D microprocessor chip
Shake model	Convolution	Reciprocate	Convolution
Display	LCD（digital display）
Drive mode	Multidimensional drive	Track drive	Multidimensional drive
Cyclotron frequency range(rpm/min)	20-300	20-260	20-150
Cyclotron frequency sensitivity(rpm)	±1
Orbit Diameter(mm)	Φ26	0-50	Φ26
Maximum capacity	250ML×96 OR 500ML×66 OR 1000ML×40		250ml×160 OR 500ml×106 OR 1L×60 OR 2L×40 OR 3L×24
Standard capacity	250ML×46,1000ML×18		250ml×71 1L×30
Size of platform(mm)	800×600		950×730
Number of platform	TWO
Outside dimension（WDH)（mm）	900×650×900		1040×760×1050
Power（W)	200		300
Power supply	AC220±10% 50HZ
Net weight(kg)	360
Gross weight(kg)	410
Timing range(h/min)	0-9999h/min(Any time,continuous duty)
