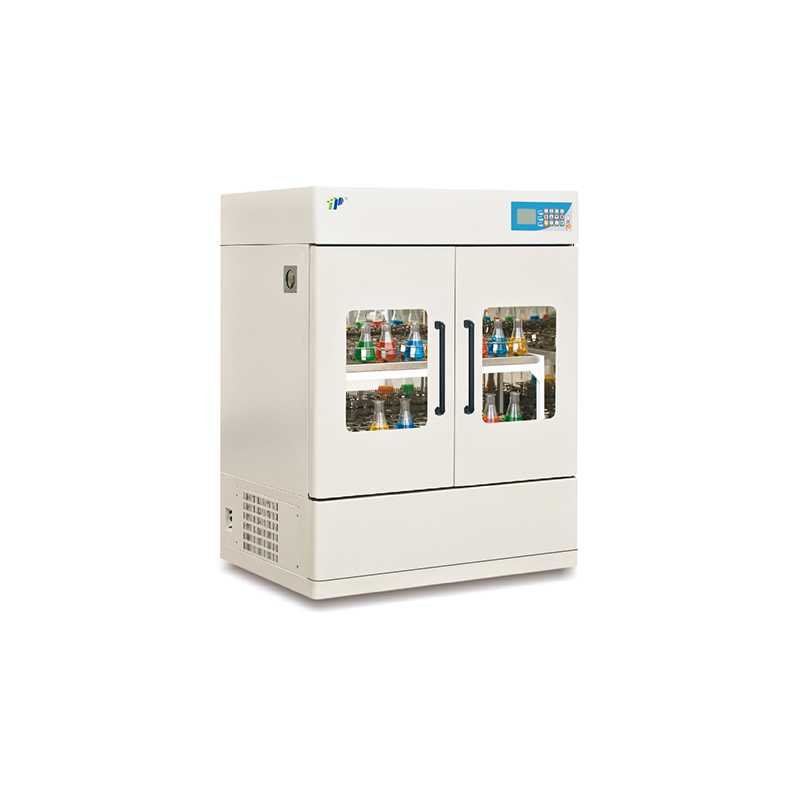

PNY-1112 Series Programmable Laboratory Shaker | Multi-Platform Temperature & Speed Controlled Shaker with LCD Display

Temperature Range: Ambient +5°C to 65°C, high-precision PID control (±0.1°C)
Speed Range: 0–260/280 rpm, PID-controlled motor with ±1 rpm accuracy
Capacity: 250 mL×90, 500 mL×72, 1000 mL×42, platform size 950×550 mm, 2 platforms
Display: LCD screen with bright illumination, visualizing parameters, clock & date (touch screen for some models)
Features: Multi-step programmable speed, temperature, and time; slow-start/stop; parameter memory & encryption; audible & visual alarms; optional UV/light disinfection
Power Supply: AC 220V ±10%, 50 Hz; Power: 1100 W; Overall Dimension: 1200×800×1630 mm

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PNY-1112 series

  • TOP

  • Automatic analyzing, listing table, charting and printing on downloaded dates. It can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.

  • High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.

  • Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.

  • Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.

  • Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.

  • Automatic defrosting function. It makes shakers operating stably in low temperature for a long time.

  • High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM

  • High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,

  • Unique drive system. It makes the machine running smoothly, stably, durably and reliably.

  • LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.

  • Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.

  • Function of encrypted and locked operating parameters. It can avoid human errors.

  • Continuously running or timing. Shakers can display the set time and time remaining

  • Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments

  • Clock and date can be displayed (touch screen only).

(Model)

PNY-1112FPNY-1112B

(Specifications)

Control model

P.I.D microprocessor chip

Convection model

forced convection

Shake model

convolution

Display

LCD liquid-crystal display

Drive mode


Track drive

Multidimensional drive

Control system

Multiple Programmable mode (temp,speed,time)

Cyclotron frequency range(rpm/min)

0;20-260 (To do static culture)

0;20-280 (To do static culture)

Cyclotron frequency sensitivity(rpm)

±1

Orbit Diameter(mm)

0-50

Φ26

Maximum capacity

250ML×90 OR 500ML×72 OR 1000ML×42

250ML×90 OR 500ML×72 OR 1000ML×42

Standard capacity

250ml×45  500ml×36


250ml×45  500ml×36

Size of platform(mm)


950×550

Timing range(h)

0-9999h/min(Any time,continuous duty)

Temperature range(℃)

ambient +5°Cto 65°C( no refrigeration)

Temperature regulate sensitivity(℃)

±0.1

Temperature uniformity(℃)

±0.5(37℃)

Temperature uniformity(℃)

≤0.1(37℃)

Number of platform

two

Outside dimension(W*D*H)(mm)

1200×800×1630

Capacity(L)

580

Power(W)

1100

Power supply

AC220±10%  50HZ

Other functions

Ultra-low speed start, Adjustable start speed,Overspeed auto-prtection,Watch dog timer,Parameters Storage,Encryption parameters,Electricity incoming recovery,Refrigeration unit overload protection,Sound and light alarm when upper and lower overtemperature,Automatically stop when opening the door (optional),Function of lighting and UV disinfection
