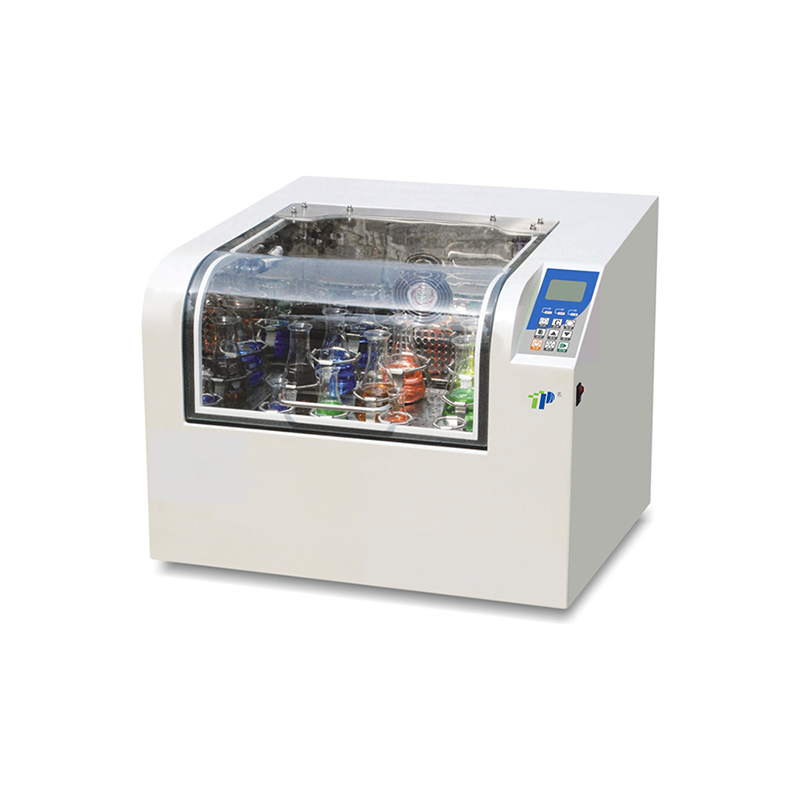

PNY-100BH / PNY-200BH Temperature-Controlled Orbital Shaker with LCD Display, Programmable Speed & Time, High-Precision PID Control for Lab Experiments

Model: PNY-100BH / PNY-200BH, temperature-controlled orbital shaker with LCD display
Temperature range: Ambient +5°C to 65°C (PNY-100BH), 4°C to 65°C (PNY-200BH)
High-precision PID control: temperature ±0.1°C, speed ±1 RPM
Cyclotron frequency range: 100–1200 rpm / 100–800 rpm, orbit diameter Φ1.5–3 mm
Platform capacity: up to 12 × 96-well plates, platform size 450 × 410 mm
Multi-step programmable control: temperature, speed, time; slow-start & stop design
Safety & protection: open-door stop, over-speed/over-temperature alarm, parameter memory & encryption

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PNY-BH series

  • TOP

  • Automatic analyzing, listing table, charting and printing on downloaded dates. It can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.

  • High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.

  • Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.

  • Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.

  • Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.

  • Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.

  • Automatic defrosting function. It makes shakers operating stably in low temperature for a long time.

  • High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM

  • High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,

  • Unique drive system. It makes the machine running smoothly, stably, durably and reliably.

  • Open door protection. When the door opens, the machine stops running to protect the safety of the operator.

  • LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.

  • Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.

  • Function of encrypted and locked operating parameters. It can avoid human errors.

  • Continuously running or timing. Shakers can display the set time and time remaining

  • Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments

  • Clock and date can be displayed (touch screen only).

(Model)

PNY-100BH

PNY-200BH

(Specifications)

Control model

P.I.D microprocessor chip

Convection model

Forced convection

Shake model

Convolution

Display

LCD liquid-crystal display

Drive mode

Unidimensional drive

Control system

Multiple Programmable mode(temp,speed,time)

rpm/min                      Cyclotron frequency range(rpm/min)

0;100-1200(To do static culture) OR 100-800rpm/min

Cyclotron frequency sensitivity(rpm)

±1

Orbit Diameter(mm)

Φ1.5(OR φ3)

Standard capacity

12 96-well plates

Size of platform(mm)

450×410

Timing range(h)

0-9999h/min(Any time, continuous duty)

Temperature range(℃)

ambient +5°Cto 65°C(No refrigeration)

4°C to 65°C(refrigeration)

Temperature regulate sensitivity(℃)

±0.1

Temperature uniformity(℃)

±0.5(37℃)

Temperature uniformity(℃)

≤0.1(37℃)

Number of platform

one

Outside dimension(W*D*H)(mm)

750×710×520

Capacity(L)

70

Power(W)

550

650

Power supply

AC220±10%  50HZ

Net weight(kg)

75

110

Gross weight(kg)

105

140

Other functions

Ultra-low speed start, Adjustable start speed,Overspeed auto-prtection,Automatically stop when opening the door,Watch dog timer,Parameters Storage,Encryption parameters,Electricity incoming recovery,Refrigeration unit overload protection,Sound and light alarm when upper and lower overtemperature
