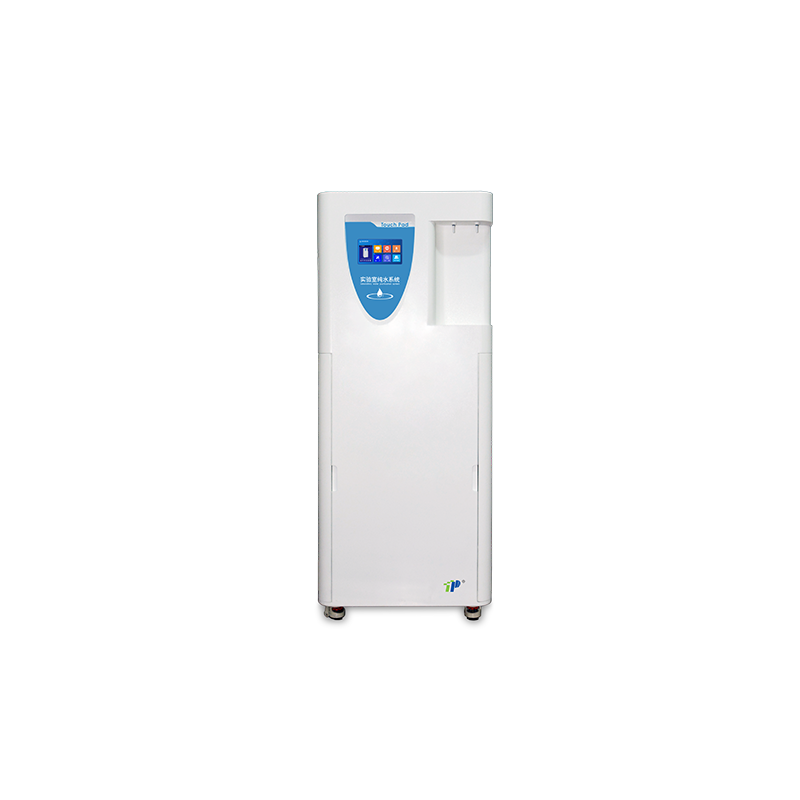

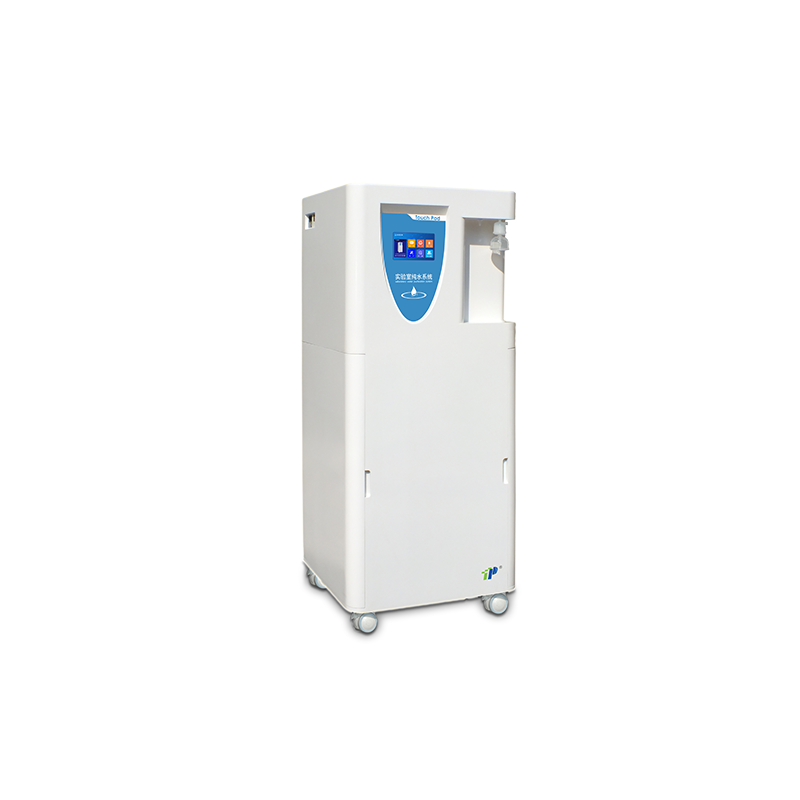

PLR-S Series
TOP
| Product | Basic | Eliminating Endotoxin | Low TOC | Synthesizing |
| Model | PLR-S45/63/95/125 | PLR-S45/63/95/125UF | PLR-S45/63/95/125UV | PLR-S45/63/95/125FV |
| Output-RO water | S45:45L/H; S63:63L/H; S95:95L/H; S125:125L/H | |||
| Output-Ultrapure water | Up to 2.0L/Min(When tank is full) | |||
| Feed water requirements | Tap water: conductivity<400μs, 5-45℃, 1.0-4.0Kgf/cm² (When TDS>400μs, optional pretreatment is suggested) | |||
| UP Ultrapure water quality | ||||
| Resistivity(25℃) | 18.25MΩ.cm | |||
| Heavy metal ion | <0.01ppb | |||
| TOC | <10ppb | <10ppb | <3ppb | <3ppb |
| Bacteria | <0.01cfu/ml | |||
| Particle(>0.22μm) | <1/ml | |||
| Pyrogen(Endotoxin) | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml |
| RNases | N/A | <1pg/ml | N/A | <1pg/ml |
| DNases | N/A | <5pg/ml | N/A | <5pg/ml |
| RO water quality | ||||
| Ion rejection rate | >98% (New RO membrane) | |||
| Organicrejection rate | >99%, when MW>200 Dalton | |||
| Particles and bacteria rejection rate | >99% | |||
| Dimension and weight | Width×Depth×Height:610×600×1500mm/Weight:about 70Kg | |||
| Electrical requirements | 100-240V,50/60Hz | |||
| Power | 250W | |||
| Standard configuration | Main system (including 1 full set of cartridges)+built-in tank+accessories bag | |||
| The value wil be influenced by temperature and feed water's quality. | ||||
