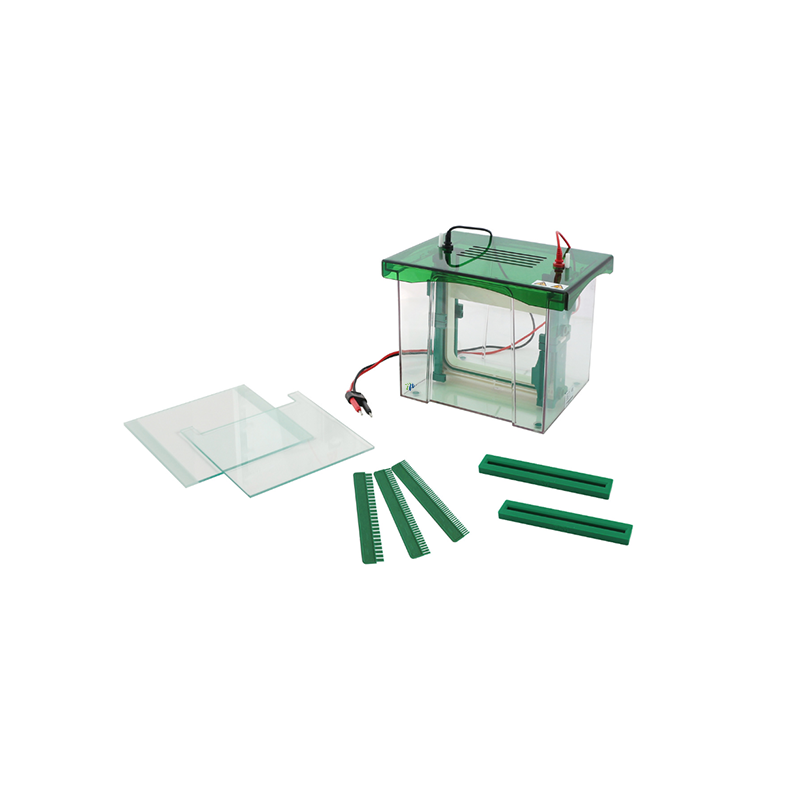

Large Vertical Gel Electrophoresis System TP-JX5L for High-Throughput Protein and DNA Analysis
Glass Plate Size: 216×220 mm
Gel Size: 186×205 mm, Thickness: 1.0 mm
Number of Gels: 1–2 pieces
Sample Volume: 25, 40, 52 wells (1.0 mm)
Buffer Volume: ~3500 ml
Dimension (L×W×H): 280×140×250 mm
Net Weight: 5.6 kg
Gel Size: 186×205 mm, Thickness: 1.0 mm
Number of Gels: 1–2 pieces
Sample Volume: 25, 40, 52 wells (1.0 mm)
Buffer Volume: ~3500 ml
Dimension (L×W×H): 280×140×250 mm
Net Weight: 5.6 kg
| Quantity: | |
|---|---|
-
TP-JX5L
-
TOP
Technical specifications
Glass plate size（W×L）:216×220 mm
Gel Size（W×L）:186×205 mm
Gel thickness: 1.0（mm）
Gel amount:1～2（pieces）
Sample volume:（1.0mm）25、40、52wells
Buffer Volume:～3500（ml）
Dimension（L×W×H）:280×140×250（mm）
Net weight:5.6（kg）
Characteristic features
The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
With the gel making device modular, you can make multi slab gel at the same time.
Safety cover open button design, convenient opening the cover.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
Technical specifications
Glass plate size（W×L）:216×220 mm
Gel Size（W×L）:186×205 mm
Gel thickness: 1.0（mm）
Gel amount:1～2（pieces）
Sample volume:（1.0mm）25、40、52wells
Buffer Volume:～3500（ml）
Dimension（L×W×H）:280×140×250（mm）
Net weight:5.6（kg）
Characteristic features
The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
With the gel making device modular, you can make multi slab gel at the same time.
Safety cover open button design, convenient opening the cover.
Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
