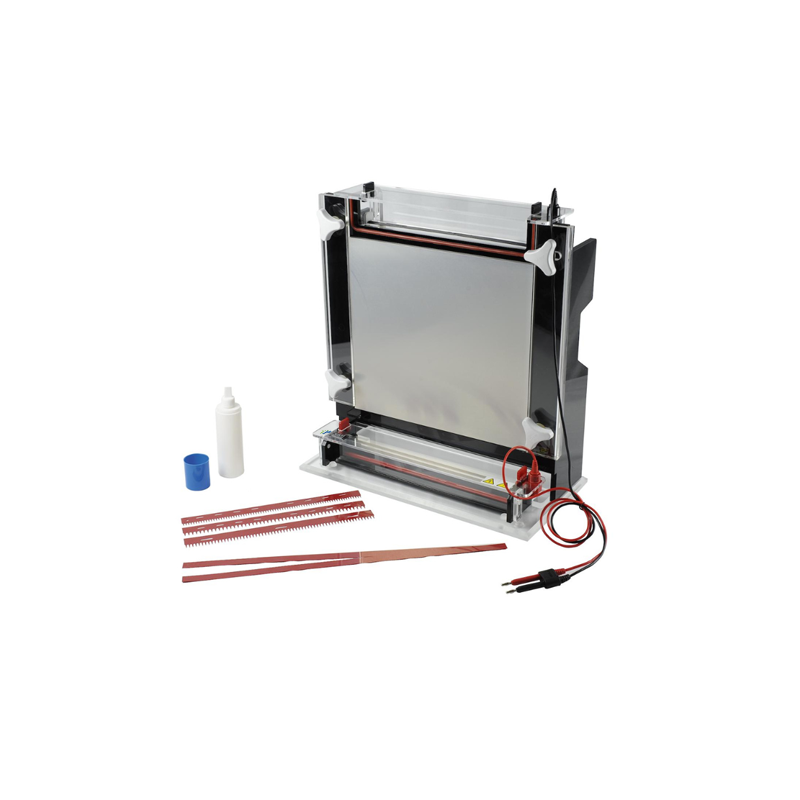

Large Format Vertical Gel Electrophoresis System TP-CX3B for High-Resolution Protein and DNA Analysis
Glass Plate Size: 350 × 350 mm
Gel Size: 330 × 320 mm
Gel Thickness: 0.4 mm
Sample Capacity: 50, 62, 74, 100 wells
Buffer Volume: ~750 ml
Dimensions (L × W × H): 460 × 230 × 400 mm
Net Weight: 13.2 kg
Gel Size: 330 × 320 mm
Gel Thickness: 0.4 mm
Sample Capacity: 50, 62, 74, 100 wells
Buffer Volume: ~750 ml
Dimensions (L × W × H): 460 × 230 × 400 mm
Net Weight: 13.2 kg
| Quantity: | |
|---|---|
-
TP-CX3B
-
TOP
Technical specifications
Glass plate size（W×L）:350×350 mm
Gel Size（W×L）:330×320 mm
Gel thickness:0.4（mm）
Gel amount:1（pieces）
Sample volume:（0.4mm）50、62、74、100wells
Buffer Volume:～750（ml）
Dimension（L×W×H）:460×230×400（mm）
Net weight:13.2（kg）
Characteristic features
Simple operation, only four fastening knobs needed.
50% buffer savings compared with traditional tanks.
Unfolded electrodes make repair and parts replacement easy and quick.
Special heat dissipation processed aluminum plate firmly clingsto the gel plates, which effectively guarantees the geltemperature is even, ensuring the electrophoresis trip is straighter.• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
Technical specifications
Glass plate size（W×L）:350×350 mm
Gel Size（W×L）:330×320 mm
Gel thickness:0.4（mm）
Gel amount:1（pieces）
Sample volume:（0.4mm）50、62、74、100wells
Buffer Volume:～750（ml）
Dimension（L×W×H）:460×230×400（mm）
Net weight:13.2（kg）
Characteristic features
Simple operation, only four fastening knobs needed.
50% buffer savings compared with traditional tanks.
Unfolded electrodes make repair and parts replacement easy and quick.
Special heat dissipation processed aluminum plate firmly clingsto the gel plates, which effectively guarantees the geltemperature is even, ensuring the electrophoresis trip is straighter.• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
Auto-switch-off when the lid is removed.
