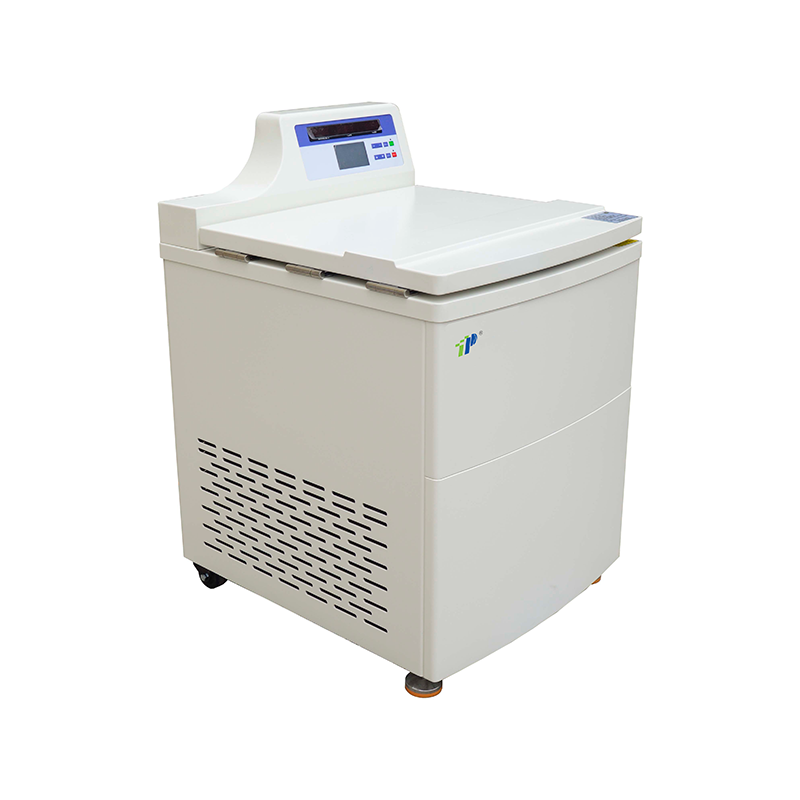

Large Capacity Cryogenic Centrifuge TGL-8MD | High Speed 10,000 rpm | Programmable Temperature Control

Maximum Speed: 10,000 rpm
Maximum Relative Centrifugal Force (RCF): 19,200×g
Maximum Capacity: 6 × 1000 ml
Temperature Control Range: -20℃ to +40℃, Accuracy ±2℃
Programmable 10-speed ramp up/down, timing range up to 99 hours 99 minutes
Noise Level: ≤65 dB(A)
Power Supply: AC 380V 50Hz, Power: 6.8 kW

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TGL-8MD

  • TOP

Main Features:


Application

The TGL-8MD ultra large capacity cryogenic centrifuge is specially developed and designed for customers with large capacity requirements. This model has a large sample processing capacity and is the preferred product in central blood stations, pharmaceutical factories, food colleges, biotechnology and other fields.


Feature:

1. Adopting an all steel mechanism and special shock absorbers to improve the stability of the machine and reduce noise and temperature rise;

2. Microcomputer control, indirectly driven by high torque variable frequency motor, color LCD display;

3. Automatically calculate and set the RCF value for centrifugal force. Programmable, 10 speed up/down curves, three-level damping and shock absorption;

4. Adopting a high-efficiency fluorine free refrigeration system with excellent constant temperature effect, which meets environmental protection requirements;

5. Adopting electronic door locks with functions such as overspeed, imbalance, overload, and door cover protection;

6. The rotor has a no installation structure, which is convenient and fast.




Machine parameters:


Maximum speed10000r/min
Maximum RCF19200×g
Speed accuracy±30r/min
Maximum preparation capacity1000ml×6
Timing range1min~99H99min
Temperature control range- 20℃~+40℃
Temperature control accuracy± 2 ℃
Power supplyAC380V 50HZ 15A
Whole machine noise≤ 65dB(A)
Total power6.8Kw
Weight330kg
Dimensions (L × W × H)885×760×960mm (mm)
