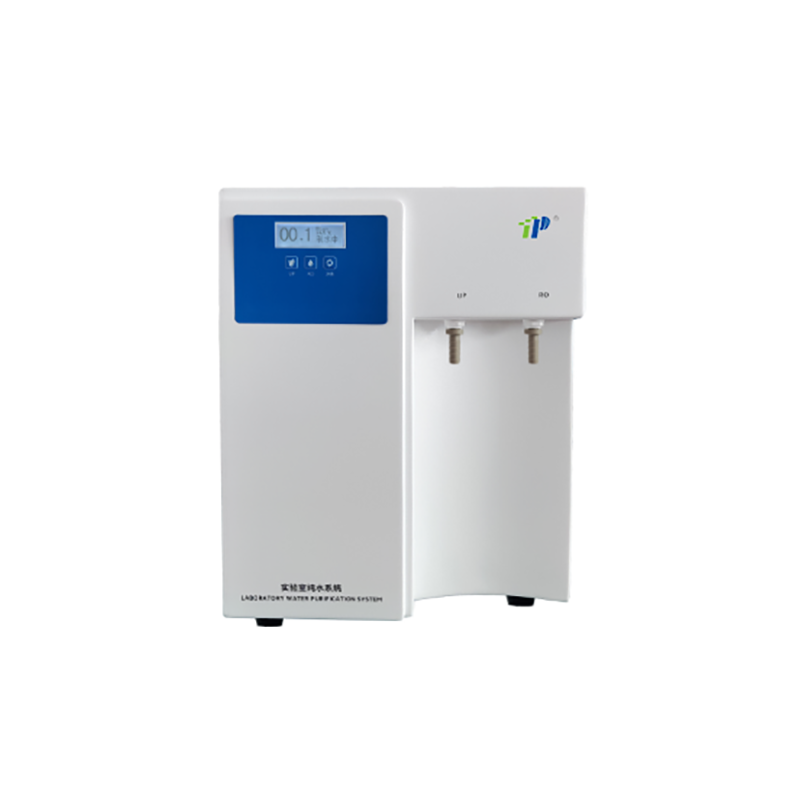

Laboratory Ultrapure Water System 10–40L/H – 18.2MΩ·cm RO+UP Water Purifier for HPLC/ICP/IC
Application scope: Preparation of Solutions, High Performance Liquid Chromatography (HPCL), Ion Chromatography (IC), Graphite Furnace Atomic Absorption Spectroscopy, General Chemistry, Plasma Spectroscopy (ICP), Water Quality Analysis
Water production capacity: 10L/H；20L/H；30L/H；40L/H
Inlet water source: Urban tap water, water temperature 5-45 ℃, water pressure 0.1-0.5Mpa, TDS＜300ppm
Instant water intake: 1.5-2.0L/min (when the water tank is full)
Resistivity: 18.2MΩ.CM@25℃
Water production capacity: 10L/H；20L/H；30L/H；40L/H
Inlet water source: Urban tap water, water temperature 5-45 ℃, water pressure 0.1-0.5Mpa, TDS＜300ppm
Instant water intake: 1.5-2.0L/min (when the water tank is full)
Resistivity: 18.2MΩ.CM@25℃
| Quantity: | |
|---|---|
-
PF series
-
TOP
Performance characteristics:
1. Fully automatic microcomputer control system, an integrated system that directly produces pure water and ultrapure water from tap water as the source water.
2. Power on self-test system flushing, LCD display, and three touch sensitive buttons. The operating status is clear and intuitive, with real-time display of flushing, water production, full water, short water, and maintenance status.
3. The device has password protection settings, low voltage alarm, full water alarm, consumables replacement reminder and other functions
4. The chassis is made of ABS engineering plastic, which has high acid and alkali resistance and hardness. Water and electricity separation structure, suitable for use in humid environments; Adopting advanced electromagnetic compatibility design, it has strong anti-interference ability and low noise.
5. Equipped with UP water quality online monitoring function, ultra pure water quality and water temperature monitoring; Fully automatic RO membrane anti scaling flushing program, extending the service life of RO membrane, and automatic backwashing.
6. It has functions such as power on self-test, power-off reset, low and high voltage protection sound and light alarm, temperature sensitivity of 0.1 ℃, and automatic temperature compensation function.
7. Safe and environmentally friendly design: using low voltage 24VDC as the main power supply, in compliance with safety regulations.
The device has password protection settings, low voltage alarm, full water alarm, consumables replacement reminder and other functions
8. Microprocessor control, real-time monitoring of all parameters, automatic return to running mode after operation, and automatic shutdown function in case of malfunction.
9. Adopting a large capacity purification unit and ultra purification unit, the integrated two column purification module design, the whole body column is made of food grade materials, and the hot melt equipment is used for one-time hot melt molding, without any adhesive or impurity precipitation.
10. Complete historical alarm, historical water intake records, and consumables management functions.
11. The pure water pipeline and joints have obtained NSF certification.
12. Compatible with pressure tank and water tank level water production mode, flexible working mode.
13. Using original imported nuclear grade resin, the fully suspended flow ultra purification column ensures top-quality water quality at all times.
14. The use of imported reverse osmosis membranes can remove up to 99% of organic matter, inorganic ions, and particulate pollutants. Extend the service life of accessories and protect water quality stability.
15. Ultra pure water is used for HPLC, GCMS, ICPMS, etc. Pure water is used for cleaning glassware, preparing solution analysis samples, etc.
16. 30 liter food grade PE material pure water tank, equipped with sterilization and filtration system to meet different needs and reduce water quality re pollution (optional)
17. Adopting a dual wavelength (185nm&254nm) ultraviolet sterilization system, effectively sterilizing and reducing TOC, enhancing the application range of the system (optional)
18. 0.22 μ m terminal sterilization filter to ensure stable water quality (optional)
Performance characteristics:
1. Fully automatic microcomputer control system, an integrated system that directly produces pure water and ultrapure water from tap water as the source water.
2. Power on self-test system flushing, LCD display, and three touch sensitive buttons. The operating status is clear and intuitive, with real-time display of flushing, water production, full water, short water, and maintenance status.
3. The device has password protection settings, low voltage alarm, full water alarm, consumables replacement reminder and other functions
4. The chassis is made of ABS engineering plastic, which has high acid and alkali resistance and hardness. Water and electricity separation structure, suitable for use in humid environments; Adopting advanced electromagnetic compatibility design, it has strong anti-interference ability and low noise.
5. Equipped with UP water quality online monitoring function, ultra pure water quality and water temperature monitoring; Fully automatic RO membrane anti scaling flushing program, extending the service life of RO membrane, and automatic backwashing.
6. It has functions such as power on self-test, power-off reset, low and high voltage protection sound and light alarm, temperature sensitivity of 0.1 ℃, and automatic temperature compensation function.
7. Safe and environmentally friendly design: using low voltage 24VDC as the main power supply, in compliance with safety regulations.
The device has password protection settings, low voltage alarm, full water alarm, consumables replacement reminder and other functions
8. Microprocessor control, real-time monitoring of all parameters, automatic return to running mode after operation, and automatic shutdown function in case of malfunction.
9. Adopting a large capacity purification unit and ultra purification unit, the integrated two column purification module design, the whole body column is made of food grade materials, and the hot melt equipment is used for one-time hot melt molding, without any adhesive or impurity precipitation.
10. Complete historical alarm, historical water intake records, and consumables management functions.
11. The pure water pipeline and joints have obtained NSF certification.
12. Compatible with pressure tank and water tank level water production mode, flexible working mode.
13. Using original imported nuclear grade resin, the fully suspended flow ultra purification column ensures top-quality water quality at all times.
14. The use of imported reverse osmosis membranes can remove up to 99% of organic matter, inorganic ions, and particulate pollutants. Extend the service life of accessories and protect water quality stability.
15. Ultra pure water is used for HPLC, GCMS, ICPMS, etc. Pure water is used for cleaning glassware, preparing solution analysis samples, etc.
16. 30 liter food grade PE material pure water tank, equipped with sterilization and filtration system to meet different needs and reduce water quality re pollution (optional)
17. Adopting a dual wavelength (185nm&254nm) ultraviolet sterilization system, effectively sterilizing and reducing TOC, enhancing the application range of the system (optional)
18. 0.22 μ m terminal sterilization filter to ensure stable water quality (optional)
