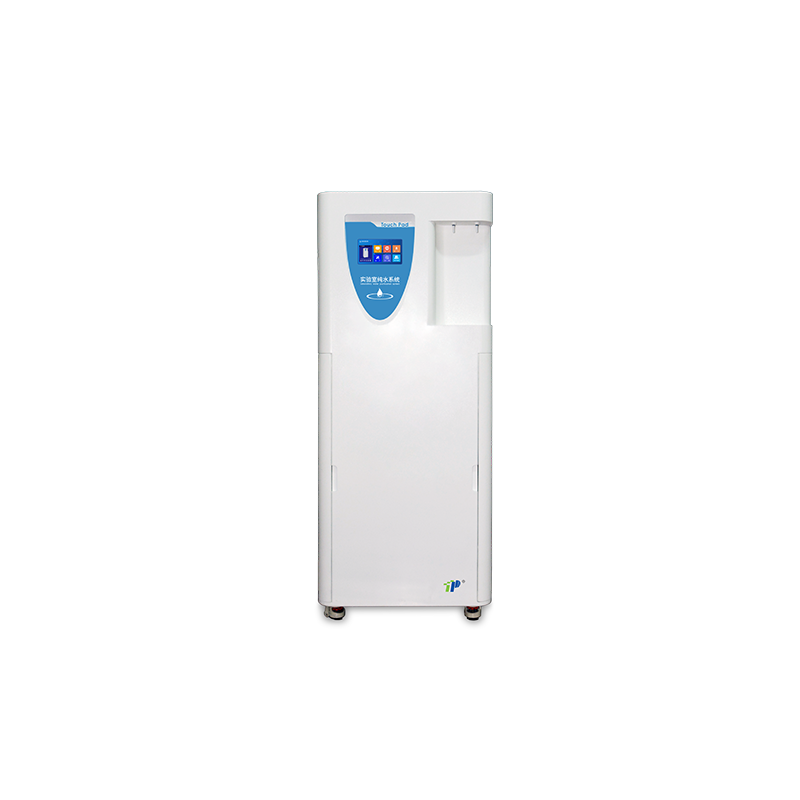

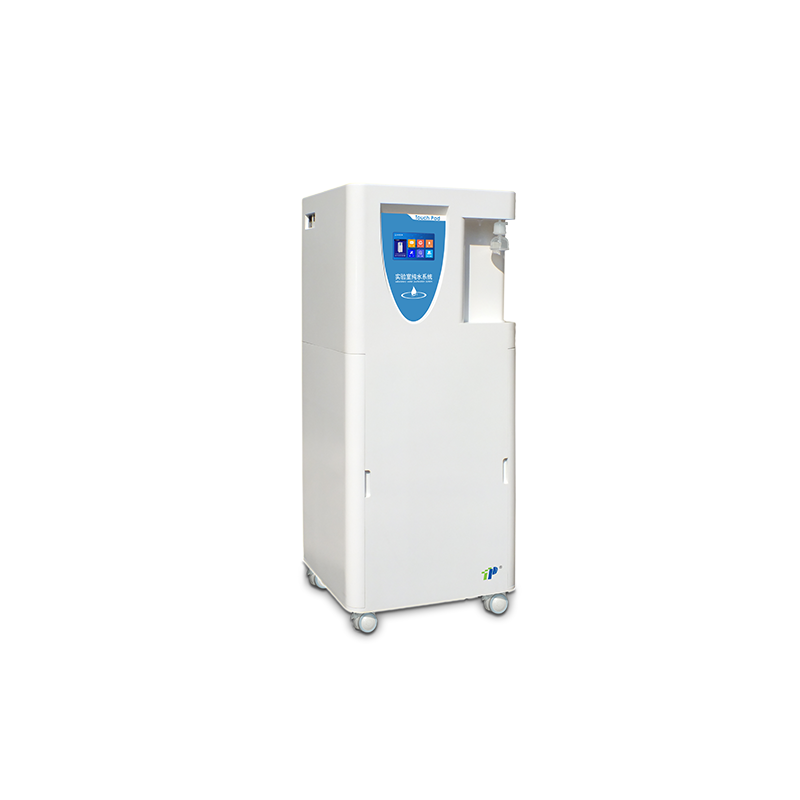

Laboratory Ultrapure Water Purification System | RO & Deionized Water | 45–125L/H Output
Output-RO water: Q45:45L/H;Q63:63L/H;Q95:95L/H;Q125:125L/H
Output-Deionized water: Up to 2.0L/Min(When tank is full)
Feed water requirements: Tap water:conductivity<400μs,5-45℃,1.0-4.0Kgf/cm²(When TDS>400μs,optional pretreatment is suggested)
Resistivity (25℃): 16-18.25MΩ.cm
Output-Deionized water: Up to 2.0L/Min(When tank is full)
Feed water requirements: Tap water:conductivity<400μs,5-45℃,1.0-4.0Kgf/cm²(When TDS>400μs,optional pretreatment is suggested)
Resistivity (25℃): 16-18.25MΩ.cm
| Quantity: | |
|---|---|
-
PLR-Q Series
-
TOP
| Product model | PLR-Q45/63 | PLR-Q45/63UT | PLR-Q95/125 | PLR-Q95/125UT |
| Output-RO water | Q45:45L/H;Q63:63L/H;Q95:95L/H;Q125:125L/H | |||
| Output-Deionized water | Up to 2.0L/Min(When tank is full) | |||
| Feed water requirements | Tap water:conductivity<400μs,5-45℃,1.0-4.0Kgf/cm²(When TDS>400μs,optional pretreatment is suggested) | |||
| DI Deionized water quality | ||||
| Resistivity(25℃) | 16-18.25MΩ.cm | |||
| Heavy metal ion | <0.01ppb | |||
| Bacteria | N/A | <0.01cfu/ml | N/A | <0.01cfu/ml |
| Particle(>0.22μm) | N/A | <1/ml | N/A | <1/ml |
| RO waterquality | ||||
| lon rejection rate | >98% (New RO membrane) | |||
| Organic rejection rate | >99%, when MW>200 Dalton | |||
| Particles and bacteria rejection rate | >99% | |||
| Dimension and weight | Width×Depth×Height: 610×600×1500mm / Weight: about 70Kg | |||
| Electrical requirements | 100-240V, 50/60Hz | |||
| Power | 250W | |||
| Standard configuration | Main system (including 1 full set of cartridges) + buit-in tank + accessories bagaccessories bag | |||
| *The value will be influenced by temperature and feed water's quality. | ||||
