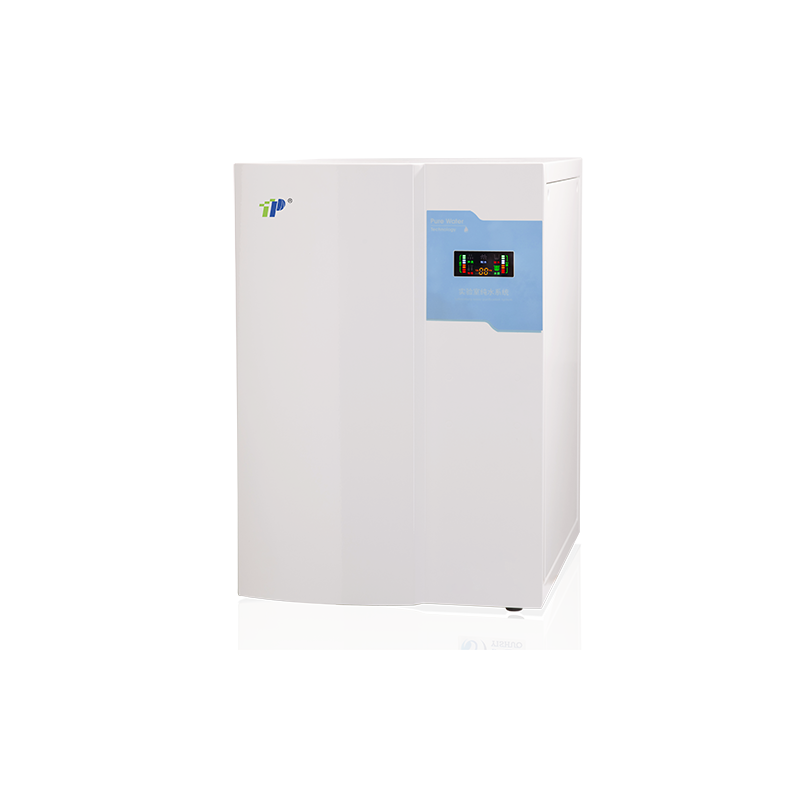

Laboratory Ultrapure Water Purification System | 15–250L/H RO/DI Water Generator for HPLC, GC-MS, ICP-MS, Cell Culture
Output - RO water: 15/30/45/60L/90/120/180/250L/Hour (Depend on models)
Output- DI water: Up to 2.0L/Min(When tank is full)
Feed water requirements: Tap water: conductivity<400μs, 5-45℃, 1.0-4.0Kgf/cm² (When TDS>400μs, optional pretreatment is suggested)
Resistivity(25°C): 13~17.5MΩ.cm
Output- DI water: Up to 2.0L/Min(When tank is full)
Feed water requirements: Tap water: conductivity<400μs, 5-45℃, 1.0-4.0Kgf/cm² (When TDS>400μs, optional pretreatment is suggested)
Resistivity(25°C): 13~17.5MΩ.cm
| Quantity: | |
|---|---|
-
PMD-RO/Q Series
-
TOP
| Product model | PMD-RO15/30/45/60 | PMD-Q15/30/45/60 | PMD-RO90/120/180/250 | PMD-Q90/120/180/250 |
| Output - RO water | 15/30/45/60L/Hour | 15/30/45/60L/Hour | 90/120/180/250L/Hour | 90/120/180/250L/Hour |
| Output- DI water | Up to 2.0L/Min(When tank is full) | |||
| Feed water requirements | Tap water: conductivity<400μs, 5-45℃, 1.0-4.0Kgf/cm² (When TDS>400μs, optional pretreatment is suggested) | |||
| DI Deionized water quality | ||||
| Resistivity(25℃) | 13~17.5MΩ.cm | |||
| Heavy metal ion | < 0.01ppb | |||
| Bacteria | N/A | <0.01cfu/ml | N/A | <0.01cfu/ml |
| Particle(>0.22μm) | N/A | <1/ml | N/A | <1/ml |
| RO water quality | ||||
| Ion rejection rate | >98% (New RO membrane) | |||
| Organic rejection rate | >99%, when MW>200 Dalton | |||
| Particles and bacteria rejection rate | >99% | |||
| Dimension and weight | W×D×H : 370×420×540mm/Weight : about 23Kg | W×D×H : 370×420×540mm/Weight : about 83Kg | ||
| Electrical requirements | 100-240V, 50/60Hz | |||
| Power | 72W/120W250W | |||
| Standard configuration | Main system (including 1 full set of cartridges) + built-in tank + accessories bag | |||
| Product model | PMD-RO15/30/45/60 | PMD-Q15/30/45/60 | PMD-RO90/120/180/250 | PMD-Q90/120/180/250 |
| Output - RO water | 15/30/45/60L/Hour | 15/30/45/60L/Hour | 90/120/180/250L/Hour | 90/120/180/250L/Hour |
| Output- DI water | Up to 2.0L/Min(When tank is full) | |||
| Feed water requirements | Tap water: conductivity<400μs, 5-45℃, 1.0-4.0Kgf/cm² (When TDS>400μs, optional pretreatment is suggested) | |||
| DI Deionized water quality | ||||
| Resistivity(25℃) | 13~17.5MΩ.cm | |||
| Heavy metal ion | < 0.01ppb | |||
| Bacteria | N/A | <0.01cfu/ml | N/A | <0.01cfu/ml |
| Particle(>0.22μm) | N/A | <1/ml | N/A | <1/ml |
| RO water quality | ||||
| Ion rejection rate | >98% (New RO membrane) | |||
| Organic rejection rate | >99%, when MW>200 Dalton | |||
| Particles and bacteria rejection rate | >99% | |||
| Dimension and weight | W×D×H : 370×420×540mm/Weight : about 23Kg | W×D×H : 370×420×540mm/Weight : about 83Kg | ||
| Electrical requirements | 100-240V, 50/60Hz | |||
| Power | 72W/120W250W | |||
| Standard configuration | Main system (including 1 full set of cartridges) + built-in tank + accessories bag | |||
