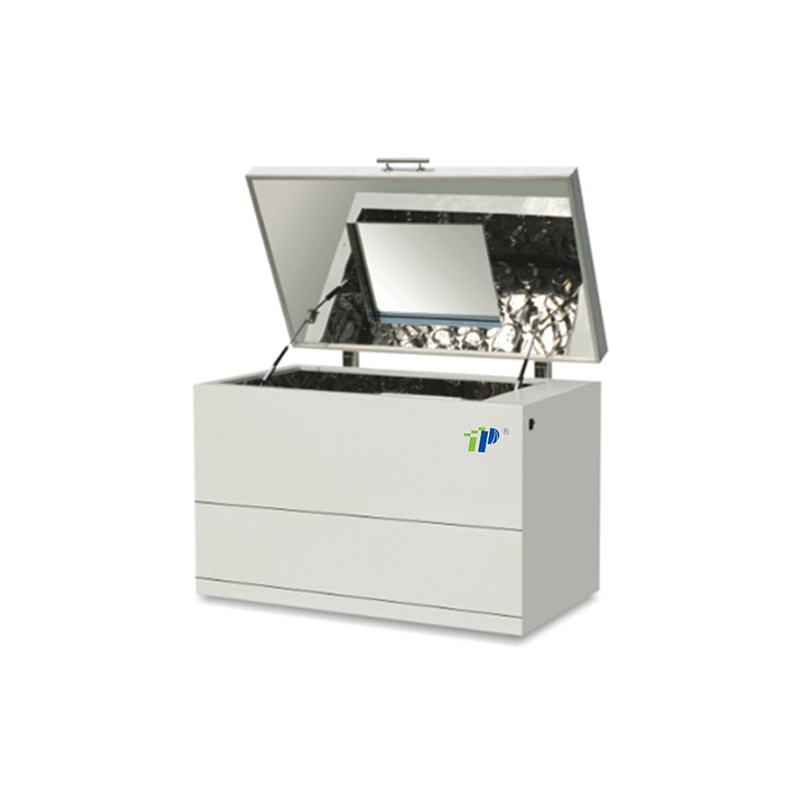

Laboratory Incubator Shaker – Orbital & Reciprocating, PID Control, Refrigerated & Non-Refrigerated Models

Shaking Mode: Orbital (Ø26 mm) or Reciprocating (0–50 mm)
Speed Range: 20–350 rpm (orbital) / 20–260 rpm (reciprocating), accuracy ±1 rpm
Temperature Range: Ambient +5 °C to 65 °C or 4 °C to 65 °C (refrigerated models)
Temperature Accuracy / Uniformity: ±0.1 °C / ±0.5 °C (≤0.1 °C at 37 °C)
Max. Capacity: Up to 66×100 ml, 45×250 ml, 28×500 ml, 15×1000 ml, or 11×2000 ml
Control System: PID microprocessor, programmable speed/temperature/time, LCD or 7" touch screen
Platform Size: 920×500 mm or 920×540 mm

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PNY / PNYC Series

  • TOP

  • Automatic analyzing, listing table, charting and printing on downloaded dates. It can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.

  • High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.

  • Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.

  • Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.

  • Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.

  • Automatic defrosting function. It makes shakers operating stably in low temperature for a long time.

  • High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM

  • High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,

  • Unique drive system. It makes the machine running smoothly, stably, durably and reliably.

  • LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.

  • Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.

  • Function of encrypted and locked operating parameters. It can avoid human errors.

  • Continuously running or timing. Shakers can display the set time and time remaining

  • Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments

  • Clock and date can be displayed (touch screen only).


(Model)

PNY-111B

PNY-111CPNY-111BDPNY-111F

(Specifications)

Control model

P.I.D microprocessor chip

Convection model

Forced convection

Shake model

Convolution

Reciprocate

Display

LCD liquid-crystal display

Drive mode

Unidimensional drive

Track drive

Control system

Multiple Programmable mode(temp,speed,time)

Cyclotron frequency range(rpm/min)

0;20-350(To do static culture)

0;20-260(To do static culture)

Cyclotron frequency sensitivity(rpm)

±1

Orbit Diameter(mm)

Φ26

0-50

Maximum capacity

100ML×66 OR 250ML×45 OR 500ML×28 OR 1000ML×15 OR 2000ML×11

250ML×45 OR 500ML×28 OR 1L×15 OR

2L×11 OR

3L×8 OR

5L×6

250ml*67 OR

500ml*42 OR

1L*24 OR

2L*15

100ML×66 OR 250ML×45 OR 500ML×28 OR 1000ML×15

Standard capacity

500ML×28

2000ML×8

500ML×38

500ML×28

Size of platform(mm)

920×500

920×540

920×500

Timing range(h)

0-9999h/min(Any time,continuous duty)

Temperature range(℃)

ambient +5°Cto 65°C(No refrigeration)

Temperature regulate sensitivity(℃)

±0.1

Temperature uniformity(℃)

±0.5(37℃)

Temperature uniformity(℃)

≤0.1(37℃)

Number of platform

One

Outside dimension(W*D*H)(mm)

1200×760×880

1200×760×1050

1200×760×880

Capacity(L)

203

296220203

Power(W)

650

Power supply

AC220±10%  50HZ

Net weight(kg)

170

180170

Gross weight(kg)

210

230210

Other functions

Ultra-low speed start, Adjustable start speed,Overspeed auto-prtection,Watch dog timer,Parameters Storage,Encryption parameters,Electricity incoming recovery,Refrigeration unit overload protection,Sound and light alarm when upper and lower overtemperature,Automatically stop when opening the door (optional),Function of lighting and UV disinfection


(Model)

PNY-211B

PNY-211CPNY-211BDPNY-211F

(Specifications)

Control model

P.I.D microprocessor chip

Convection model

Forced convection

Shake model

Convolution

Reciprocate

Display

LCD liquid-crystal display

Drive mode

Unidimensional drive

Track drive

Control system

Multiple Programmable mode(temp,speed,time)

Cyclotron frequency range(rpm/min)

0;20-350(To do static culture)

0;20-260(To do static culture)

Cyclotron frequency sensitivity(rpm)

±1

Orbit Diameter(mm)

Φ26

0-50

Maximum capacity

100ML×66 OR 250ML×45 OR 500ML×28 OR 1000ML×15 OR 2000ML×11

250ML×45 OR 500ML×28 OR 1L×15 OR 2L×11 OR

3L×8 OR

5L×6

250ML*67 OR

500ML*42 OR

1L*24 OR

2L*15

100ML×66 OR 250ML×45 OR 500ML×28 OR


1000ML×15

Standard capacity

500ML×28

2000ML×8

500ML×38

500ML×28

Size of platform(mm)

920×500


920×540

920×500

Timing range(h)

0-9999h/min(Any time,continuous duty)

Temperature range(℃)

4°Cto 65°C(refrigeration)

Temperature regulate sensitivity(℃)

±0.1

Temperature uniformity(℃)

±0.5(37℃)

Temperature uniformity(℃)

≤0.1(37℃)

Number of platform

One

Outside dimension(W*D*H)(mm)

1200×760×880

1200×760×1050

1200×760×880

1200×760×800

Capacity(L)

203

296220203

Power(W)

900

950900

Power supply

AC220±10%   50HZ

Net weight(kg)

190

200190

Gross weight(kg)

230

240230

Other functions

Ultra-low speed start, Adjustable start speed,Overspeed auto-prtection,Watch dog timer,Parameters Storage,Encryption parameters,Electricity incoming recovery,Refrigeration unit overload protection,Sound and light alarm when upper and lower overtemperature,Automatically stop when opening the door (optional),Function of lighting and UV disinfection


(Model)

PNYC-111B

PNYC-111CPNYC-111BDPNYC-111F

(Specifications)

Control model

P.I.D microprocessor chip

Convection model

Forced convection

Shake model

Convolution

Reciprocate

Display

7 Inch touch screen

Drive mode

Multidimensional drive

Track drive

Control system

Multiple Programmable mode(temp,speed,time)

Cyclotron frequency range(rpm/min)

0,20-350(To do static culture)

0,20-260(To do static culture)

Cyclotron frequency sensitivity(rpm)

±1

Orbit Diameter(mm)

Φ26

0-50

Maximum capacity

100ML×66 OR 250ML×45 OR 500ML×28 OR 1000ML×15 OR 2000ML×11


250ML×45 OR 500ML×28 OR

1L×15 OR

2L×11 OR

3L×8 OR

5L×6

250ML*67 OR

500ML*42 OR

1L*24 OR

2L*15

100ML×66 OR 250ML×45 OR 500ML×28 OR 1000ML×15

Standard capacity

500ML×28

2000ML×8

500ML×38

500ML×28

Size of platform(mm)

920×500

920×540920×500

Timing range(h)

0-999.9(Any time,continuous duty)

Temperature range(℃)

ambient +5°Cto 65°C(No refrigeration)

Temperature regulate sensitivity(℃)

±0.1

Temperature uniformity(℃)

±0.5(37℃)

Temperature uniformity(℃)

≤0.1(37℃)

Number of platform

One

Outside dimension(W*D*H)(mm)

1200×760×880

1200×760×1050

1200×760×880

Capacity(L)

203

296220203

Power(W)

650

Power supply

AC220±10%  50HZ

Net weight(kg)

170

180170

Gross weight(kg)

210

230210

Other functions

Ultra-low speed start, Adjustable start speed,Overspeed auto-prtection,Watch dog timer,Parameters Storage,Encryption parameters,Electricity incoming recovery,Refrigeration unit overload protection,Sound and light alarm when upper and lower overtemperature,Automatically stop when opening the door (optional),Function of lighting and UV disinfection


(Model)

PNYC-211B

PNYC-211C

PNYC-211BD

PNYC-211F

(Specifications)

Control model

P.I.D microprocessor chip

Convection model

Forced convection

Shake model

Convolution

Reciprocate

Display

7 inch touch screen

Drive mode

Multidimensional drive

Track drive

Control system

Multiple Programmable mode(temp,speed,time)

Cyclotron frequency range(rpm/min)

0,20-350(To do static culture)

0,20-260(To do static culture)

Cyclotron frequency sensitivity(rpm)

±1

Orbit Diameter(mm)

Φ26

0-50

Maximum capacity

100ML×66 OR 250ML×45 OR 500ML×28 OR 1000ML×15 OR 2000ML×11

250ML×45 OR 500ML×28 OR 1L×15 OR 2L×11 OR 3L×8 OR 5L×6

250ML*67 OR

500ML*42 OR

1L*24 OR

2L*15

100ML×66 OR 250ML×45 OR 500MLL×28 OR 1000ML×15

Standard capacity

500ML×28

2000ML×8

500ML×38

500ML×28

Size of platform(mm)

920×500

920×540

920×500

Timing range(h)

0-999.9(Any time,continuous duty)

Temperature range(℃)

4°Cto 65°C( refrigeration)

Temperature regulate sensitivity(℃)

±0.1

Temperature uniformity(℃)

±0.5(37℃)

Temperature uniformity(℃)

≤0.1(37℃)

Number of platform

One

Outside dimension(W*D*H)(mm)

1200×760×880

1200×760×1050

1200×760×880

Capacity(L)

203

296

220

203

Power(W)

900

950

900

Power supply

AC220±10%  50HZ

Net weight(kg)

200

190

Gross weight(kg)

240

230

Other functions

Ultra-low speed start, Adjustable start speed,Overspeed auto-prtection,Watch dog timer,Parameters Storage,Encryption parameters,Electricity incoming recovery,Refrigeration unit overload protection,Sound and light alarm when upper and lower overtemperature,Automatically stop when opening the door (optional),Function of lighting and UV disinfection
