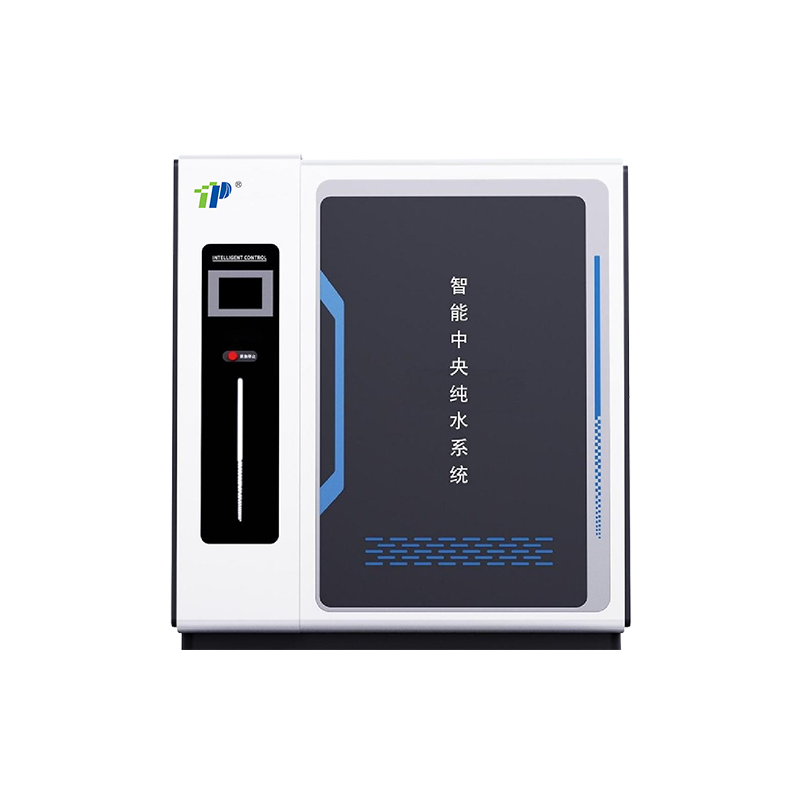

Industrial RO EDI Water Purification System – 250L/H Or 500L/H Ultra Pure Water Maker
Water production capacity: 250L/H or 500L/H (Depend on models)
Inlet water source: Urban tap water, pressure 2.0~5.0kg/cm ², water temperature 5~45 ℃
Produced water quality: Conductivity ≤ 5us/cm (EDI water resistivity ≥ 16MQ.cm)
System flow: (Depend on models)
1. Quartz sand+activated carbon+softening+Microfiltration+UV+dual stage reverse osmosis
2. Quartz sand+activated carbon+softening+microfiltration+UV+secondary reverse osmosis+EDI
Inlet water source: Urban tap water, pressure 2.0~5.0kg/cm ², water temperature 5~45 ℃
Produced water quality: Conductivity ≤ 5us/cm (EDI water resistivity ≥ 16MQ.cm)
System flow: (Depend on models)
1. Quartz sand+activated carbon+softening+Microfiltration+UV+dual stage reverse osmosis
2. Quartz sand+activated carbon+softening+microfiltration+UV+secondary reverse osmosis+EDI
| Quantity: | |
|---|---|
-
PTU series
-
TOP
Model | PTU-250 | PTU-500 | PTU-250E | PTU-500E |
Water production capacity | 250L/H | 500L/H | 250L/H | 500L/H |
Inlet water source | Urban tap water, pressure 2.0~5.0kg/cm ², water temperature 5~45 ℃ | |||
Produced water quality | Conductivity ≤ 5us/cm | Conductivity ≤ 5us/cm EDI water resistivity ≥ 16MQ.cm | ||
System flow | Quartz sand+activated carbon+softening+ Microfiltration+UV+dual stage reverse osmosis | Quartz sand+activated carbon+softening+microfiltration+UV+secondary reverse osmosis+EDI | ||
Power Supply/Power | 220V&380V 50Hz 2.5-6.5KW | |||
Host size | 1550mm*750mm*1700mm | |||
Performance characteristics | Central pure water equipment can be customized for different water production requirements of customers to meet the diversity of water use for users | |||
Adopting a fully automatic 10.1-inch large screen touch operation interface, it has functions such as system startup self-test, water shortage and leakage shutdown protection, and system automatic flushing | ||||
The instrument adopts modular and integrated advanced process design, with built-in special high-pressure pump, imported RO membrane, brand relay, etc Famous domestic and foreign brand components; Ensure equipment performance | ||||
Optional ion exchange components, dual wavelength ultraviolet sterilization system, ultrafiltration components, microfiltration components, etc. can be installed to achieve a maximum electrical resistivity of 18.2MQ.cm for ultrapure water | ||||
Ultra pure water system can be prepared, and the effluent quality fully meets the Class I water quality standards established by GB/T6628-2008, GB/T33087-2016, ASTM, CAP CLSI | ||||
Scope of application: Laboratory central water supply, large-scale biochemistry, reagent configuration for microbiological analysis, electronic pharmaceutical production water, etc | ||||
Model | PTU-250 | PTU-500 | PTU-250E | PTU-500E |
Water production capacity | 250L/H | 500L/H | 250L/H | 500L/H |
Inlet water source | Urban tap water, pressure 2.0~5.0kg/cm ², water temperature 5~45 ℃ | |||
Produced water quality | Conductivity ≤ 5us/cm | Conductivity ≤ 5us/cm EDI water resistivity ≥ 16MQ.cm | ||
System flow | Quartz sand+activated carbon+softening+ Microfiltration+UV+dual stage reverse osmosis | Quartz sand+activated carbon+softening+microfiltration+UV+secondary reverse osmosis+EDI | ||
Power Supply/Power | 220V&380V 50Hz 2.5-6.5KW | |||
Host size | 1550mm*750mm*1700mm | |||
Performance characteristics | Central pure water equipment can be customized for different water production requirements of customers to meet the diversity of water use for users | |||
Adopting a fully automatic 10.1-inch large screen touch operation interface, it has functions such as system startup self-test, water shortage and leakage shutdown protection, and system automatic flushing | ||||
The instrument adopts modular and integrated advanced process design, with built-in special high-pressure pump, imported RO membrane, brand relay, etc Famous domestic and foreign brand components; Ensure equipment performance | ||||
Optional ion exchange components, dual wavelength ultraviolet sterilization system, ultrafiltration components, microfiltration components, etc. can be installed to achieve a maximum electrical resistivity of 18.2MQ.cm for ultrapure water | ||||
Ultra pure water system can be prepared, and the effluent quality fully meets the Class I water quality standards established by GB/T6628-2008, GB/T33087-2016, ASTM, CAP CLSI | ||||
Scope of application: Laboratory central water supply, large-scale biochemistry, reagent configuration for microbiological analysis, electronic pharmaceutical production water, etc | ||||
