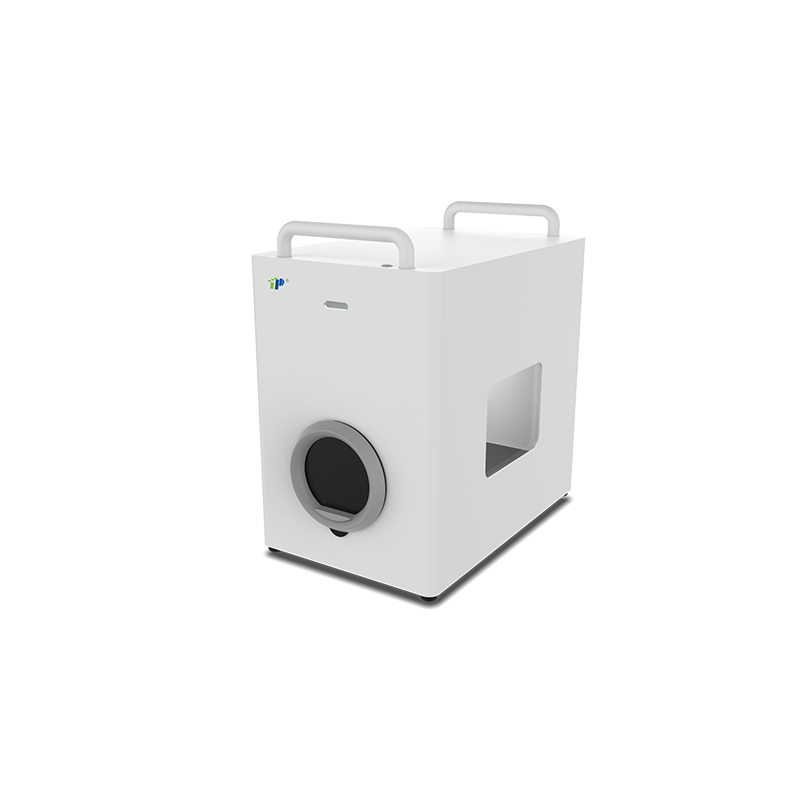

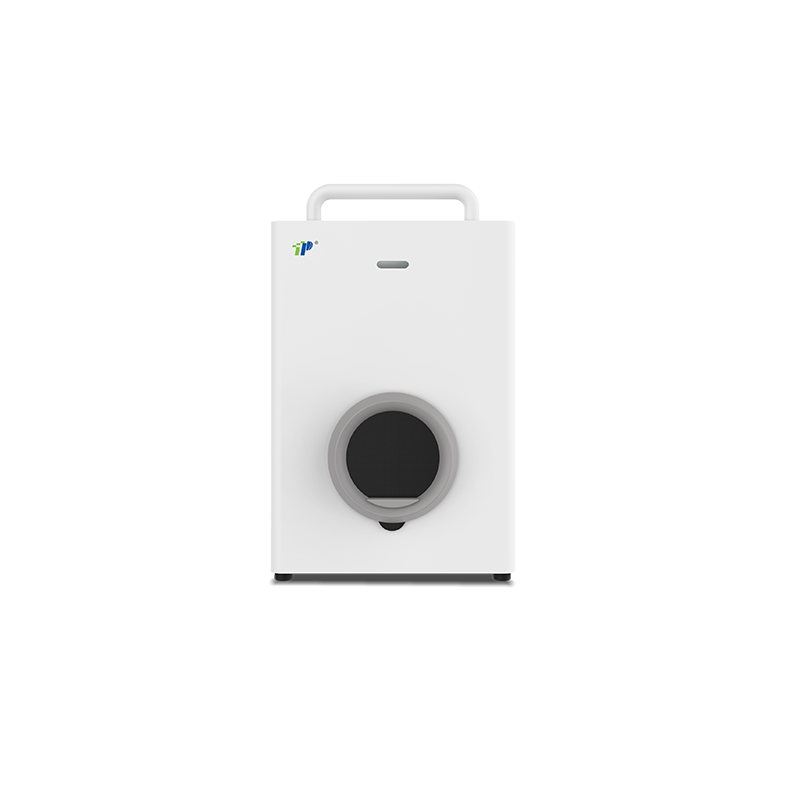

HY-BD X-Ray Imaging System for Seeds, Small Animal, and Industrial Non-Destructive Inspection – Desktop Portable, High-Resolution, Fully Shielded

Equipment parameters:

• Model：HY-BD

• Equipment parameters:

• Display mode: PC or Pad

• Dimensions: (length x width x height) 320 x 507 x 490 mm

• Weight: 60 kg

• Input power supply:~ 220 V, 50 Hz, power: 400VA

• Radiation shielding: ≤ 0.3 μ Sv/h at a distance of 10 cm from the device

X-ray detector:

• Pixel array: 1024x1024

• Pixel size: 154 μ m

• Detector size: 179.2 * 186.7 * 46.3mm

• Weight: 2.1kg

• X-ray generator

• Tube voltage: 30-80kV

• Tube current: 1mA

• Cooling method: natural cooling

• Nominal electrical power: 0.08kW

• Focus: 0.8mm

Characteristics:

1. Highly integrated, simple to use environment requirements, no need for dedicated space, can be placed on a desktop for use;

2.The device comes with a fully shielded casing, ensuring no radiation leakage, safety, and reliability. No additional protection is required during use;

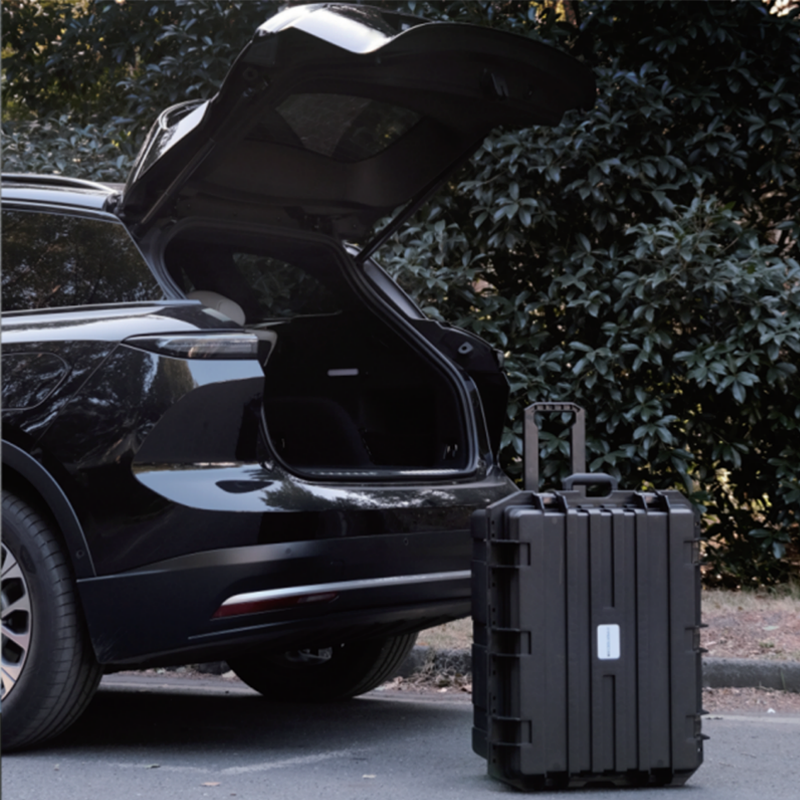

3.The device is delicate and compact in size, and can be flexibly transported and moved to adapt to various usage scenarios;

4. The equipment uses high-performance components and multiple parameter configurations specifically designed for detecting seeds and other items, resulting in clear and reliable imaging quality;

5.220V single-phase power supply, no need for dedicated power supply, equipped with a portable power bank, easy to cope with outdoor use;

6. Hardware and software integrated design, ready to use upon startup; One click operation to complete shooting, no need to wait for immediate image viewing; Supports wired and wireless connections, supports multiple terminal uses, flexible switching between desktop, laptop, and tablet without the need to bind terminal devices;

Packaging size and gross weight:

Size: 910 x 420 x 670mm

Gross weight: 100kg
