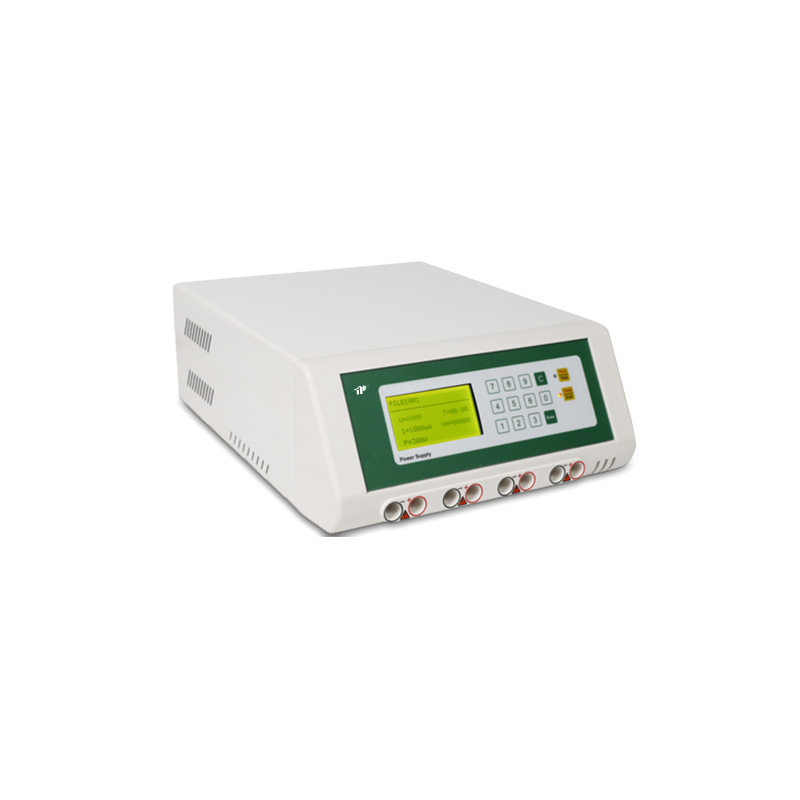

High Voltage Electrophoresis Power Supply with Temperature Control, 20–3000V, 200W | TP-ECPT3000
Output Type: Constant Voltage, Current, or Power
Output Range: 20–3000V, 1–200mA, 1–200W
Temperature Control Range: RT+10°C to 65°C
Timer Range: 1min–99hr 59min
Storage Capacity: Up to 10 electrophoresis methods
Display: LCD with backlight, shows preset & actual values
Safety Features: Overload, short circuit, ground leak, overheating protection
Output Range: 20–3000V, 1–200mA, 1–200W
Temperature Control Range: RT+10°C to 65°C
Timer Range: 1min–99hr 59min
Storage Capacity: Up to 10 electrophoresis methods
Display: LCD with backlight, shows preset & actual values
Safety Features: Overload, short circuit, ground leak, overheating protection
| Quantity: | |
|---|---|
-
TP-ECPT3000
-
TOP
Characteristic feature
Type of Output: Constant-Voltage, Current or Power
Increment: 1V, 1mA, 1W
Output Range: 20--3000V, 1--200mA, 1--200W.
Timer Range: 1min~99hr, 59min
Display: LCD display with backlight
Output jacks: Four sets of output jacks
Characteristic feature
• Touch keys, dual core microprocessor intelligent control;
• Indicate the preset value and the actual output value at the same time;
• It can store 10 electrophoresis methods;
• With the temperature control operation, range of temperature is RT+10℃~65℃;
• With automatic memory function;
• With Standard, Timing, Temperature control operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
Characteristic feature
Type of Output: Constant-Voltage, Current or Power
Increment: 1V, 1mA, 1W
Output Range: 20--3000V, 1--200mA, 1--200W.
Timer Range: 1min~99hr, 59min
Display: LCD display with backlight
Output jacks: Four sets of output jacks
Characteristic feature
• Touch keys, dual core microprocessor intelligent control;
• Indicate the preset value and the actual output value at the same time;
• It can store 10 electrophoresis methods;
• With the temperature control operation, range of temperature is RT+10℃~65℃;
• With automatic memory function;
• With Standard, Timing, Temperature control operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
