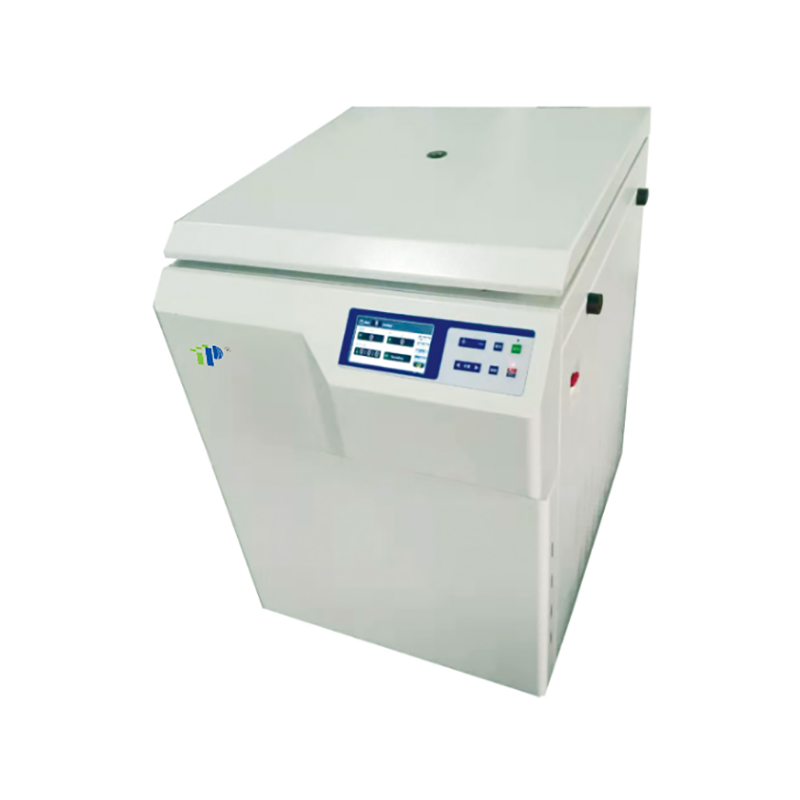

TGL-12MD / TGL-25M / TGL-2050B
TOP
Application scope:
High-speed cryogenic centrifuge is specially developed and designed for customers with high speed and large capacity requirements, and can be widely used in clinical medicine, biotechnology, genetic engineering, biopharmaceuticals and other fields.
Feature:
1. Maximum speed 12000r/min, maximum capacity 2000ml*4;
2. Variable frequency microcomputer control, stable operation, high power distance
3. AC variable frequency motor drive, low noise, high speed accuracy;
4. Imported refrigeration unit, fluorine free refrigerant R404a, with excellent refrigeration effect and meets environmental protection requirements;
5. Large screen LCD display, programmable operation, 9 sets of programs to flexibly select the appropriate centrifugation process to achieve the best centrifugation effect;
6. Automatically calculate rpm/RCF values, convenient and fast;
7. Equipped with a self diagnostic system for faults such as overheating, overspeed, and imbalance to ensure personal and instrument safety;
8. The original electric push type automatic door cover structure and induction type automatic door lock have two modes to choose from, namely automatic opening of the door cover after centrifugation and manual opening.
Application scope:
High-speed cryogenic centrifuge is specially developed and designed for customers with high speed and large capacity requirements, and can be widely used in clinical medicine, biotechnology, genetic engineering, biopharmaceuticals and other fields.
Feature:
1. Maximum speed 12000r/min, maximum capacity 2000ml*4;
2. Variable frequency microcomputer control, stable operation, high power distance
3. AC variable frequency motor drive, low noise, high speed accuracy;
4. Imported refrigeration unit, fluorine free refrigerant R404a, with excellent refrigeration effect and meets environmental protection requirements;
5. Large screen LCD display, programmable operation, 9 sets of programs to flexibly select the appropriate centrifugation process to achieve the best centrifugation effect;
6. Automatically calculate rpm/RCF values, convenient and fast;
7. Equipped with a self diagnostic system for faults such as overheating, overspeed, and imbalance to ensure personal and instrument safety;
8. The original electric push type automatic door cover structure and induction type automatic door lock have two modes to choose from, namely automatic opening of the door cover after centrifugation and manual opening.
Technical parameters:
Model | TGL-12MD | TGL-25M | TGL-2050B |
Maximum speed | 12000r/min | 25000r/min | 20500r/min |
Maximum RCF | 19830×g | 64983×g | 29140×g |
Speed accuracy | ±10r/min | ||
Time range | 1 min to 99 min | ||
Temperature control range | -20℃~+40℃ | ||
Temperature control accuracy | ± 1 ℃ | ± 2 ℃ | |
Maximum preparation capacity | 2000ml×4 | 1000ml×4 | 750ml×4 |
Overall noise | ≦65dB(A) | ||
Power source | AC220V 50HZ 30A | ||
Total power | 6.0KW | 5.0KW | 1.7KW |
External dimensions (L×W×H) | 750×880×1250(mm) | 700×590×810(mm) | |
Outer packaging dimensions (L × W × H) | 830×980×1500(mm) | 710×630×860(mm) | |
Weight | 300kg | 142kg |
