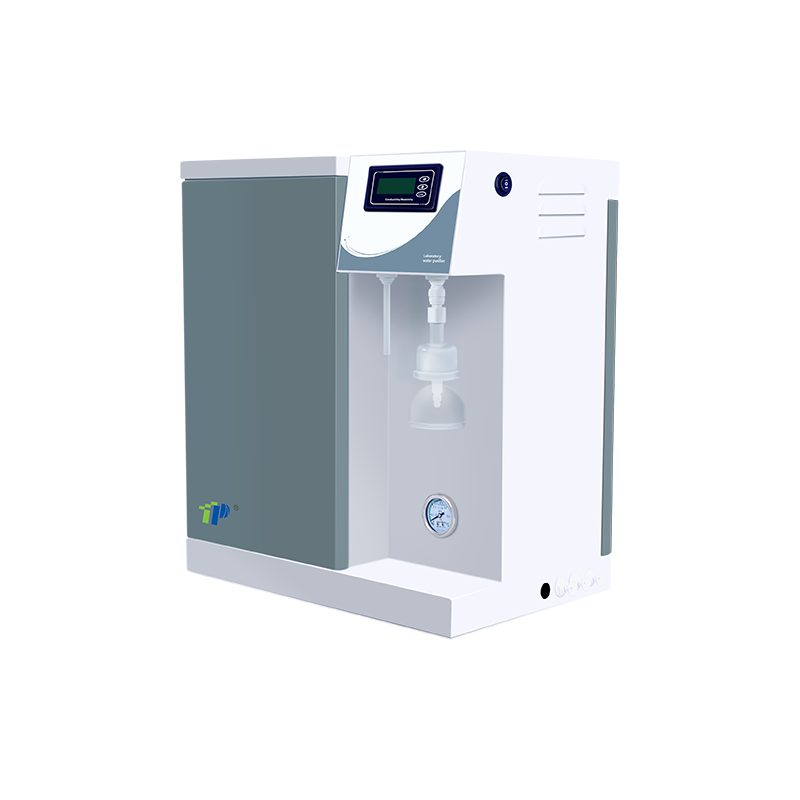

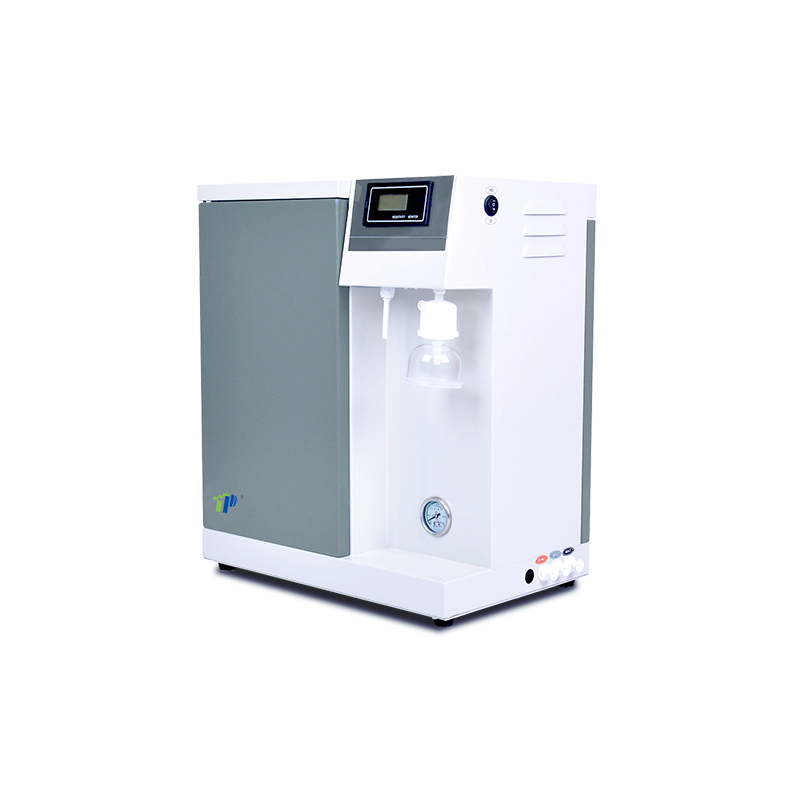

High-Quality Laboratory Ultrapure Water System with RO Membrane & Online Water Quality Monitoring, 10-30 L/H

Water production rate: 10/20/30 liters per hour
Ion rejection rate: 97%-99% (new RO membrane)
UP water quality: Resistivity 18.25 MΩ·cm @ 25℃, TOC <10 ppb (standard), <3 ppb (low TOC model)
Features online water quality monitoring, double water intake (RO & UP water)
Automatic RO membrane anti-scaling flushing and multiple automatic water control functions
Easy maintenance with Korean quick-insert filters and tool-free replacement design
Equipped with 12L pressurized water storage tank and portable TDS pen

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • P-UPW series

  • TOP

Feature:

  • Applicable to various water quality, the case is with powder coating.

  • The filter element adopts open mold injection technology and inside the machine

  • Korean quick-insert filter column is easy to replace and maintain.

  • The electrical appliance and waterways are completely separated to avoid circuit

  • failure caused by moisture and water leakage.

  • Online water quality monitoring system, immediately measure the output water quality.

  • Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stop, storage tank automatically fill water, automatic stopping when water is full.

  • NSF certified pipeline has function of upgrading water quality and quantity.

  • Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.

  • Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring.

  • Open door at front and back, this make filters replacement easy&convenient, the replacement can be easily completed without using any tools.

  • Double water intakes: RO water and UP water

P-UPW series ultrapure water machine

Type classification

Standard

Low Endotoxin

Low TOC

Comprehensive

The machine model

P-UPW

P-UPW-F

P-UPW-V

P-UPW-VF

Water rate

10/20/30 lph

The water requirements

Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃

RO water Parameter

Ion rejection rate

97%-99% (when using a new RO membrane)

Organic matter rejection rate

>99% when MW>200 Dalton

Particle and bacterial rejection

> 99%

UP water Parameter(ASTM TYPE I grade water)

Resistivity (25℃)

18.25 M Ω. Cm @ 25 ℃

Heavy metal ion

< 0.01 ppb

Total organic carbon (TOC) *

<10 ppb

<3 ppb

bacteria

< 1 cfu/ml *(with terminal filter)

Particulate matter (> 0.1 microns)

<1/ml

Pyrogen (endotoxin)

N/A

< 0.001 Eu/ml

N/A

< 0.001 Eu/ml

Ribonuclease (RNases)

N/A

<1pg/ml

N/A

<1pg/ml

Deoxyribonucleases

N/A

<5pg/ml

N/A

<5pg/ml

Application

All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

Electrical requirements

100-240V, 50/60Hz, 48-72W

The system configuration

Host machine (including 1 set of purification column)+12L pressure water storage tank +TDS pen + accessory bag
