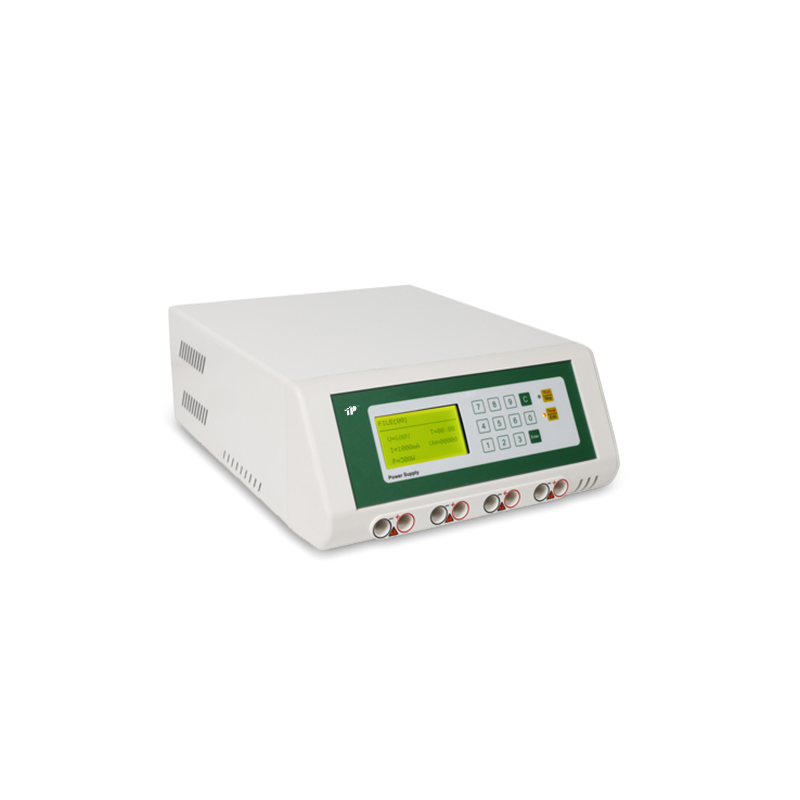

High-Precision TP Series Electrophoresis Power Supply – Constant Voltage/Current/Power Control, Multi-Program Memory
Output Type: Constant Voltage, Constant Current, or Constant Power
Voltage Range: 10–3000 V (depending on model: TP1000E, TP1600E, TP3000E)
Current Range: 1–1000 mA (model-dependent)
Power Range: 1–400 W
Timer & V-hr Function: 1 min–99 hr 59 min; 1–99999 V-hr
Memory: Stores up to 100 electrophoresis methods with step-by-step programming
Safety & Diagnostics: Automatic detection of overload, short circuit, no-load, ground leak, and overheating
Voltage Range: 10–3000 V (depending on model: TP1000E, TP1600E, TP3000E)
Current Range: 1–1000 mA (model-dependent)
Power Range: 1–400 W
Timer & V-hr Function: 1 min–99 hr 59 min; 1–99999 V-hr
Memory: Stores up to 100 electrophoresis methods with step-by-step programming
Safety & Diagnostics: Automatic detection of overload, short circuit, no-load, ground leak, and overheating
| Quantity: | |
|---|---|
-
TP1000E, TP1600E, TP3000E
-
TOP
Characteristic features
• Touch keys, dual core microprocessorintelligent control;
• 0-9 digital button, make the operation more simple andconvenient;
• Indicate the preset value and the actual output value at the same time;
• It can store 100 electrophoresis methods;
• With automatic memory function;
• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
• With a pause control function (including real-time tuning)
• With standard, timing, V-hr, step-by-step operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
Characteristic features
• Touch keys, dual core microprocessorintelligent control;
• 0-9 digital button, make the operation more simple andconvenient;
• Indicate the preset value and the actual output value at the same time;
• It can store 100 electrophoresis methods;
• With automatic memory function;
• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
• With a pause control function (including real-time tuning)
• With standard, timing, V-hr, step-by-step operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
