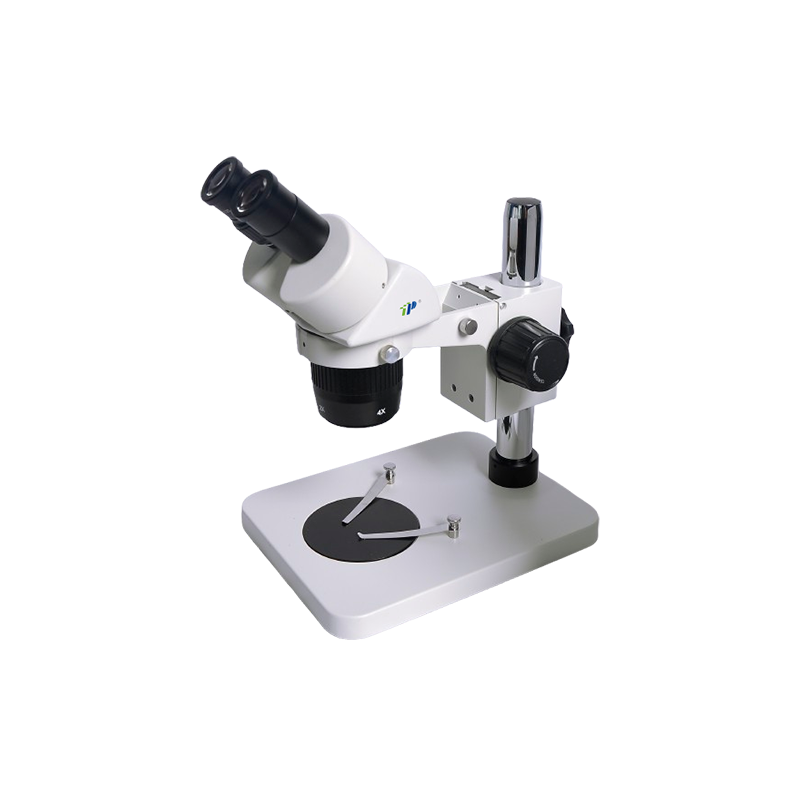

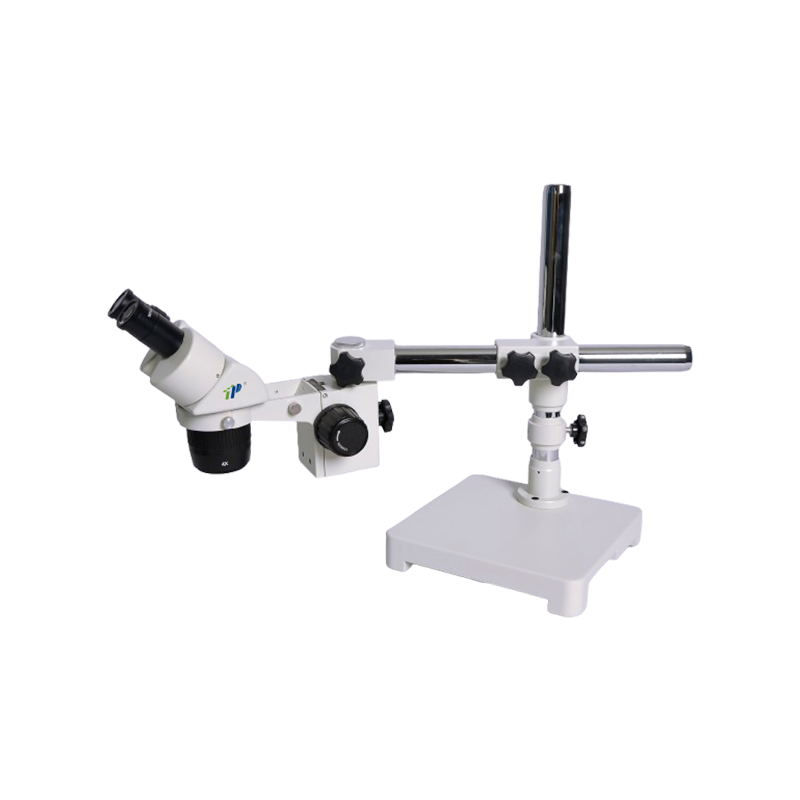

High-Precision Stereo Zoom Microscopes with 10X–80X Magnification for Industrial And Educational Use

Eyepieces Available: WF10X/20, WF15X/15, WF20X/10
Objectives: 1x / 2x / 3x / 4x switchable
Total Magnification: 10x to 80x depending on eyepiece and objective combination
Field of View: Ranges from 20mm (WF10X/1x) to 2.5mm (WF20X/4x)
Working Distance: Long 100mm for wide sample compatibility
Viewing Head: Binocular observation head
Applications: Ideal for precision inspection, industrial quality control, and educational use

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • T series

  • TOP

Detailed Description:

Barrel: 45 degrees tilt, 360 degrees rotation binocular head, pupil distance adjustment range 55-75mm, monocular vision adjustable adjustment range plus or minus 5 diopters

Eyepieces: use high eye point wide angle eyepieces, for the convenience of the observer wearing eyes. Conveniently switchable variable-pitch objectives, 2x/4x, 1x/2xand 1x/3x.

Working Distance:Extra long working distance up to 100mm, providing users with more working space.

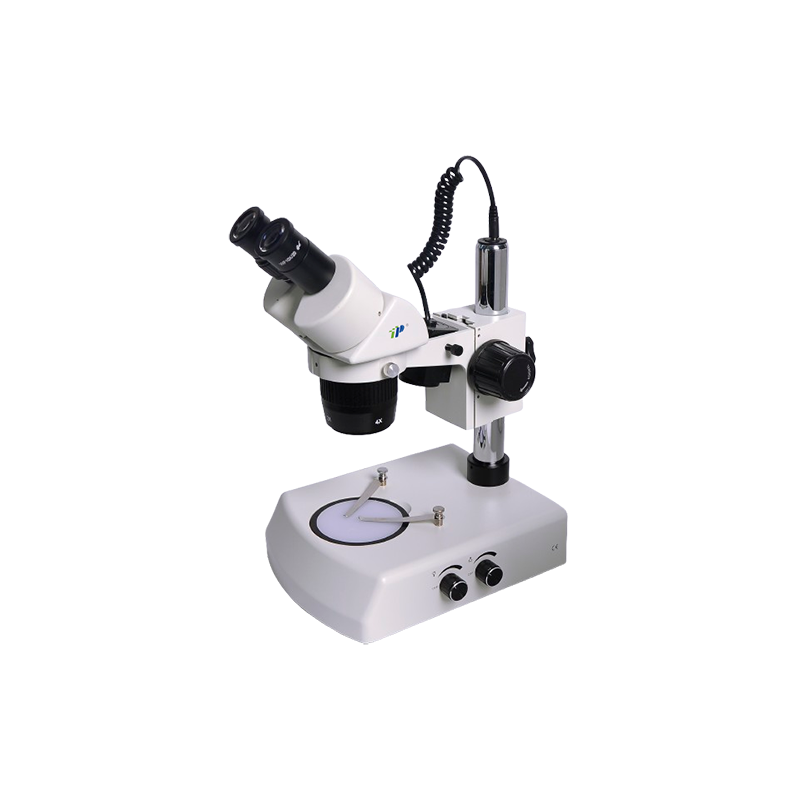

Field of view light source:Various types of electric illumination systems, built-in halogen lamp illumination and external ring fluorescent lamp.LED lamp illumination.

Focusing Mechanism:Focusing handwheel loosely or tightly adjustable, lifting range 49mm.


Objective

Eyepiece

WF10X/20

WF15X/15

WF20X/10

working distance

magnification

view field

magnification

view field

magnification

view field

1x

10x

20mm

15x

15mm

20x

10mm

100mm

2x

20x

10mm

30x

7.5mm

40x

5mm

3x

30x

7.5mm

45x

5mm

60x

3.3mm

4x

40x

5mm

60x

3.3mm

80x

2.5mm
