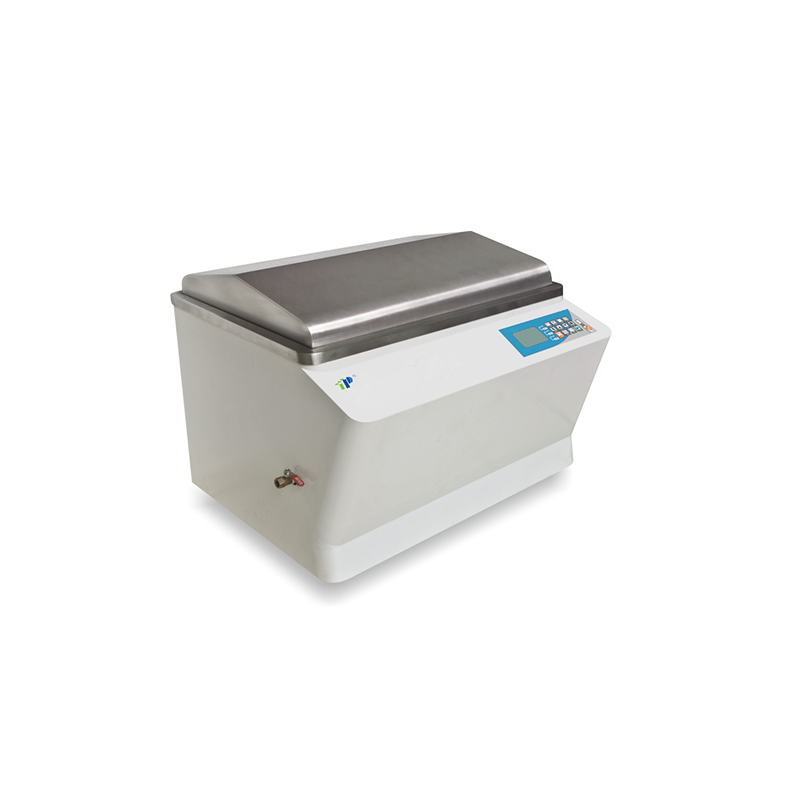

High-Precision Laboratory Shaker PNY-301/302/303 – Convolution, Reciprocating & Cyclotron Shakers with Temperature Control up to 100°C

Shake models: Convolution, Cyclotron/Reciprocating, Reciprocate
Speed range: 0–300 rpm, high-precision PID control ±1 RPM
Temperature range: Ambient to 100°C, accuracy ±0.1°C, uniformity ≤0.1°C
Platform size: 498×316 mm, max capacity: 100 mL×24 / 250 mL×15 / 500 mL×11 / 1000 mL×6
Programmable control: Multi-step speed, temperature, time; slow-start & stop design
Display: LCD, with memorized parameters, encryption & power outage recovery
Optional features: UV/lighting function, continuous or timed operation

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PNY-301, PNY-302, PNY-303

  • TOP

  • High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.

  • Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.

  • Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments

  • Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.

  • High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM

  • High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,

  • Unique drive system. It makes the machine running smoothly, stably, durably and reliably.

  • LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.

  • Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.

  • Function of encrypted and locked operating parameters. It can avoid human errors.

  • Continuously running or timing. Shakers can display the set time and time remaining

  • Clock and date can be displayed (touch screen only).

(Model)

PNY-301

PNY-302
PNY-303

(Specifications)

Control model

P.I.D microprocessor chip

Shake model

Convolution

Cyclotron, reciprocating

Reciprocate

Display

LCD liquid-crystal display

Drive mode

Multidimensional drive

Track drive

Control system

Multiple Programmable mode(temp,speed,time)

Cyclotron frequency range(rpm/min)

0;20-300(To do static culture)

Cyclotron frequency sensitivity(rpm)

±1

Orbit Diameter(mm)

Φ26

Φ26 OR 26

26

Maximum capacity

100ML×24 OR 250ML×15 OR 500ML×11 OR 1000ML×6

100ML×24 OR 250ML×15 OR 500ML×11 OR 1000ML×6

Standard capacity

Spring net box

Size of platform(mm)

498×316

Timing range

0-9999h/min(Any time,continuous duty)

Temperature range(℃)

ambient Cto 100°C(No refrigeration)

Temperature sensitivity(℃)

±0.1

Temperature uniformity(℃)

≤0.1

Number of platform

One

Outside dimension(W*D*H)(mm)

640×620×550

Power(W)

1400W

Power supply

AC220±10%   50HZ

Net weight(kg)

70

9070

Gross weight(kg)

90

11090

Other functions

Ultra-low speed start, Adjustable start speed, Overspeed auto-prtection, Watch dog timer, Parameters Storage, Encryption parameters, Electricity incoming recovery,  Function of lighting and UV disinfection (optional)
