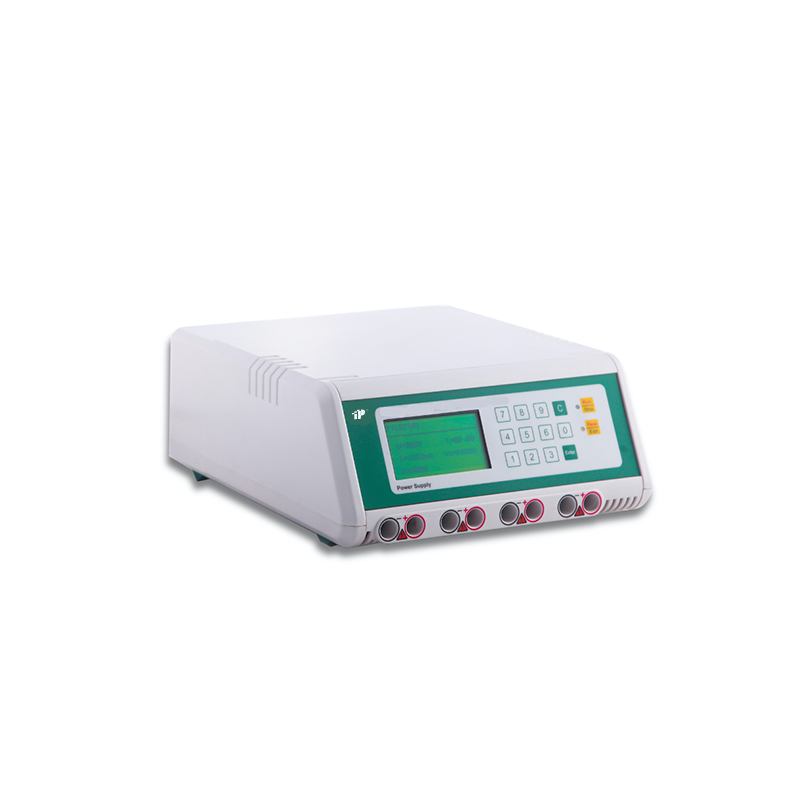

High-Precision Electrophoresis Power Supply with Programmable Control | TP300E / TP300HE / TP600E
Output Type: Constant Voltage / Constant Current / Constant Power
Output Range: 5–300V, 1–400mA, 1–120W (TP300E); 5–300V, 1–1500mA, 1–450W (TP300HE); 10–600V, 1–500mA, 1–300W (TP600E)
Increment Setting: 1V, 1mA, 1W
Timer Range: 1 min to 99 hr 59 min; V-hr Range: 1–99999 V-hr
Display: Backlit LCD showing preset & actual values simultaneously
Memory & Programs: Stores 100 methods; step-by-step control with up to 10 linked programs
Output Jacks: Four sets
Output Range: 5–300V, 1–400mA, 1–120W (TP300E); 5–300V, 1–1500mA, 1–450W (TP300HE); 10–600V, 1–500mA, 1–300W (TP600E)
Increment Setting: 1V, 1mA, 1W
Timer Range: 1 min to 99 hr 59 min; V-hr Range: 1–99999 V-hr
Display: Backlit LCD showing preset & actual values simultaneously
Memory & Programs: Stores 100 methods; step-by-step control with up to 10 linked programs
Output Jacks: Four sets
| Quantity: | |
|---|---|
-
TP300E, TP300HE, TP600E
-
TOP
• Molding shell, touch keys, dual core microprocessor
intelligent control;
• 0-9 digital button, make the operation more simple and convenient;
• Indicate the preset value and the actual output value at the same time;
• It can store 100 electrophoresis methods;
• With automatic memory function;
• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
• With a pause control function (including real-time tuning)
• With standard, timing, V-hr, step-by-step operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
• Molding shell, touch keys, dual core microprocessor
intelligent control;
• 0-9 digital button, make the operation more simple and convenient;
• Indicate the preset value and the actual output value at the same time;
• It can store 100 electrophoresis methods;
• With automatic memory function;
• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
• With a pause control function (including real-time tuning)
• With standard, timing, V-hr, step-by-step operation function;
• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
