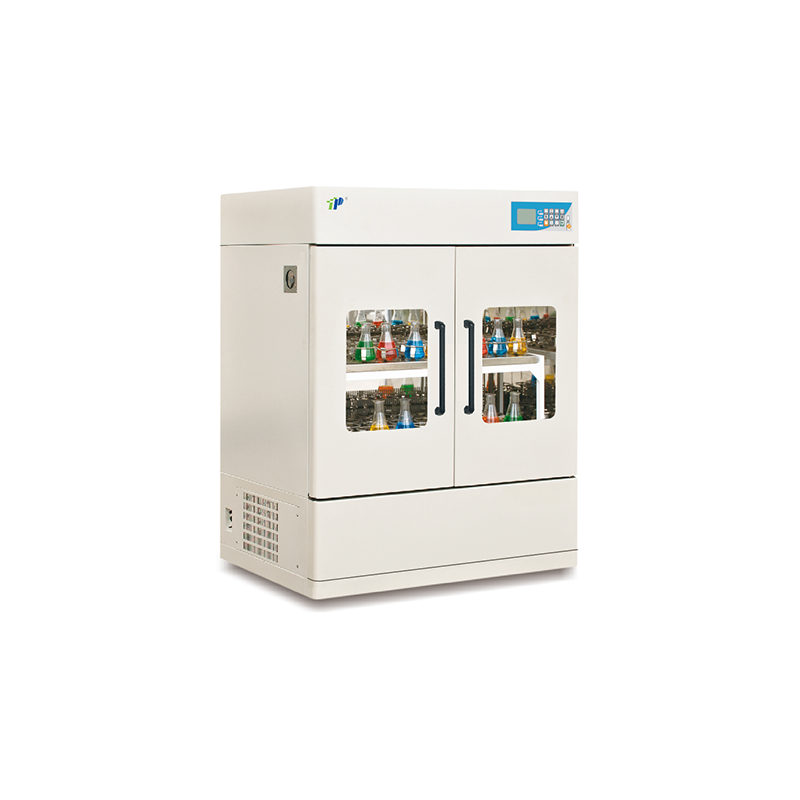

High-Capacity Dual-Platform Temperature-Controlled Incubator Shaker, 580L, PID Precise, Programmable Convection Shaker for Laboratory Flask Cultures

Temperature range: 4°C to 65°C, high-precision PID control, ±0.1°C sensitivity, ±0.5°C uniformity (37°C)
Shake modes: Convolution or Reciprocating, cyclotron speed 0–280/260 rpm, ±1 rpm accuracy
Dual platforms: 950×550 mm, accommodating up to 250 mL×90, 500 mL×72, or 1000 mL×42 flasks
Programmable control: Temperature, speed, and time with multiple-step settings and auto conversion
LCD touch screen display: Real-time monitoring, clock/date, parameter storage, and encrypted settings
Safety & stability: Slow-start design, door-stop protection, overspeed auto-protection, UV & lighting optional
Power & capacity: 1400 W, total volume 580 L, net weight 450–500 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PNYC-2112 series

  • TOP

  • Automatic analyzing, listing table, charting and printing on downloaded dates. It can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.

  • High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.

  • Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.

  • Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.

  • Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.

  • Automatic defrosting function. It makes shakers operating stably in low temperature for a long time.

  • High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM

  • High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,

  • Unique drive system. It makes the machine running smoothly, stably, durably and reliably.

  • LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.

  • Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.

  • Function of encrypted and locked operating parameters. It can avoid human errors.

  • Continuously running or timing. Shakers can display the set time and time remaining

  • Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments

  • Clock and date can be displayed (touch screen only).

(Model)

PNYC-2112B

PNYC-2112F

(Specifications)

Control model

P.I.D microprocessor chip

Convection model

Forced convection


Shake model

Convolution

Reciprocate

Display

7 Inch  touch screen

Drive mode

Multidimensional drive

Control system

Multiple Programmable mode(temp,speed,time)

                     Cyclotron frequency range(rpm/min)

0,20-280(To do static culture)

0,30-260(To do static culture)

Cyclotron frequency sensitivity(rpm)

±1

Orbit Diameter(mm)

Φ26

0-50

Maximum capacity

250ML×90 OR 500ML×72 OR 1000ML×42

Standard capacity

250ml×45  500ml×36

Size of platform(mm)

950×550

Timing range(h)

0-999.9(Any time,continuous duty)

Temperature range(℃)

4°Cto 65°C( refrigeration)

Temperature regulate sensitivity(℃)

±0.1

Temperature uniformity(℃)

±0.5(37℃)

Temperature uniformity(℃)

≤0.1(37℃)

Number of platform

TWO

Outside dimension(W*D*H)(mm)

1200×800×1630

Capacity(L)

580

Power(W)

1400

Power supply

AC220±10%  50HZ

Net weight(kg)

450

500

Gross weight(kg)

520

570

Other functions

Ultra-low speed start, Adjustable start speed,Overspeed auto-prtection,Watch dog timer,Parameters Storage,Encryption parameters,Electricity incoming recovery,Refrigeration unit overload protection,Sound and light alarm when upper and lower overtemperature,Automatically stop when opening the door (optional),Function of lighting and UV disinfection
