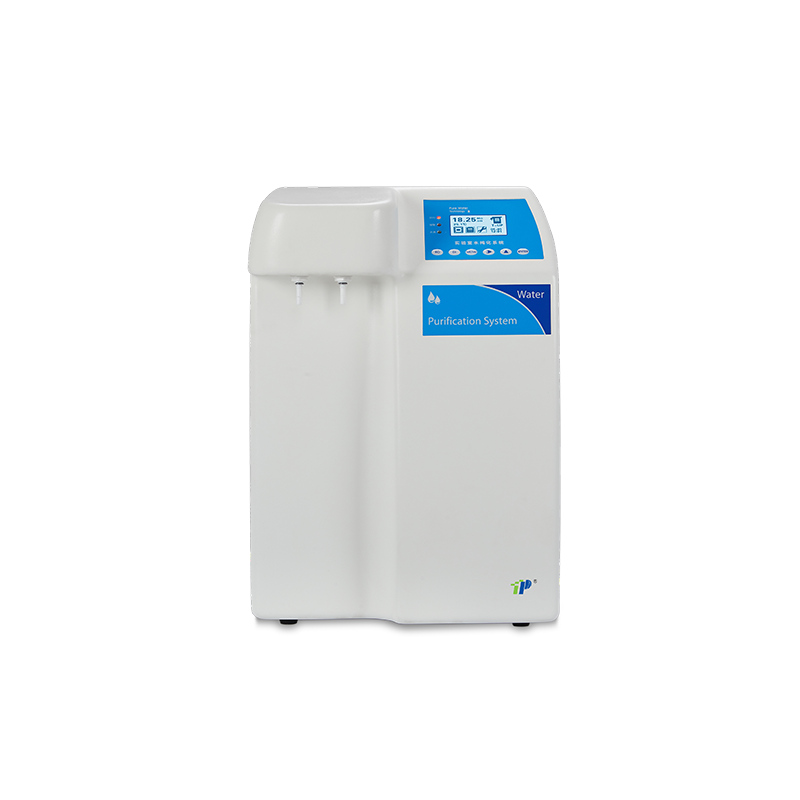

Compact RO+DI Laboratory Water Purification System | 15–30L/H Output | 18.25MΩ·cm Deionized Water
Output-RO waterx: 15L/30L/Hour (Depend on models)
Output-DI water: Up to 2.0L/Min(When tank is full)
Feed water requirements: Tap water:conductivity<400μs,5-45℃,1.0-4.0Kgf/cm² (When TDS>400μs,optional pretreatment is suggested)
Resistivity (25℃): 16-18.25MΩ.cm
Output-DI water: Up to 2.0L/Min(When tank is full)
Feed water requirements: Tap water:conductivity<400μs,5-45℃,1.0-4.0Kgf/cm² (When TDS>400μs,optional pretreatment is suggested)
Resistivity (25℃): 16-18.25MΩ.cm
| Quantity: | |
|---|---|
-
PDT-Q Series
-
TOP
| Product model | PDT-Q15 | PDT-Q15UT | PDT-Q30 | PDT-Q30UT |
| Output-RO waterx | 15L/Hour | 15L/Hour | 30L/Hour | 30L/Hour |
| Output-DI water | Up to 2.0L/Min(When tank is full) | |||
| Feed water requirements | Tap water:conductivity<400μs,5-45℃,1.0-4.0Kgf/cm² (When TDS>400μs,optional pretreatment is suggested) | |||
| DI Deionized water quality | ||||
| Resistivity (25℃) | 16-18.25MΩ.cm | |||
| Heavy metal ion | <0.01ppb | |||
| Bacteria | N/A | <0.01cfu/ml | N/A | <0.01cfu/ml |
| Particle(>0.22μm) | N/A | <1/ml | N/A | <1/ml |
| RO water quality | ||||
| Ion rejection rate | >98%(New RO membrane) | |||
| Organic rejection rate | >99%,when MW>200 Dalton | |||
| Partides and bacteria rejection rate | >99%,when MW>200 Dalton | |||
| Dimension and weight | Width×Depth×Height:365×525×545mm/Weight:about 23Kg | |||
| Electrical requirements | 100-240V,50/60Hz | |||
| Power | 72W/120W | |||
| Standard configuration | Main system(including 1 fullset of cartridges)+built-in tank+accessories bag | |||
| The valuewill be influenced by temperature and feedwater's quality. | ||||
| Product model | PDT-Q15 | PDT-Q15UT | PDT-Q30 | PDT-Q30UT |
| Output-RO waterx | 15L/Hour | 15L/Hour | 30L/Hour | 30L/Hour |
| Output-DI water | Up to 2.0L/Min(When tank is full) | |||
| Feed water requirements | Tap water:conductivity<400μs,5-45℃,1.0-4.0Kgf/cm² (When TDS>400μs,optional pretreatment is suggested) | |||
| DI Deionized water quality | ||||
| Resistivity (25℃) | 16-18.25MΩ.cm | |||
| Heavy metal ion | <0.01ppb | |||
| Bacteria | N/A | <0.01cfu/ml | N/A | <0.01cfu/ml |
| Particle(>0.22μm) | N/A | <1/ml | N/A | <1/ml |
| RO water quality | ||||
| Ion rejection rate | >98%(New RO membrane) | |||
| Organic rejection rate | >99%,when MW>200 Dalton | |||
| Partides and bacteria rejection rate | >99%,when MW>200 Dalton | |||
| Dimension and weight | Width×Depth×Height:365×525×545mm/Weight:about 23Kg | |||
| Electrical requirements | 100-240V,50/60Hz | |||
| Power | 72W/120W | |||
| Standard configuration | Main system(including 1 fullset of cartridges)+built-in tank+accessories bag | |||
| The valuewill be influenced by temperature and feedwater's quality. | ||||
