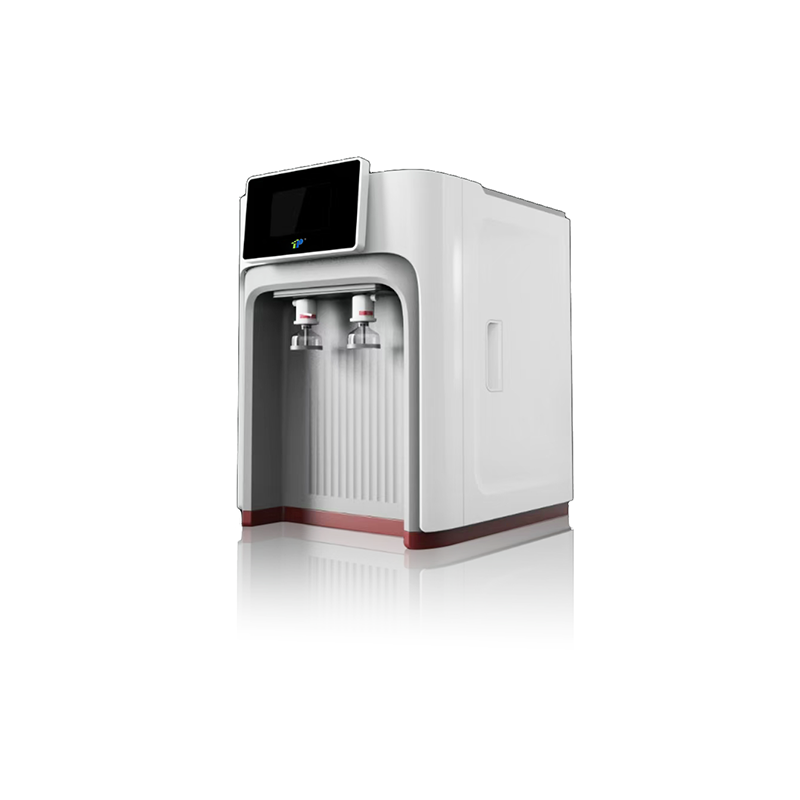

PK series
TOP
Design of movable floating touch color screen
Animated system operation interface, intelligent, clear and agile
Adopting imported Dow, DOW RO membrane
Imported mixed bed resin ensures water production reaches 18.2MQ.CM, extending equipment stability during use
Multi channel water quality and temperature
Real time monitoring of fully automated system
Timed and quantitative water intake, fault alarm self inspection
Adopting an eight level filtration and purification system, with anti-counterfeiting design and internal spiral pattern processing to increase compressive strength
Adopting an eight stage filtration and purification system to improve water quality
Supporting professional grade cone-shaped PE pure water tank with built-in air filter
Can adsorb CO2 and organic matter, filter bacteria and particles, etc.
Optional UV disinfection
Module, sterilize and inhibit bacterial growth in the water tank
Design of movable floating touch color screen
Animated system operation interface, intelligent, clear and agile
Adopting imported Dow, DOW RO membrane
Imported mixed bed resin ensures water production reaches 18.2MQ.CM, extending equipment stability during use
Multi channel water quality and temperature
Real time monitoring of fully automated system
Timed and quantitative water intake, fault alarm self inspection
Adopting an eight level filtration and purification system, with anti-counterfeiting design and internal spiral pattern processing to increase compressive strength
Adopting an eight stage filtration and purification system to improve water quality
Supporting professional grade cone-shaped PE pure water tank with built-in air filter
Can adsorb CO2 and organic matter, filter bacteria and particles, etc.
Optional UV disinfection
Module, sterilize and inhibit bacterial growth in the water tank
Parameter | Physicochemical Analysis Type | Pytrogen Removal Type | Low Organic Type | Comprehensive Premium Type |
Model | PK-10/20/30/40 | PK-10/20/30/40UF | PK-10/20/30/40UV | PK-10/20/30/40UVF |
Water Production | 10L/H;20L/H;30L/H;40L/H | |||
Water Source | Municipal tap water, temperature 1-50°C, pressure 0.1-0.5Mpa, TDS<300ppm | |||
Max Flow Rate | 2.0L/min (when tank is full) | |||
UP Ultrapure Water Standards | ||||
Resistivity | 18.25MΩ·cm@25℃ | |||
Conductivity | 0.055μs/cm | |||
Heavy Metal Ions | <0.1 ppb | |||
TOC | 5ppb | 5ppb | 2ppb | 2ppb |
Bacteria | <0.01cfu/ml | |||
Particles (>0.2μm) | <1/ml | |||
Endotoxin | --- | <0.001Eu/ml | --- | <0.001Eu/ml |
RNases | --- | <0.01ng/ml | --- | <0.01ng/ml |
DNases | --- | <5pg/μl | --- | <5pg/μl |
RO Pure Water Standards | ||||
Conductivity | ≤5μs/cm@25℃ | |||
Ion Rejection Rate | ≥98% (with new RO membrane) | |||
Organic Rejection Rate | >99% (MW>200 Dalton) | |||
Particle & Bacteria Rejection Rate | ≥99% | |||
Dimensions | L×W×H: 450×480×600mm | |||
Weight | Approx. 22KG | |||
Power Supply | 220V, 50/60Hz | |||
Power Consumption | 240W |
Parameter | Physicochemical Analysis Type | Pytrogen Removal Type | Low Organic Type | Comprehensive Premium Type |
Model | PK-10/20/30/40 | PK-10/20/30/40UF | PK-10/20/30/40UV | PK-10/20/30/40UVF |
Water Production | 10L/H;20L/H;30L/H;40L/H | |||
Water Source | Municipal tap water, temperature 1-50°C, pressure 0.1-0.5Mpa, TDS<300ppm | |||
Max Flow Rate | 2.0L/min (when tank is full) | |||
UP Ultrapure Water Standards | ||||
Resistivity | 18.25MΩ·cm@25℃ | |||
Conductivity | 0.055μs/cm | |||
Heavy Metal Ions | <0.1 ppb | |||
TOC | 5ppb | 5ppb | 2ppb | 2ppb |
Bacteria | <0.01cfu/ml | |||
Particles (>0.2μm) | <1/ml | |||
Endotoxin | --- | <0.001Eu/ml | --- | <0.001Eu/ml |
RNases | --- | <0.01ng/ml | --- | <0.01ng/ml |
DNases | --- | <5pg/μl | --- | <5pg/μl |
RO Pure Water Standards | ||||
Conductivity | ≤5μs/cm@25℃ | |||
Ion Rejection Rate | ≥98% (with new RO membrane) | |||
Organic Rejection Rate | >99% (MW>200 Dalton) | |||
Particle & Bacteria Rejection Rate | ≥99% | |||
Dimensions | L×W×H: 450×480×600mm | |||
Weight | Approx. 22KG | |||
Power Supply | 220V, 50/60Hz | |||
Power Consumption | 240W |
