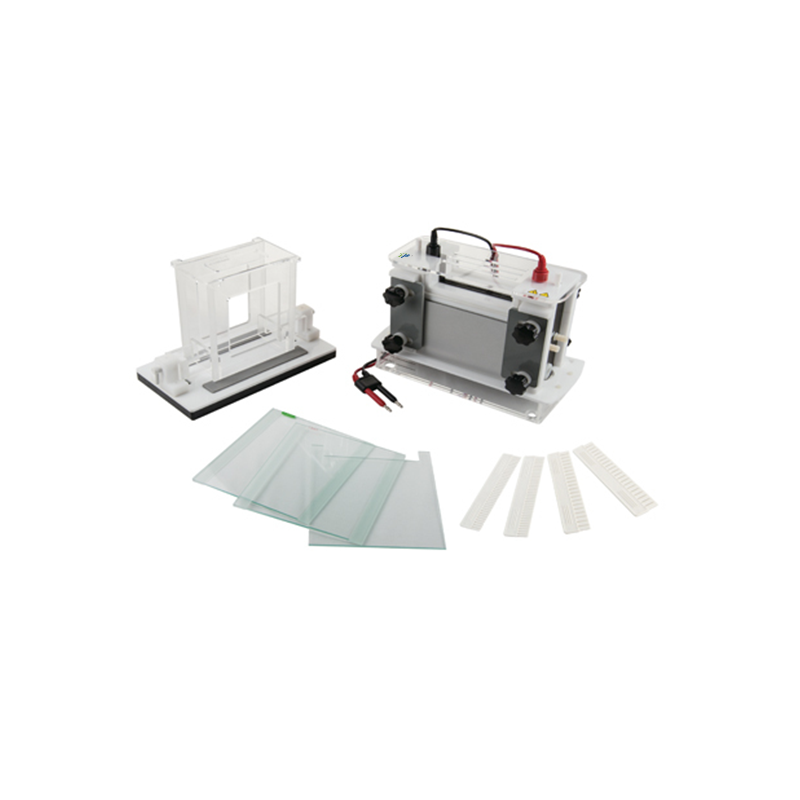

Vertical Gel Electrophoresis System TP-SCZ9 for Protein Separation, 2-Gel Capacity with Modular Core Cassettes and Temperature Control
Gel size: 120×145 mm, thickness: 1–1.5 mm
Number of comb wells: 16 or 23; Gel capacity: 2
Buffer volume: ~1200 ml; Supports outer constant temperature circulator
Modular double-hinged core cassettes for easy gel handling
Clear, straight electrophoresis strips with stable pH and uniform heat dissipation
Retractable connectors compatible with major power supplies
Auto power-off for safe operation when lid is removed
Number of comb wells: 16 or 23; Gel capacity: 2
Buffer volume: ~1200 ml; Supports outer constant temperature circulator
Modular double-hinged core cassettes for easy gel handling
Clear, straight electrophoresis strips with stable pH and uniform heat dissipation
Retractable connectors compatible with major power supplies
Auto power-off for safe operation when lid is removed
| Quantity: | |
|---|---|
-
TP-SCZ9
-
TOP
Technical Specification:
Gel Size(W×L)mm: 120×145
Gel thickness: 1,1.5(mm)
Comb wells: 16, 23
Gel capacity: 2
Buffer requirement: 1200(ml)
Features:
Intended for protein purification and analysis,ideal for the dimensional electrophoresis,DGGE and preparative gel electrophoresis.
Equipped with special processing technology aluminums plates,effectively guaranteed the heat dissipation more even,holding stable pH during electrophoresis running.
Non-proliferation electric field influence,guaranteed the electrophoresis strip more clear and straight.Modular double hinged core cassettes,matched with the basing gel caster,ensuring the whole operation process more convenient.
Retractable connectors compatible with most major power supplies.
For the temperature control, TP-SCZ8 can be connected with a outer constant temperature circulator.
Safe operation design,power can be cut off automatically when remove the lid.
Technical Specification:
Gel Size(W×L)mm: 120×145
Gel thickness: 1,1.5(mm)
Comb wells: 16, 23
Gel capacity: 2
Buffer requirement: 1200(ml)
Features:
Intended for protein purification and analysis,ideal for the dimensional electrophoresis,DGGE and preparative gel electrophoresis.
Equipped with special processing technology aluminums plates,effectively guaranteed the heat dissipation more even,holding stable pH during electrophoresis running.
Non-proliferation electric field influence,guaranteed the electrophoresis strip more clear and straight.Modular double hinged core cassettes,matched with the basing gel caster,ensuring the whole operation process more convenient.
Retractable connectors compatible with most major power supplies.
For the temperature control, TP-SCZ8 can be connected with a outer constant temperature circulator.
Safe operation design,power can be cut off automatically when remove the lid.
