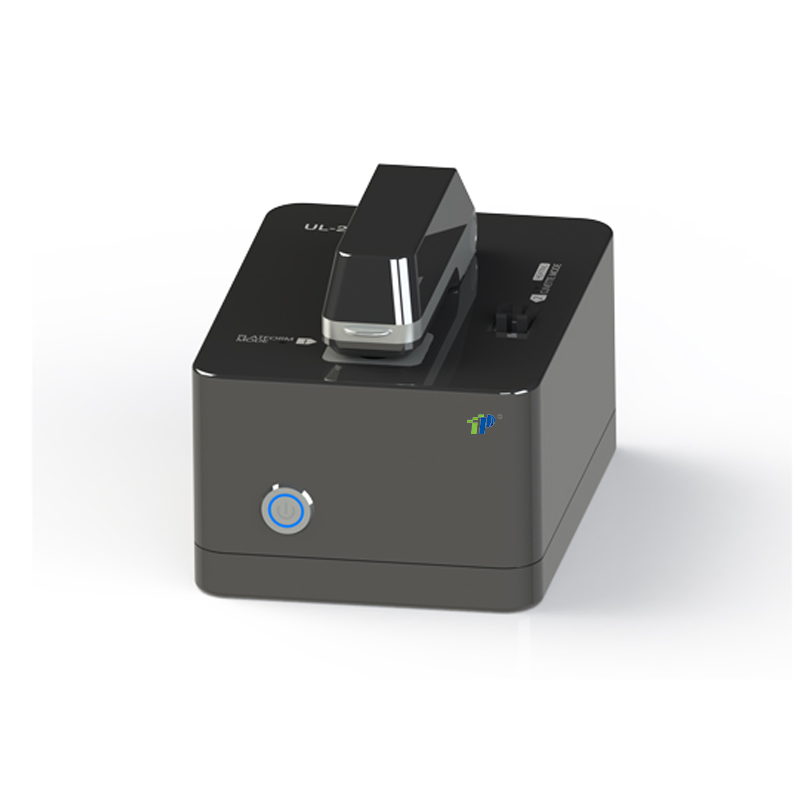

Micro-Volume UV-Vis Spectrophotometer – 190–850nm Full Wavelength, 0.5μl Sample, Dual Platform, PC Controlled

  • Model: PUL-1000N/2000N
  • Micro sample required for detection, the minimum is only 0.5μl, and the double platform of ultramicroscopy and cuvea
  • Wide detection range, 100 times higher than the upper limit of the traditional spectrophotometer
  • Ultramicropath: 1mm/0.2mm/0.05mm (Optional)
  • Wavelength coverage: 190~850nm
  • Wavelength accuracy: 1nm
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PUL-1000N/2000N

  • TOP

  • Ultraviolet-visible spectrophotometer is a very important analytical instrument, whether in physics, chemistry, biology, medicine, materials science, environmental science and other scientific research fields Or in the chemical industry, medicine, environmental testing, metallurgy and other modern production and management departments, ultraviolet-visible spectrophotometer has a wide range of important applications spectrophotometer is the use of spectrophotometry for quantitative and qualitative analysis of substances of the instrument, ultraviolet-visible spectrophotometer has become a modern molecular biology laboratory routine instrument. It is often used for nucleic acid, protein quantification and bacterial growth concentration quantification.


  • Micro sample required for detection, the minimum is only 0.5μl, and the double platform of ultramicroscopy and cuvea

  • Wide detection range, 100 times higher than the upper limit of the traditional spectrophotometer

  • For most samples, no dilution

  • No preheating, direct measurement without detection container, low daily consumption

  • Full wavelength 190-1100nm, resolution 1nm The instruments automatically give full wavelength scanning results 190-850nm compact, portable packaging to meet the needs of field inspection

  • PC control for more accurate and flexible measurement


Host

PUL-1000N

PUL-2000N

Minimum sample size

0.5μl


Ultramicropath

1mm/0.2mm

1mm/0.2mm/0.05mm (Optional)

Color cup light path


10mm/5mm/2mm/1mm

Wavelength coverage

190~850nm

Wavelength accuracy

1nm

Wavelength resolution

≤0.3nm(FWHM at Hg 253.7nm)

Lower limit of detection

2ng/uL (Double stranded DNA)

Upper detection limit

15000ng/uL(Double stranded DNA)

Protein measurement range

0.1~100mg/ml

Absorbance accuracy

2%(0.76 在 257nm)

Absorbance resolution accuracy

0.002Abs(1mm optical path)

Light absorption range

0.02~300(equivalent 10mm optical path)

0.05~300(equivalent 10mm optical path)

Accurate measurement range

0.1~5Abs.+0.1Abs 5~80 Abs.+2%

0.01~0.5Abs.+0.01Abs 0.5~80 Abs.+2%

Detector

3648 pixel linear CCD array

Sample detection platform material

304 stainless steel and quartz
