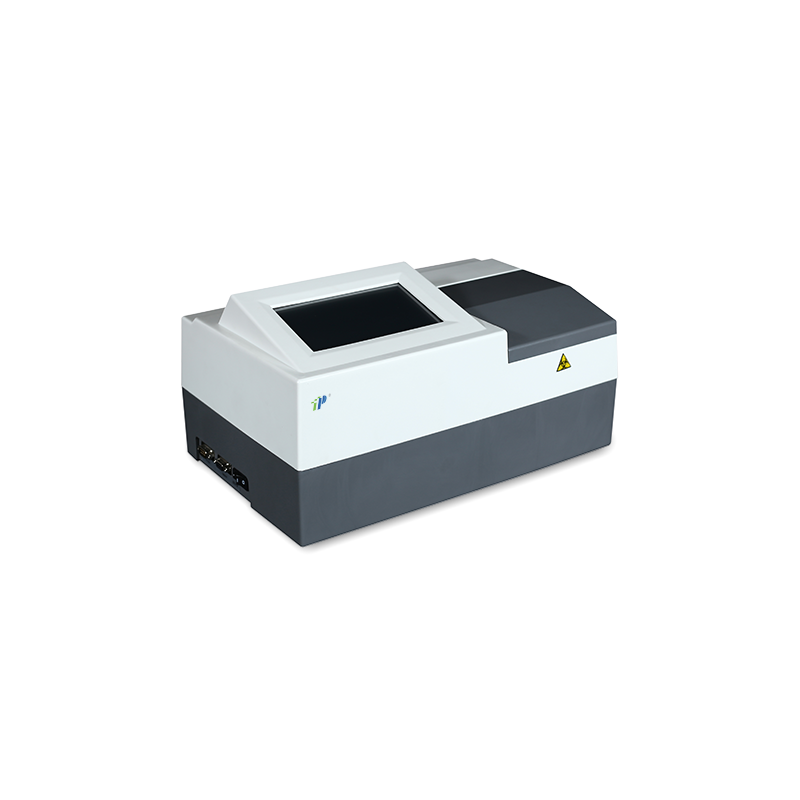

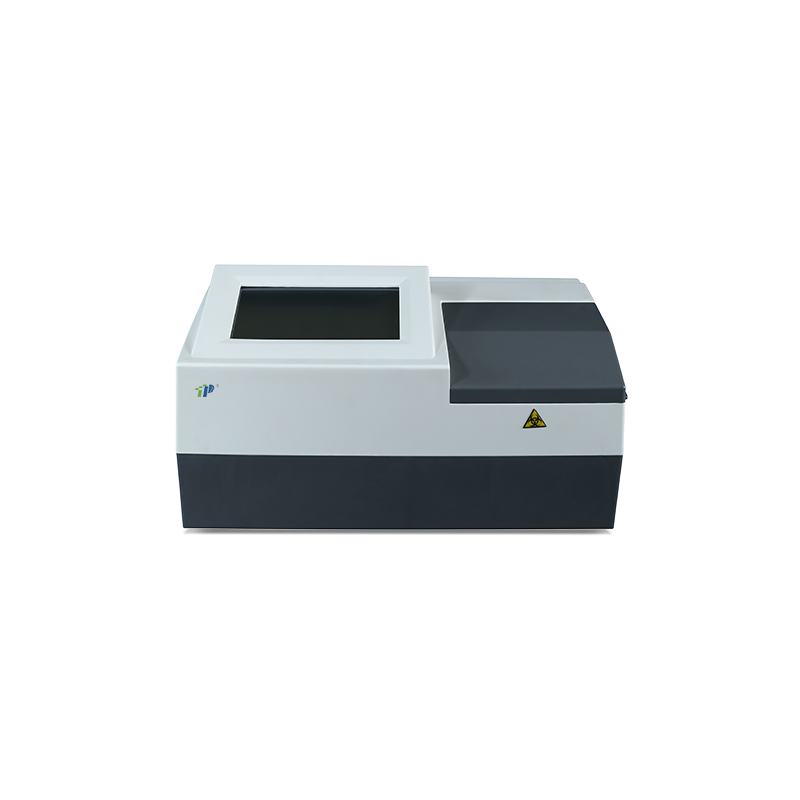

TS-1101
TOP
Main Features:
●7 inch color LCD display, touch screen operation
●Visualization of panel and visualization of panel data
●Center location, accurate data, good stability and good repeatability.
●Endpoint method, kinetic method, inhibition rate, single / dual wavelength measurement
●Wide voltage design and global power supply.
Main Features:
●7 inch color LCD display, touch screen operation
●Visualization of panel and visualization of panel data
●Center location, accurate data, good stability and good repeatability.
●Endpoint method, kinetic method, inhibition rate, single / dual wavelength measurement
●Wide voltage design and global power supply.
Machine parameters:
Lamp | DC12V 22W Tungsten halogen lamp |
Optical path | 8 channel vertical light path system |
Wavelength range | 400-1000nm (Selection 340-1100nm) |
Filter | Default configuration 405、450、492、630nm, Can be installed up to 10 filters. |
Reading range | 0-4.000Abs |
Linear range | 0-3.000Abs |
Resolution | 0.001Abs |
Accuracy | ≤±0.01Abs |
Stability | ≤±0.003Abs |
Repeatability | ≤0.3% |
Vibration plate | Three kinds of linear vibration plate function, Adjustable 0-255 seconds |
Display | 7 inch color LCD screen, display the entire board information, touch screen operation. |
Software | Professional software, Can store 200 groups program, 100000 sample results,More than10 kinds of curve fitting equation. |
Power input | DC12V 5A |
Weight | 6Kg |
Size | 400mm(L)*260mm(W)*200mm(H) |
