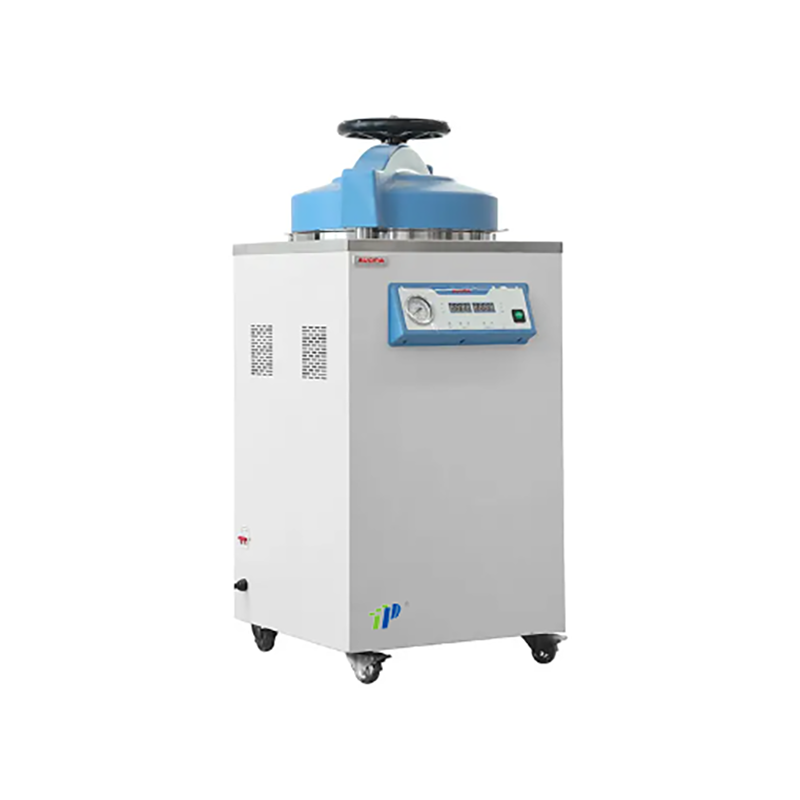

TLM-75
TOP
Product advantages
Security: Multi-level protection, safe and reliable
· Door lock safety interlock device to ensure safety
· Automatic water shortage protection, and sound and light alarm, prevent dry burning
· Pressure safety protection, over temperature and over pressure double protection
Intelligence: PID precise and intelligent control, easy to operate
· The PID temperature controller with digital display is adopted to realize precise temperature control
· Convenient operation, dynamic display, and detailed display of the current state in the sterilization process
Multiple modes: suitable for sterilization of different items
· Rapid cooling mode & natural cooling mode is suitable for the sterilization of different items
· Multiple procedure modes are suitable for sterilization of different items
Product feature
· Automatic protection function: over-temperature protection, over-pressure venting protection
· After sterilization, the buzzer will remind and the machine will stop automatically
· Microcomputer automatic control, arbitrary set sterilization parameters
· Automatically discharge cold air and steam after sterilization
· Hand wheel translation type quick opening door structure
· Low water level protection to prevent dry burning
· High quality stainless steel material
· Equipped with standard test interface
· FRP door cover anti scald protection
· Stainless steel bucket (or net basket)
· Digital display, touch button
Product advantages
Security: Multi-level protection, safe and reliable
· Door lock safety interlock device to ensure safety
· Automatic water shortage protection, and sound and light alarm, prevent dry burning
· Pressure safety protection, over temperature and over pressure double protection
Intelligence: PID precise and intelligent control, easy to operate
· The PID temperature controller with digital display is adopted to realize precise temperature control
· Convenient operation, dynamic display, and detailed display of the current state in the sterilization process
Multiple modes: suitable for sterilization of different items
· Rapid cooling mode & natural cooling mode is suitable for the sterilization of different items
· Multiple procedure modes are suitable for sterilization of different items
Product feature
· Automatic protection function: over-temperature protection, over-pressure venting protection
· After sterilization, the buzzer will remind and the machine will stop automatically
· Microcomputer automatic control, arbitrary set sterilization parameters
· Automatically discharge cold air and steam after sterilization
· Hand wheel translation type quick opening door structure
· Low water level protection to prevent dry burning
· High quality stainless steel material
· Equipped with standard test interface
· FRP door cover anti scald protection
· Stainless steel bucket (or net basket)
· Digital display, touch button
Technical data
Product Model | TLM-75 | |
Nominal working pressure | 0.22MPa | |
Rated Functioning Temperature | 134℃ | |
Temperature Range | 50~134℃ | |
Time Range | 4~120min | |
Rated voltage/frequency | AC220V/50Hz | |
Rated power | 4.5KW | |
Net Capacity | 75L | |
Sterilization chamber Dimension | ∅400X625 | |
Internal Dimension | ∅380X540 | |
Net Basket Dimension (optional) | ∅360X280X2 | |
Net weight | KG | 90 |
lbs | 198 | |
Gross weight | KG | 120 |
(lbs) | 264 | |
(LXWXH)mm | 525X525X1200 | |
Boundary Dimension | (LXWXH)In | 20X20X47 |
(LXWXH)mm | 630X680X1290 | |
Packing Dimension | (LXWXH)In | 25X27X51 |
(20'/40'/40'H) | 27/54/108 | |
Container Load | ||
Interior material | SUS304 | |
Cabinet Type | Vertical(Open up) | |
Ambient Temperature | 5~40℃ | |
Heating Type | Electric heating tube | |
Cold Air Removal Method | Gravity displacement | |
Water-Injection Method | Manual | |
Drainage Method | Manual | |
Door Opening Method | Handwheel horizontal opening | |
Safety protection | Anti-dry burning, over-pressure protection,over-temperature protection, over-current protection, sensor disconnection detection. | |
Sensor Type | PT100 | |
Controller | Microcomputer | |
Display Screen | LED | |
Accessories details | Manual, tray, stainless steel inner tube, cover, vent tube | |
